Original: $165.00
-65%$165.00
$57.75The Story

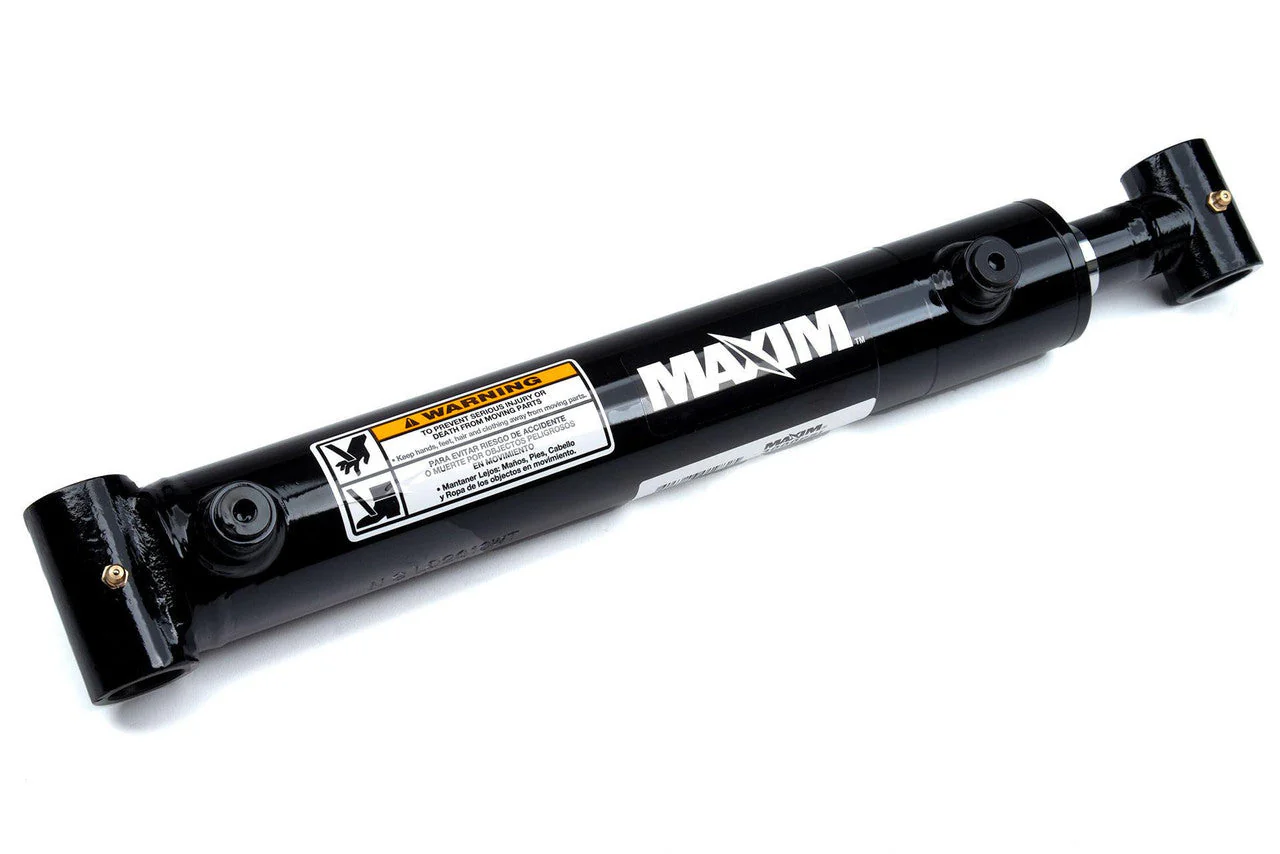

1.5” X 4” Welded Cylinder
Our 1.5” X 4” Welded Cylinder is the replacement cylinder for all Top Dog Hydraulic Snow Blades,
Specifications
Weight: 7.00 LBS
Bore: 1.5"
Stroke: 4"
PSI: 3000
Pin Hole Diameter: .78” (Fits 3/4” Pin)
Retracted dimension of center to center of pin holes: 12 in
Extended dimension of center to center of pin holes: 16 in
Rod Diameter: 1”
Fitting Size: SAE 4
Column Load: 5300 lbs
Description
1.5” X 4” Welded Cylinder
Our 1.5” X 4” Welded Cylinder is the replacement cylinder for all Top Dog Hydraulic Snow Blades,
Specifications
Weight: 7.00 LBS
Bore: 1.5"
Stroke: 4"
PSI: 3000
Pin Hole Diameter: .78” (Fits 3/4” Pin)
Retracted dimension of center to center of pin holes: 12 in
Extended dimension of center to center of pin holes: 16 in
Rod Diameter: 1”
Fitting Size: SAE 4
Column Load: 5300 lbs
