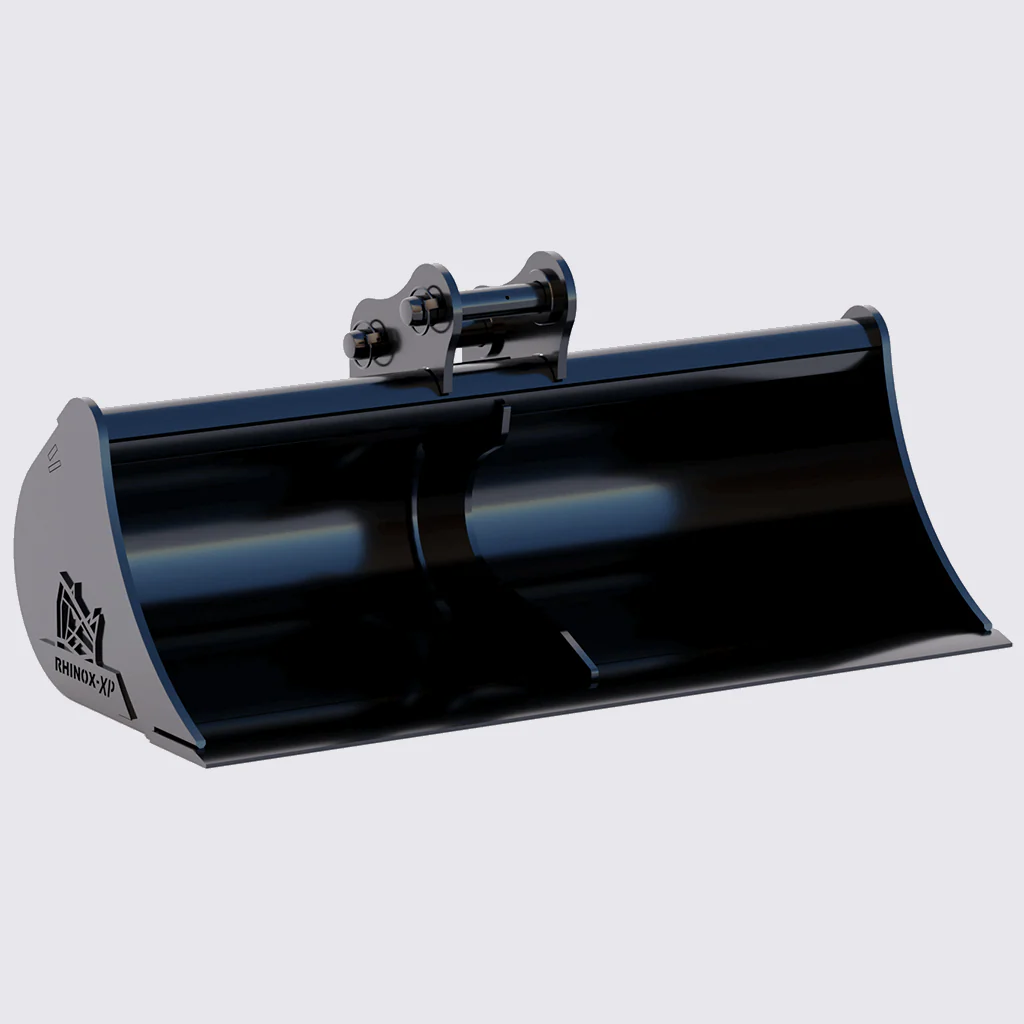

1M Grading Bucket / Ditching Bucket 36" / 900mm

This 1M Grading Bucket (36" / 900 mm) is a dedicated ditching and grading attachment designed for compact excavators. It delivers a wide, controlled cut for trenching, backfilling, and surface leveling, with precise mounting specs to keep attachment secure and aligned. Key measurements include 30 mm diameter pins, a 105 mm dipper gap, and 123 mm pin centers. For setup and usage details, refer to the video guides linked below.

• Bucket width: 36" (900 mm) working width for efficient trenching and grading in tight job sites.
• Pin diameter: 30 mm diameter pins to fit standard mounting hardware and provide reliable attachment.
• Dipper gap: 105 mm gap from the pin area to the dipper for better reach and digging angle.
• Pin centers: 123 mm spacing between pins to match common mounting configurations.
• Application: Ideal for ditching, trench shaping, and grading along utilities, drainage, and site leveling tasks.

This bucket helps you achieve cleaner ditches and more consistent ground levels with fewer passes. The 36" width provides a practical balance between coverage and control, enabling productive trenching and grading work on mid-sized projects without sacrificing maneuverability.
