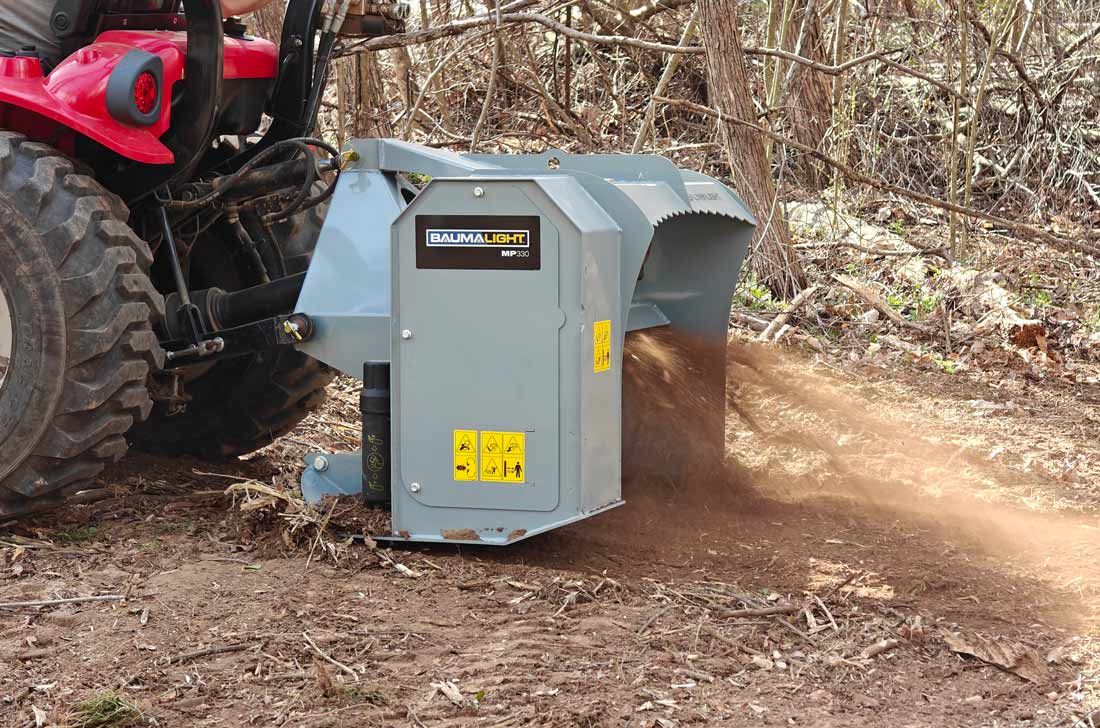

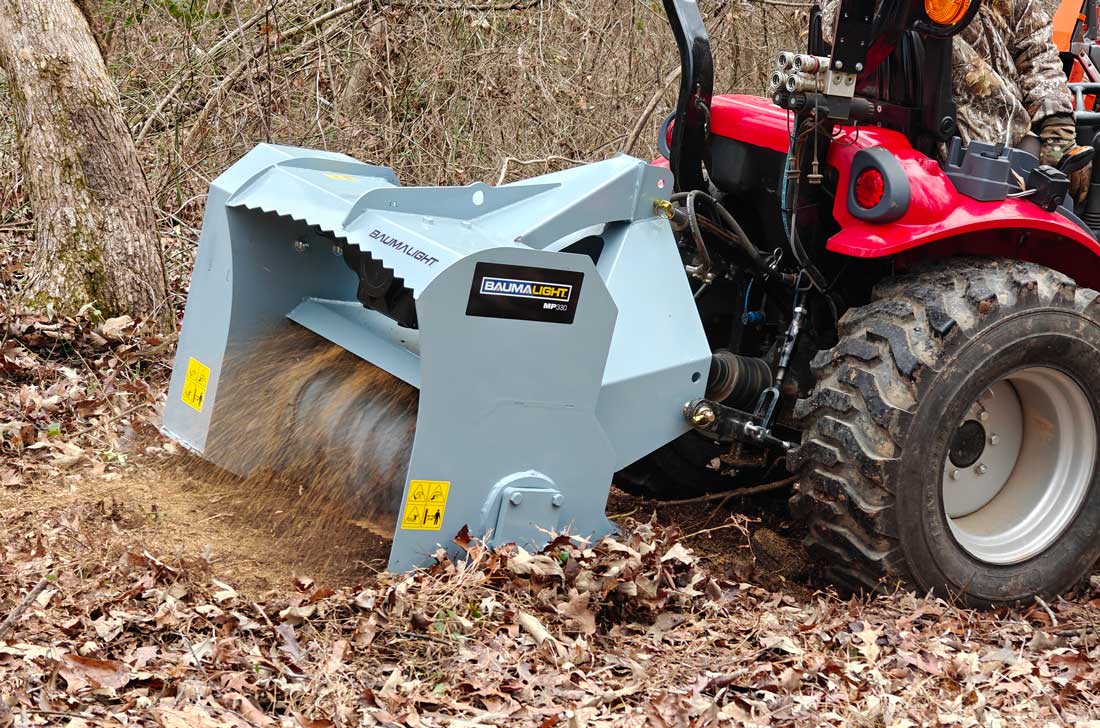

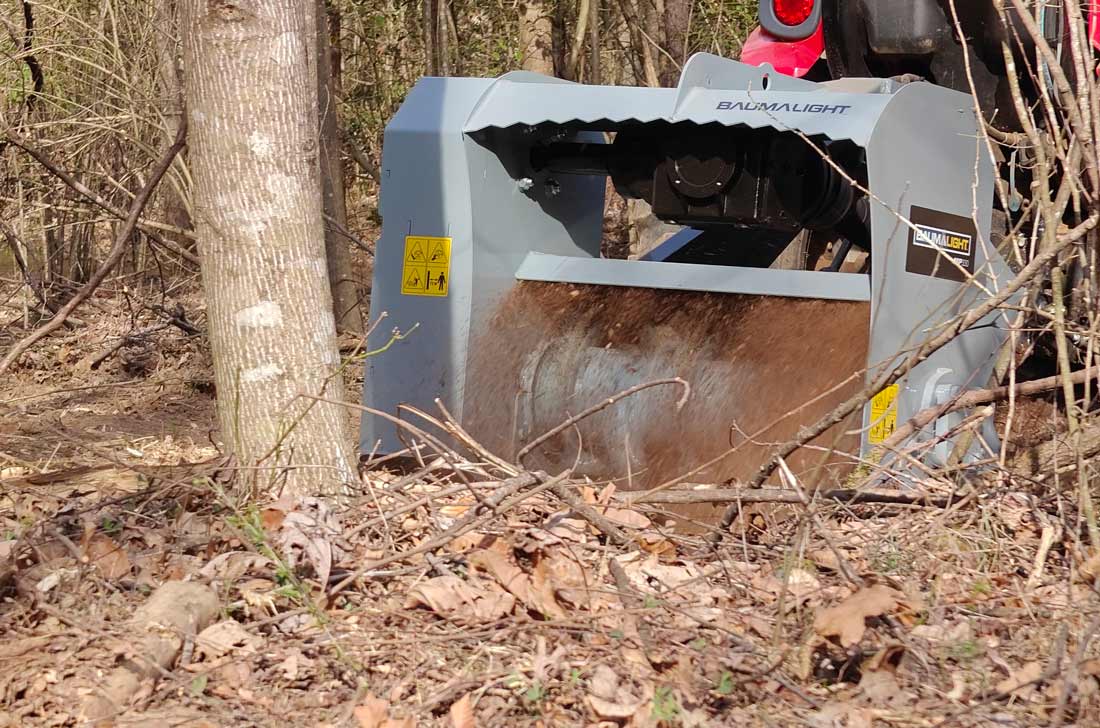

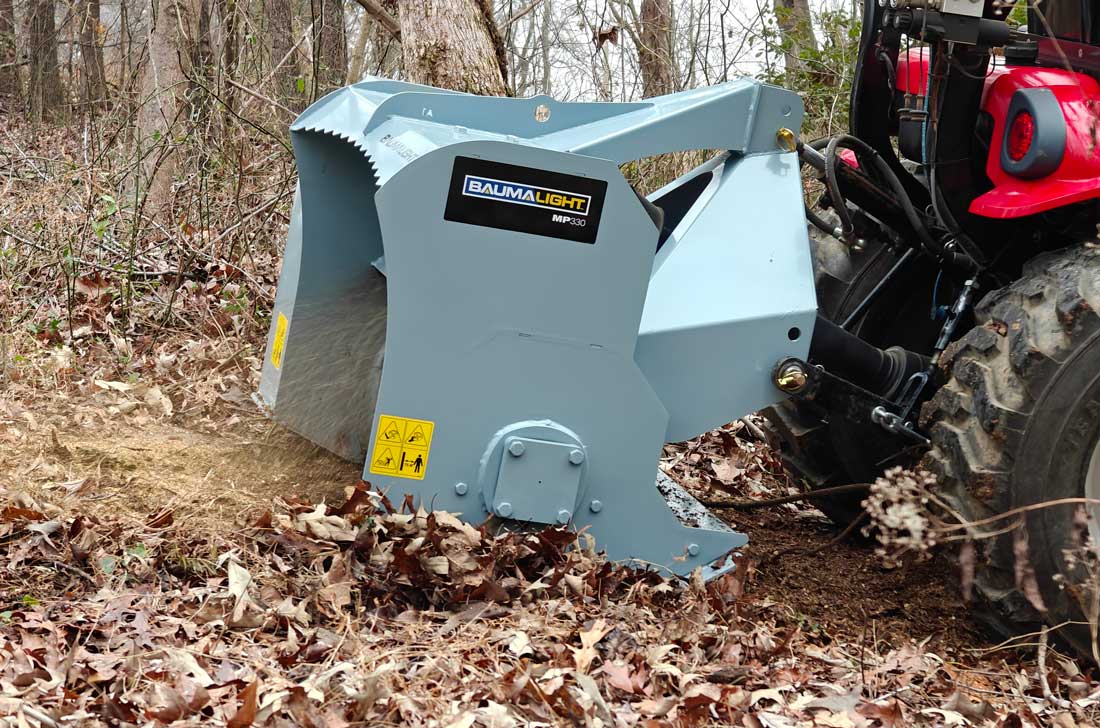

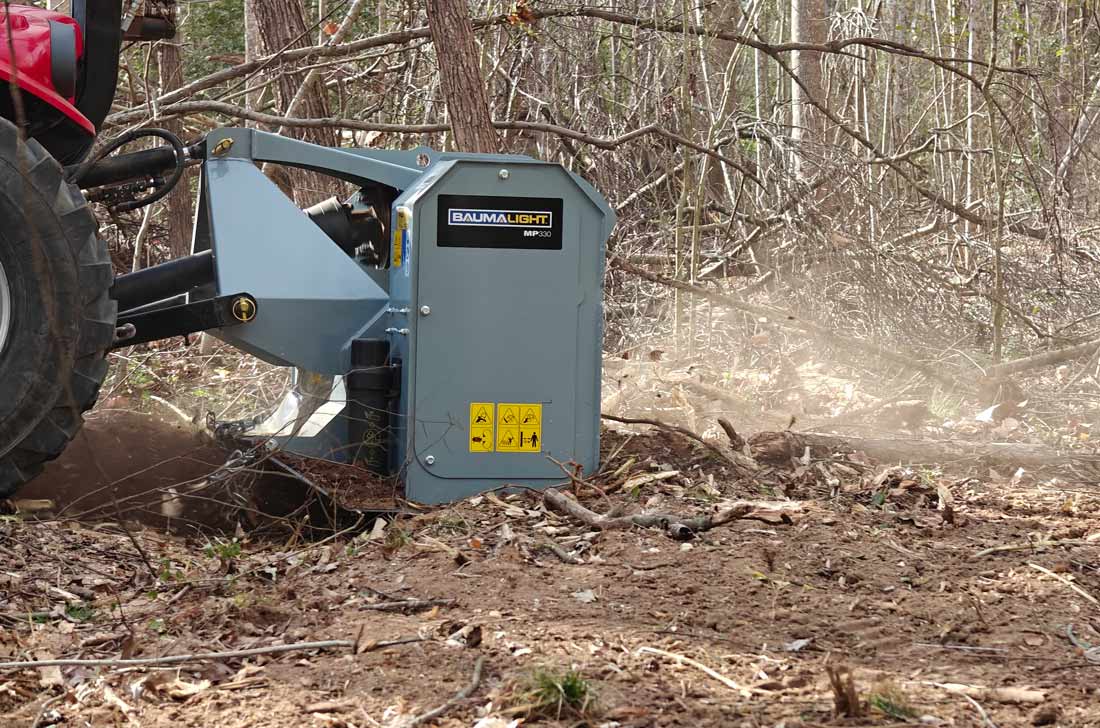

MP330 Fixed Tooth Mulcher for Power Take Off on a Tractor

The MP330 is our most light weight fixed tooth head brush mulcher for small 15-40HP 3-point hitch tractors. The concave shaped carbide tip provides aggressive brush mulching action by chipping the brush bit by bit. Part of the secret of their performance is the ease of rotating the teeth so there is always a sharp edge to make mulching easier. The spiral tooth pattern helps in one tooth at a time for smooth mulching.

The direct drive of a brush mulcher on the PTO of a tractor is the most efficient way to run a brush mulcher and if you check our brush cutting size charts you will see that the slower you can travel the bigger material you can handle. A heavy-duty reinforced timer belt delivers the force from the gear box to the rotor. To protect the gearbox and drive system, Baumalight PTO Mulchers come with a slip clutch, which automatically disengages the clutch at a torque that can be set to the horse power of your tractor. If a fence wire is caught during the mulching process, it can damage the unit by slipping over to the edge of the rotor and get wrapped on the shaft, so wire protection kit is provided to safeguard the rotor and the bearing.

The MP330 small tractor mounted brush mulcher as a rotor diameter of 15 inches (tool tips), rotor width of 30 inches and a path width of 42 inches.

Model No.	MP330	MP348	MP360	MP560	MP572	MP972	Large Shaft to up the HP
Path Width	41.75"	60"	72"	75"	87"	84"	D002134
Rotor Width	30"	48"	60"	60"	72"	72"
Maximum Engine HP	40	50	55	75	125	135	90 - 155 PTO Hp
Maximum PTO HP	35	40	45	65	115	125	Do not exceed 165 Engine Hp
Minimum Engine HP	15	25	30	45	50	90
Cutting Depth	Level	Level	Level	1.5" Above to 1" Below Grade	1.5" Above to 1" Below Grade	Level to 2" Below Grade
Cutting Style	High Speed Teeth	High Speed Teeth	High Speed Teeth	Carbide Tipped Bolt In	Carbide Tipped Bolt In	Double Tipped
Tooth Part number	H3000	H3000	H3000	P5000	P5000	R9000
Number of cutters	36	60	74	92	112	43
Rotor Shaft Size	2"	2"	2"	2"	2"	2"
Rotor Diameter (tool tips)	15"	15"	15"	15"	15"	18.5"
Rotor Weight (with tools)	188 lbs	230 lbs	315 lbs	575 lbs	700 lbs	1,105 lbs
Hitch Size	CAT 1	CAT 1	CAT 1	CAT 2	CAT 2	CAT 2 or 3
Quick hitch compatibility	Yes	Yes	Yes	No	No	No	No
Drive Speed	540	540	540	540	1,000	1,000
Drive Speed Options					540 (Max Engine HP 110)	540 (Max Engine HP 110)
Gearbox Spline Size	1-3/8"	1-3/8"	1-3/8"	1-3/8"	1-3/8"	1-3/8"
Tractor End Spline Size	1-3/8"	1-3/8"	1-3/8"	1-3/8"	1-3/8"	1-3/8"	1.75" 20 -spline
System Protection	Slip Clutch	Slip Clutch	Slip Clutch	Slip Clutch	Slip Clutch	Slip Clutch
Unit Weight	525 lbs	1050 lbs	1200 lbs	2145 lbs	2500 lbs	3200 lbs
Hydraulic Requirements	Not Applicable	Not Applicable	Not Applicable	1 Remote	1 Remote	2 Remotes
