BLUE DIAMOND Swing Arm Brush Cutter for Skid Steer

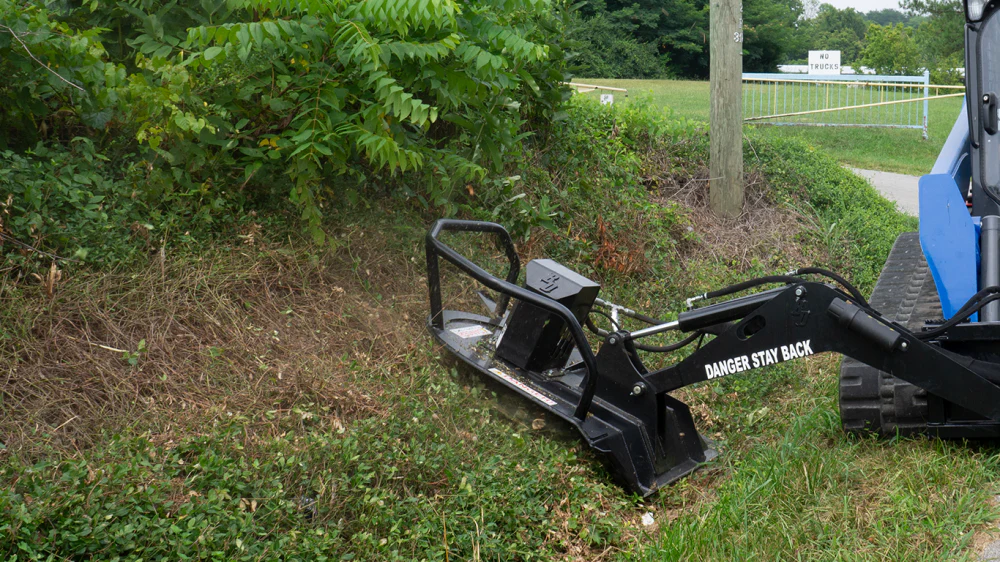

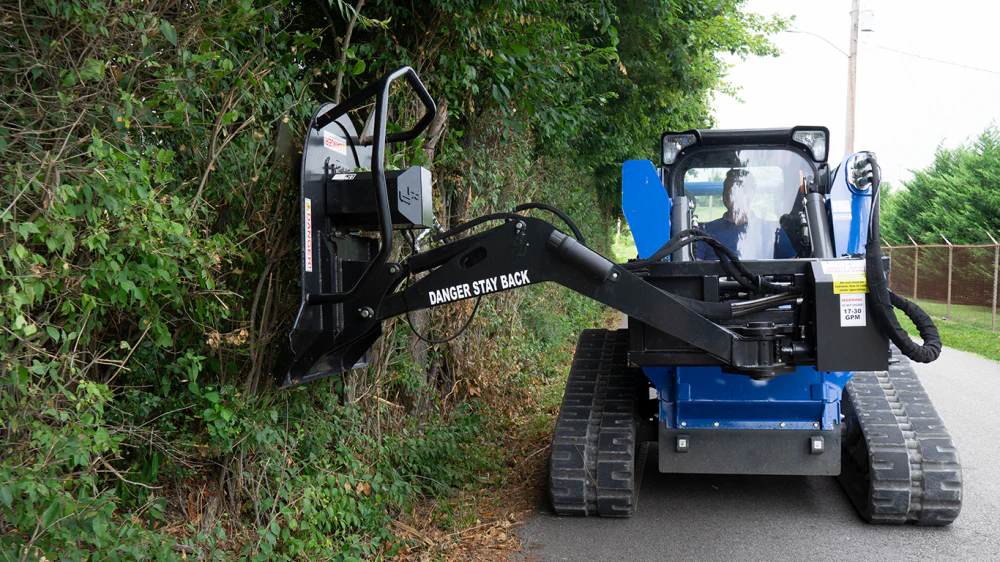

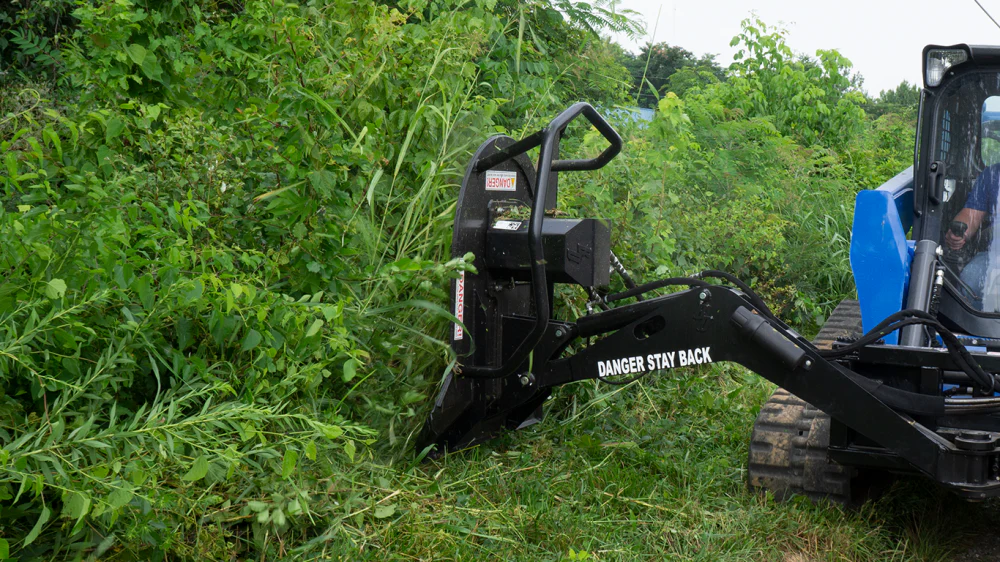

The BLUE DIAMOND Swing Arm Brush Cutter for skid steer is built to tackle banks, right-of-ways, fence lines, pond banks, and trails with an impressive reach. Designed for efficiency, it delivers a substantial advantage over typical cutters, letting you clear more with fewer passes from your skid steer.

Features

• Reach advantage: 96" horizontal extension and a 16' vertical reach for hard-to-reach brush and trees
• Swing capability: swings to the right and can function as a side cutter
• Power options: direct-drive piston motor or Gerolar motor, both rated up to 4000 PSI
• Hydraulic requirements: Gerolar 14–20 GPM; piston 17–30 GPM
• Cylinder design: 3" x 16" tilt cylinders
• Cutting tools: 5/8" AR400 blades; 44" cut width; 4" cutting capacity
• Weight: 845 lbs with Gerolar motor; 1,025 lbs with piston motor
• Installation notes: requires case drain line hookup; optional universal wiring harness (8-pin or 14-pin)
• Warranty: one-year warranty; blades and hoses are not covered
• Part numbers: 103870 (Gerolar motor, 14–20 GPM); 103875 (Piston motor, 17–30 GPM)

Benefits

Increase your productivity by extending your machine’s reach, reducing repositioning on uneven terrain, and clearing edges along banks, ponds, and fences in fewer passes. The swing-right capability unlocks edge-clearing tasks that are difficult with a standard cutter, letting you work efficiently along ditches and fence lines without multiple setups.

The 44" cutting width and 4" cutting capacity handle dense brush and smaller trees, while the durable AR400 blades stand up to frequent use in rugged environments. Choose between the Gerolar or piston motor to match your hydraulic system’s flow and pressure, and pair with the appropriate wiring harness for a clean, reliable installation. Remember to attach the case drain line and follow the operator manual for safe operation and maintenance. This attachment is ideal for land management contractors, rural property maintenance teams, farms, and municipalities that require robust, high-reach clearing capabilities.

PART NUMBER	MODEL	REQ FLOW	WEIGHT
103870	Swing arm brush cutter- Gerolar motor	14-20	845 lbs
103875	Swing arm brush cutter - piston motor	17-30	1,025 lbs
