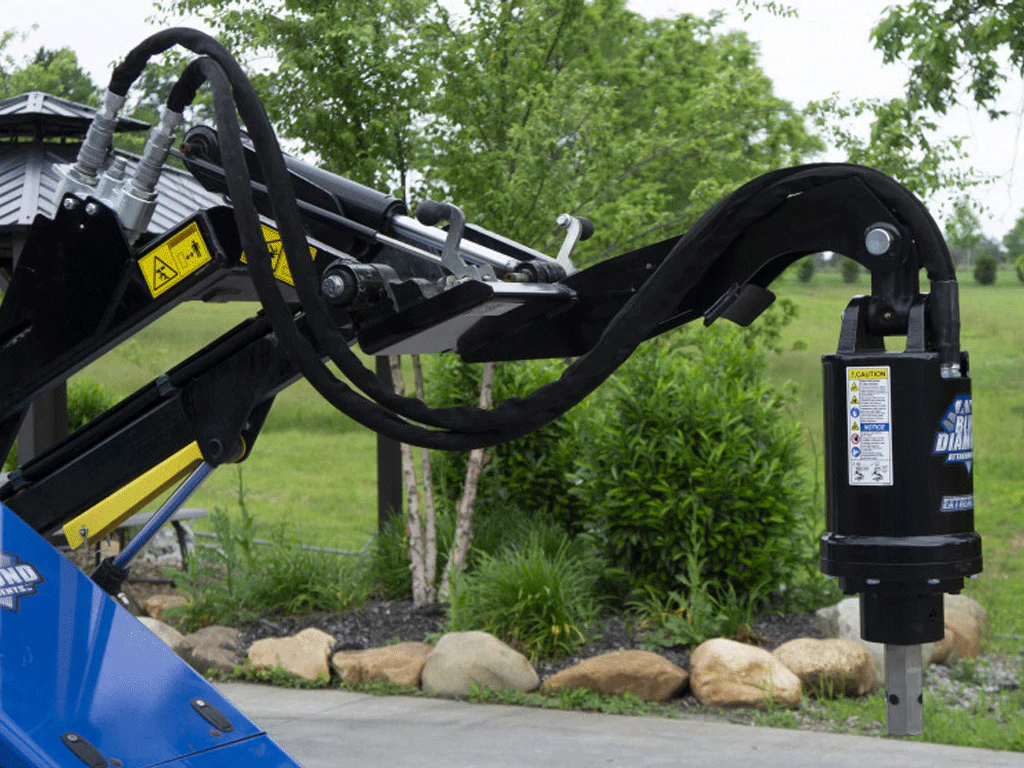

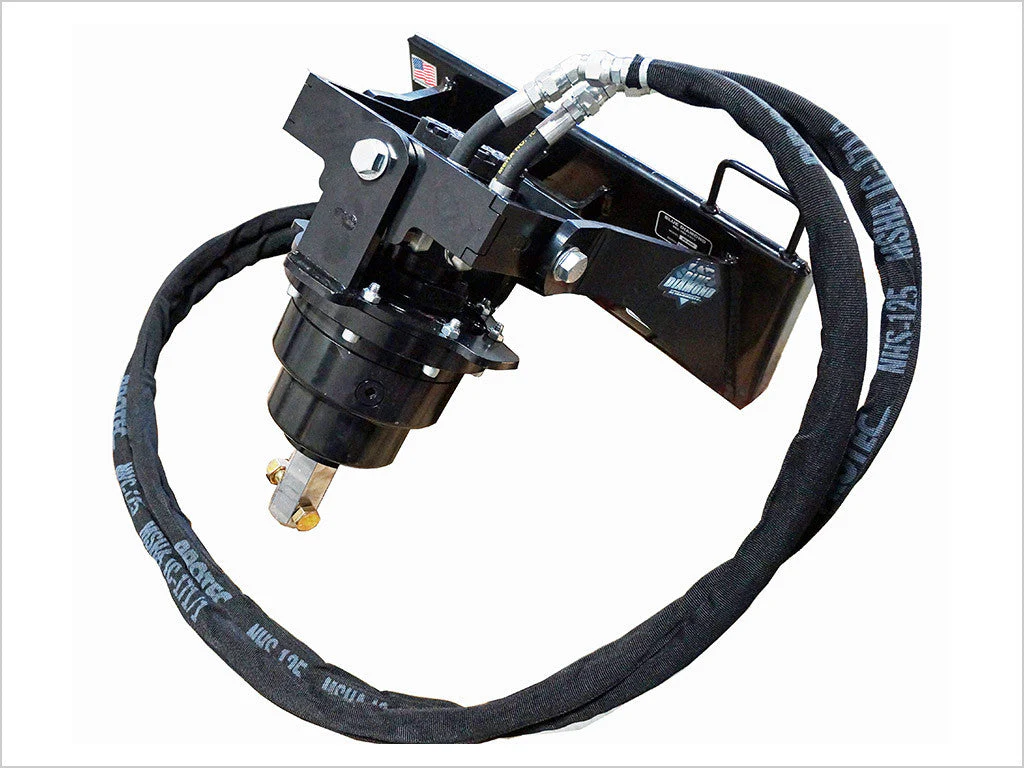

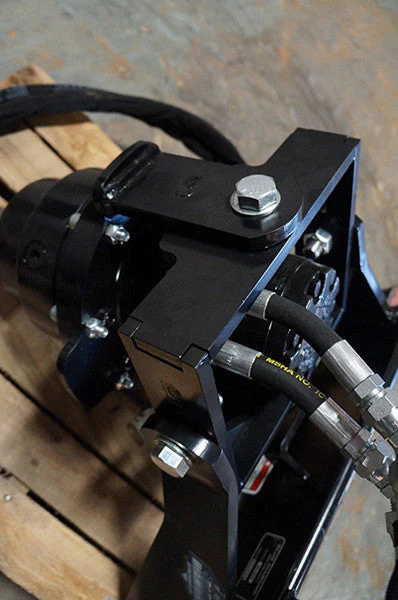

BLUE DIAMOND Mini Auger Drive for Mini Skid Steer

Features

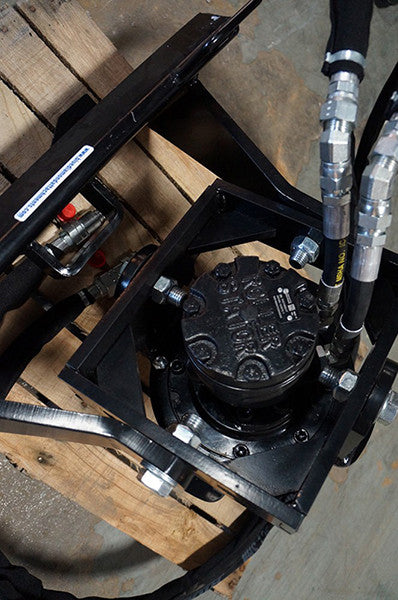

• Planetary drive for smooth torque transfer and reliable performance in varied soils
• 2" hex shaft for a strong, secure connection to auger bits
• Double swing action designed to reduce stalling and improve drilling efficiency
• Hoses and couplers included for quick, plug‑and‑play setup
• 4-year warranty provides long‑term protection and confidence
• Fits most mini skid steers and compact track loaders for versatile on‑site use
• Configurations to match hydraulic flow and drilling needs:
  • MS1 2-Way: 136 lbs, 2" hex shaft
  • MS1 4-Way: 145 lbs, 2" hex shaft
  • EX1: 165 lbs, 2" hex shaft, 8-11 GPM
  • EX2: 188 lbs, 2" hex shaft, 12-16 GPM
  • EX3: 195 lbs, 2" hex shaft, 17-20 GPM
  • EX4: 195 lbs, 2" hex shaft, 29-23 GPM

Benefits

Increase drilling productivity on fence and deck post installs, agricultural fencing, or landscaping projects with a compact, durable auger drive. The Blue Diamond design delivers consistent torque, helping you dig clean, straight holes even in tougher soils. With a robust 2" hex shaft and double swing action, you gain reliable engagement and smoother operation, reducing downtime from tool wear or stalls. Ready-to-use with hoses and couplers included and backed by a 4-year warranty, this drive is a solid upgrade for fleets or individual operators using mini skid steers or compact track loaders. The wide range of configurations (MS1 and EX series) accommodates different hydraulic flow (GPM) and machine sizes, making it easier to pair with your existing equipment and job requirements.

Part Number	Model	Weight	Hex Shaft
105700	MS1 2-Way	136 lbs	2”
105702	MS1 4-Way	145 lbs	2”
305706	EX1, 8-11 GPM	165 lbs	2”
305709	EX2, 12-16 GPM	188 lbs	2”
305713	EX3, 17-20 GPM	195 lbs	2”
305716	EX4, 29-23 GPM	195 lbs	2”
