BrushMonster Mulcher | Model Revolution Axe Series | 64"–77" Cutting Width | Axial Piston Motor | 15–45 GPM | AR400 & 5160 Blades | For Skid-Steer Loaders
DESCRIPTION
The BrushMonster Revolution Axe Series redefines high-performance mulching with a lineup of cutters designed for both standard and high-flow skid-steer loaders. Available in 64" and 77" cutting widths, these units are powered by a premium Axial Piston motor delivering up to 6000 PSI with 95% efficiency, reaching speeds of 1100 RPM at peak flow.
Each model features a rugged blade system—either AR400 or 5160 hardened steel—paired with concave mulching teeth for aggressive vegetation reduction. The dual-layer welded deck enhances structural integrity, while the locking shaft pin provides critical protection in case of bearing failure. With easy blade access through the top deck and compatibility across a wide hydraulic range (15–45 GPM), the Revolution Axe Series is built to dominate brush, saplings, and small trees in forestry, land clearing, and vegetation management.
Key Features
- Axial Piston Motor: 95% efficiency up to 6000 PSI for consistent torque and cutting power
- Hydraulic Flow Compatibility: Supports Standard (15–24 GPM), Mid (25–30 GPM), and High (31–45 GPM) systems
- Max RPM Performance: Up to 1100 RPM at full flow for rapid mulching

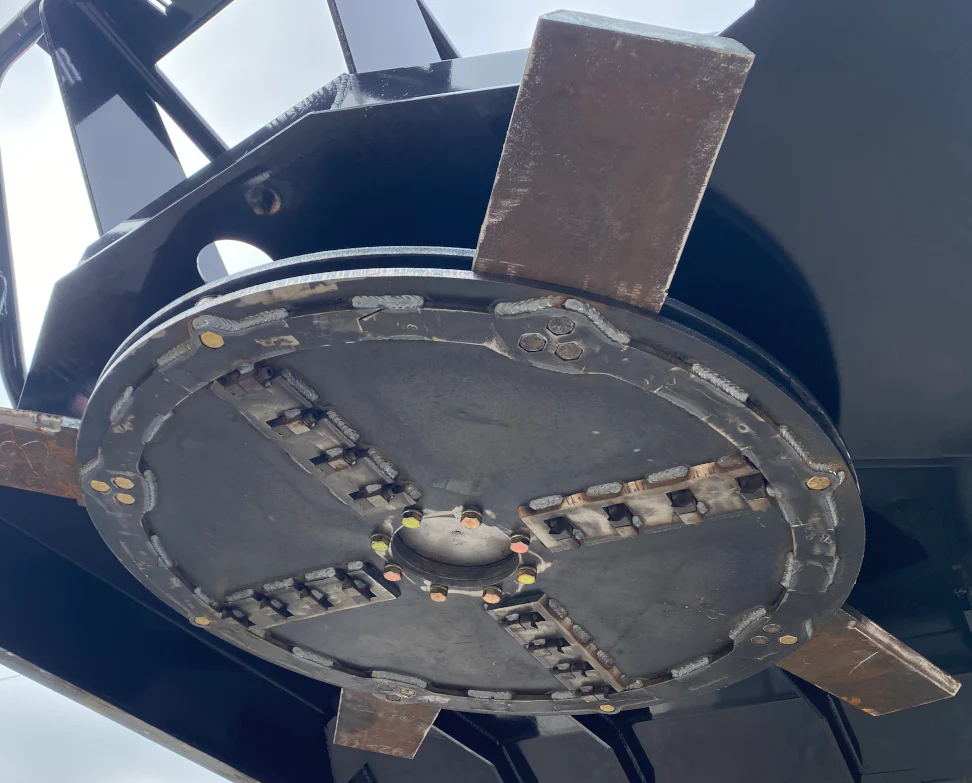

- Blade Options: AR400: ¾" × 19" × 6" or ½" × 18" × 6", 5160: ½" × 12" × 5"
- Mulching Teeth: 12–16 concave teeth (1⅛") for fine material breakdown
- Deck Construction: Dual ½" plate welded design for maximum durability
- Blade Access: Top-deck service port for quick blade changes
- Safety Locking Pin: Prevents shaft damage in case of bearing failure
-
Machine Compatibility: Designed for skid-steer loaders with standard or high-flow hydraulics
Detailed Specifications
| Specification | Revolution 64" Standard | Revolution 64" High |
|---|---|---|
| Cutting Width | 64" | 64" |
| Hydraulic Flow | 15–24 GPM | 31–45 GPM |
| Motor Type | Axial Piston | Axial Piston |
| Max RPM | 1100 RPM | 1100 RPM |
| Blade Type | 5160 | AR400 |
| Blade Specs | ½" × 12" × 5" | ½" × 18" × 6" |
| Mulching Teeth | 16 × 1⅛" concave | 12 × 1⅛" concave |
| Deck Design | Dual-layer welded deck | Dual-layer welded deck |
| Weight | Not Specified | Not Specified |
| Specification | Revolution 77" Standard | Revolution 77" High | Revolution Axe 77" High |
|---|---|---|---|
| Cutting Width | 77" | 77" | 77" |
| Hydraulic Flow | 15–45 GPM | 31–45 GPM | 31–45 GPM |
| Motor Type | Axial Piston | Axial Piston | Axial Piston |
| Max RPM | 1100 RPM | 1100 RPM | 1100 RPM |
| Blade Type | AR400 | 5160 | AR400 |
| Blade Specs | ½" × 18" × 6" | ½" × 12" × 5" | ¾" × 19" × 6" |
| Mulching Teeth | 12 × 1⅛" concave | 16 × 1⅛" concave | 16 × 1⅛" concave |
| Deck Design | Dual-layer welded deck | Dual-layer welded deck | Dual-layer welded deck |
| Weight | 1550 lbs | Not Specified | 1750 lbs |
