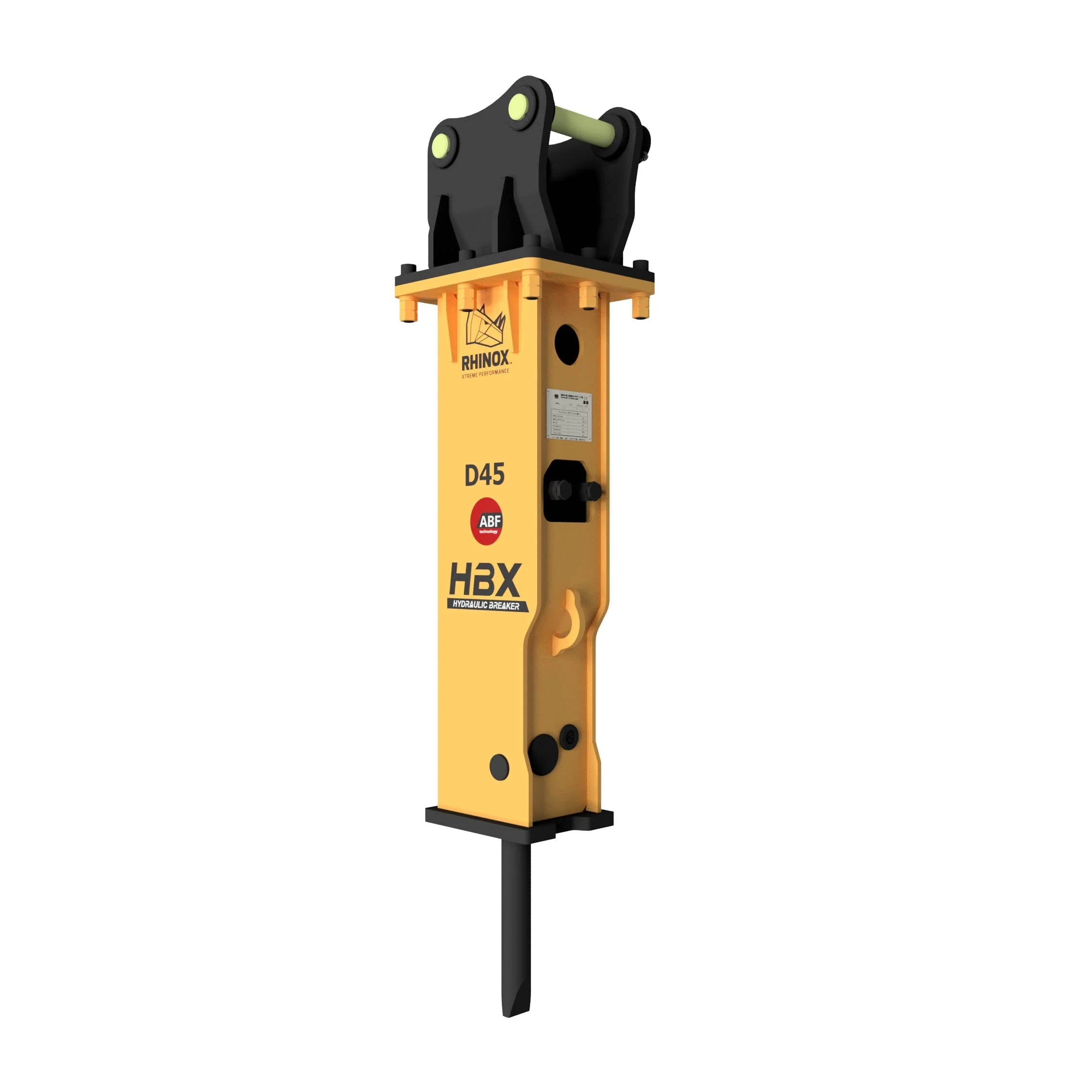

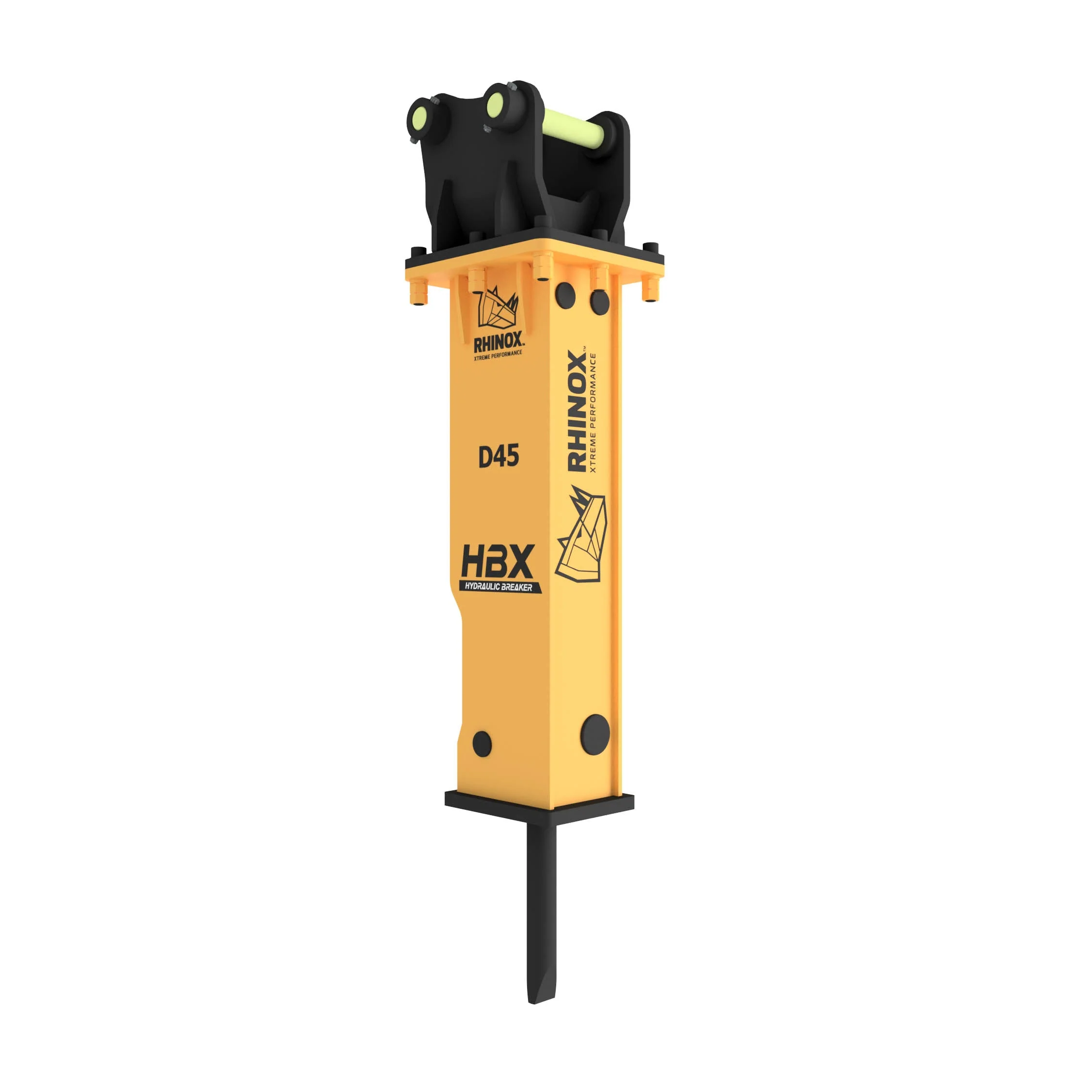

CAT 302.5 Hydraulic Hammer

Designed to fit the CAT 302.5 mini excavator, this Rhinox hydraulic hammer is built for robust demolition work on concrete and rock in tight spaces. It connects directly to your excavator’s auxiliary lines, with the hydraulic pump delivering high-pressure blows to break hard material. The package includes an installation kit with a toolbox and wrenches, plus a nitrogen charging kit for quick setup. You’ll receive 2 wedge chisels and two 78-inch hydraulic hoses with 1/2 inch BSP threads. Note: the mounting bracket for your exact excavator model must be fitted on arrival, and hoses may require adjustment in length to suit port locations. A simple, step-by-step guide is available to help with installation.

• ABF System: Anti-Blank Firing automatically stops hammering when the tool isn’t resting on a surface, preventing unnecessary blows and protecting the hammer and excavator arm.
• Rigid Damping System: Built-in vibration control reduces recoil and operator fatigue, helping extend the life of the hammer and your machine.
• Installation Kit: Includes the tools needed for installation, plus a toolbox with wrenches and a nitrogen charging kit for on-site setup.
• Wedge Chisels: Supplied with 2x flat, wedge chisels for versatile breaking across different materials.
• Hydraulic Hoses: Two 78-inch hoses with 1/2 inch BSP threads; hose length may need adjustment to fit your auxiliary port layout.
• Mounting Bracket Note: The mounting bracket for your excavator model must be fitted on arrival; all necessary tools are included, and a video guide is available to assist assembly.
• Warranty: Backed by up to 1 year or 2,000 operating hours, whichever comes first; hoses are excluded from warranty, while the chisel is covered for manufacturing defects.

This hydraulic hammer is a practical choice for CAT 302.5 owners tackling residential demolition, light quarrying, and site clean-up. The ABF and damping systems work together to minimize wear and operator strain, while the ready-to-run installation kit and included chisels get you into action quickly. Ensure proper bracket fitting on arrival and refer to the installation video for best results and ongoing maintenance tips.
