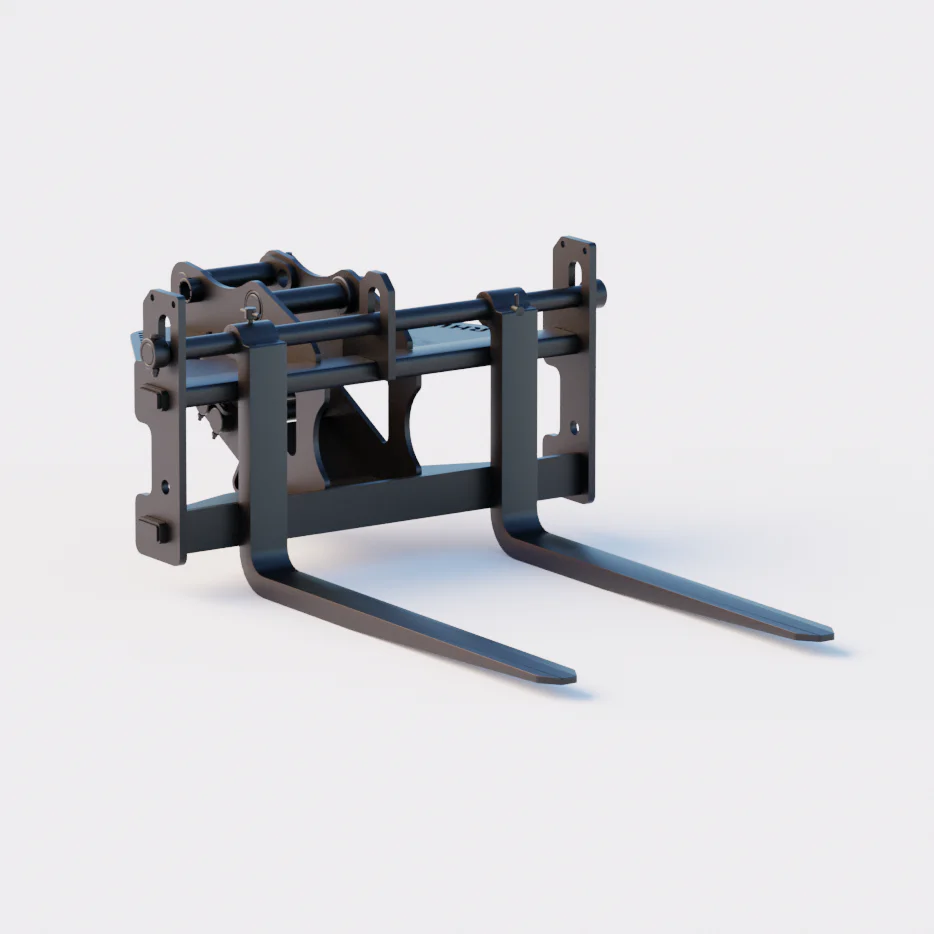

CAT 309 Pallet Forks

This set of excavator pallet forks (PFX) are designed to fit a CAT 309, allowing you to unload deliveries and move pallets of material around your job site.

Rhinox pallet forks are ideal for boggy sites where you may struggle to use a telehandler or forklift. Excavator pallet fork attachments are becoming more popular across the construction and machine rental sectors for increasing your excavator's versatility and saving you money on renting additional machines.

Rhinox excavator pallet forks feature a multi-pin pick-up system with interchangeable pin sizes, allowing one attachment to fit a range of excavators while providing built-in storage for unused pins. Our pallet forks also feature floating forks that pivot with gravity, making positioning under pallets easier. These tine forks are adjustable so you can easily set the fork spacing to your required width.

These pallet forks are supplied with:

• 45mm, 50mm & 60mm pins (1 3/4 inch, 1 15/16 inch & 2 3/8 inch)
• An extra 45mm pin (1 3/4 inch) and pin hole to fit most 5 ton excavators.

Declaration of conformity - Rhinox pallet forks are supplied with a declaration of conformity to certify your pallet forks are manufactured to the correct regulations and safety checked. They have a Working Load Limit (W.L.L) of 2,755 lbs.

Disclaimer - A small amount of assembly is required. You will need to mount the tine forks to your pallet fork carriage.

For more information on Rhinox Pallet Forks, check out our videos below:
