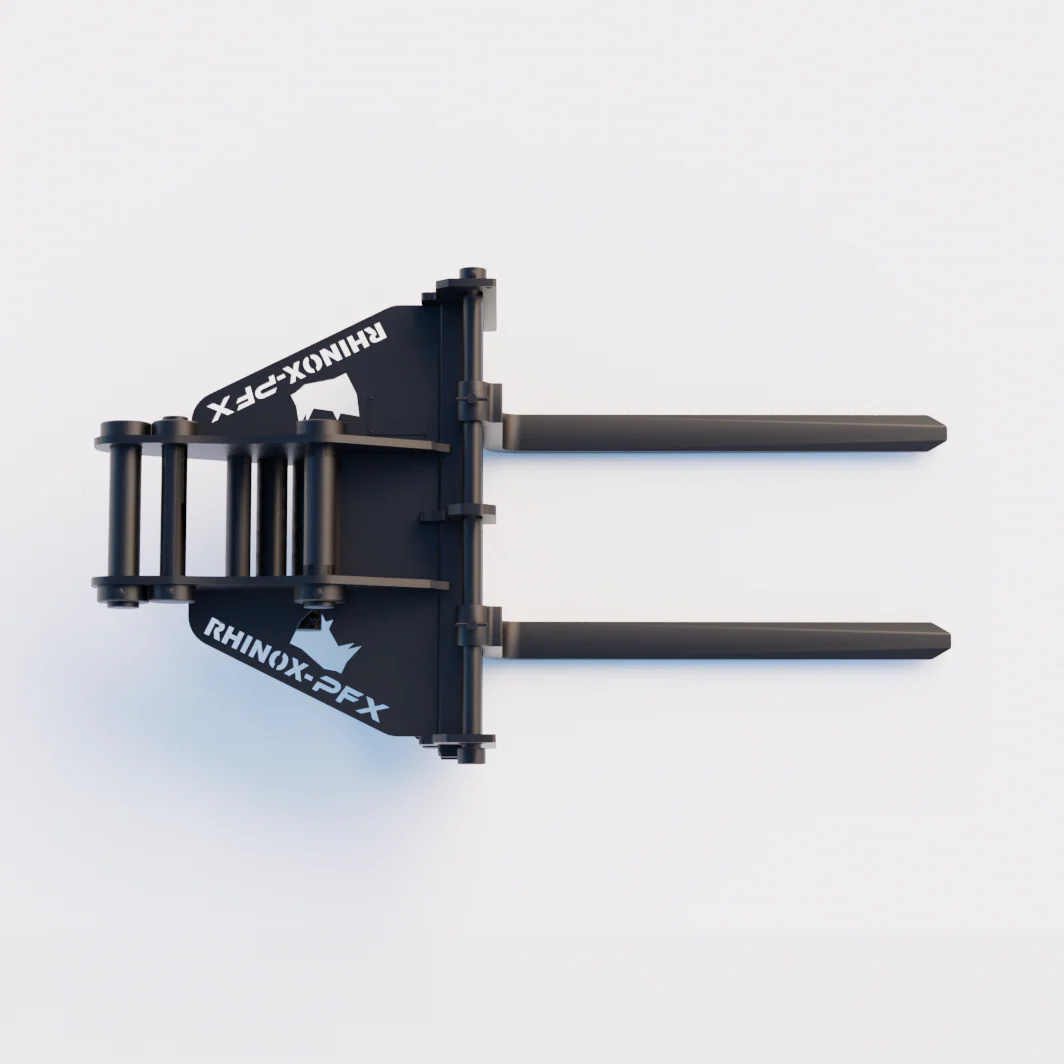

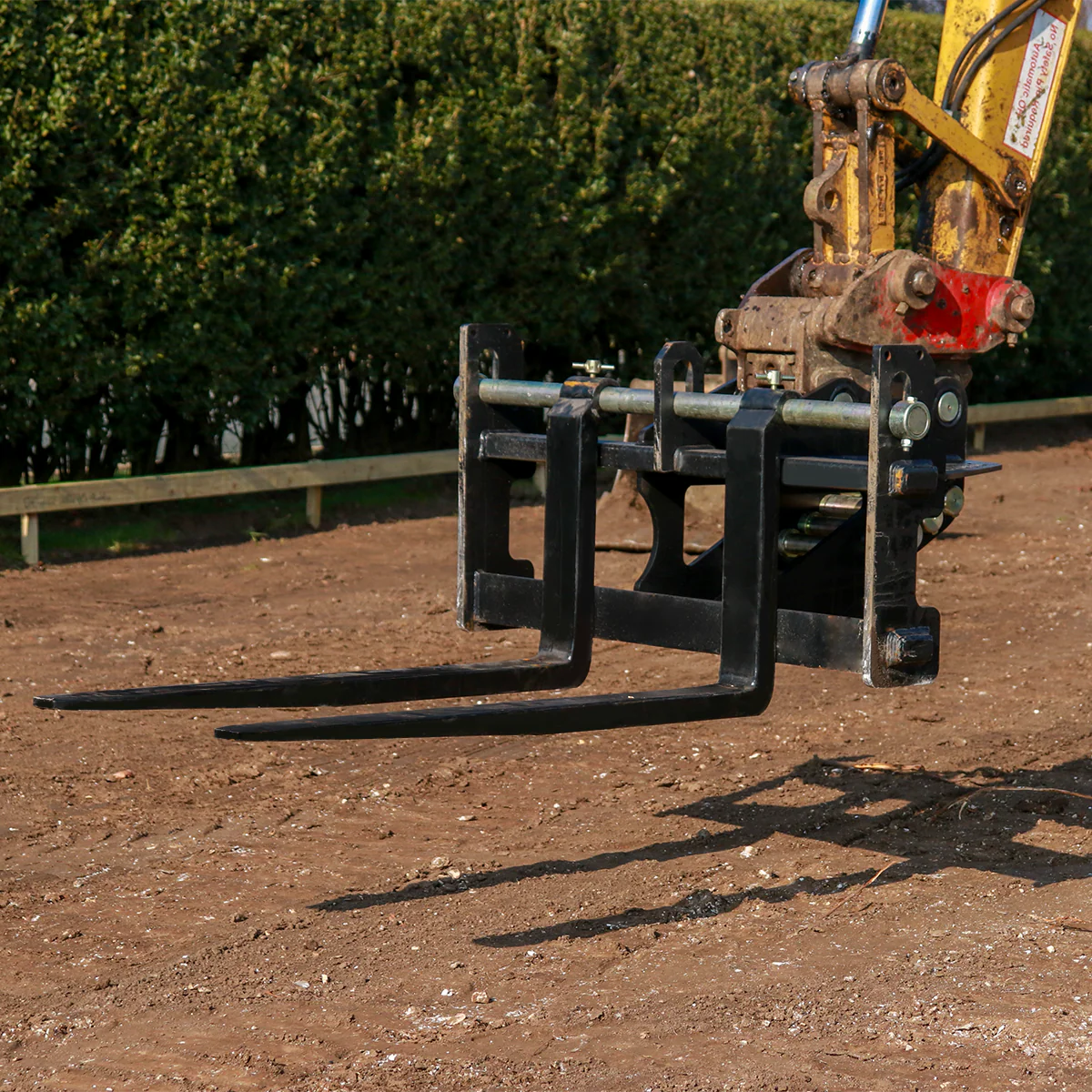

CAT 323 Pallet Forks

This Rhinox pallet fork set is engineered to fit CAT 323 excavators, giving you dedicated pallet handling power directly from your machine. Use it to unload deliveries and move palletized materials around the site, especially on boggy or uneven ground where a telehandler or forklift is impractical. By adding pallet forks to your excavator, you gain versatility and can reduce rental costs for extra equipment. The attachment combines a multi-pin pick-up system, floating forks, and adjustable spacing to adapt to different pallets and workloads.

• Multi-pin pick-up system: Interchangeable 65mm and 80mm pins let this attachment work across a range of excavators; includes built-in storage for unused pins.
• Floating gravity-pivoting forks: Tines pivot with gravity for easier insertion under pallets and precise positioning with less operator effort.
• Adjustable fork spacing: Easily set the fork width to match pallet sizes and load requirements, improving load stability.
• Includes 65mm and 80mm pins: Supplied with both pin sizes for quick setup on compatible machines.
• Declaration of conformity: Comes with a declaration certifying compliance with applicable safety and regulatory standards.
• Working Load Limit (W.L.L) 5,511 lbs: Rated capacity for safe pallet handling on standard site loads.
• Built-in pin storage: Keeps spare pins securely stored when not in use.
• Assembly required: A small amount of setup is needed to mount the tine forks to your pallet fork carriage.

Benefits: With the CAT 323 pallet forks, you can boost on-site pallet handling without extra equipment, speeding up deliveries and material movement in challenging conditions. The combination of interchangeable pins, floating tines, and adjustable spacing makes this attachment versatile across different pallets and workloads, while the 5,511 lb WLL provides a clear margin for typical palletized loads. The included declaration of conformity and on-machine storage for pins add practical safety and convenience for busy construction fleets.
