Original: $42,897.68
-65%$42,897.68
$15,014.19The Story

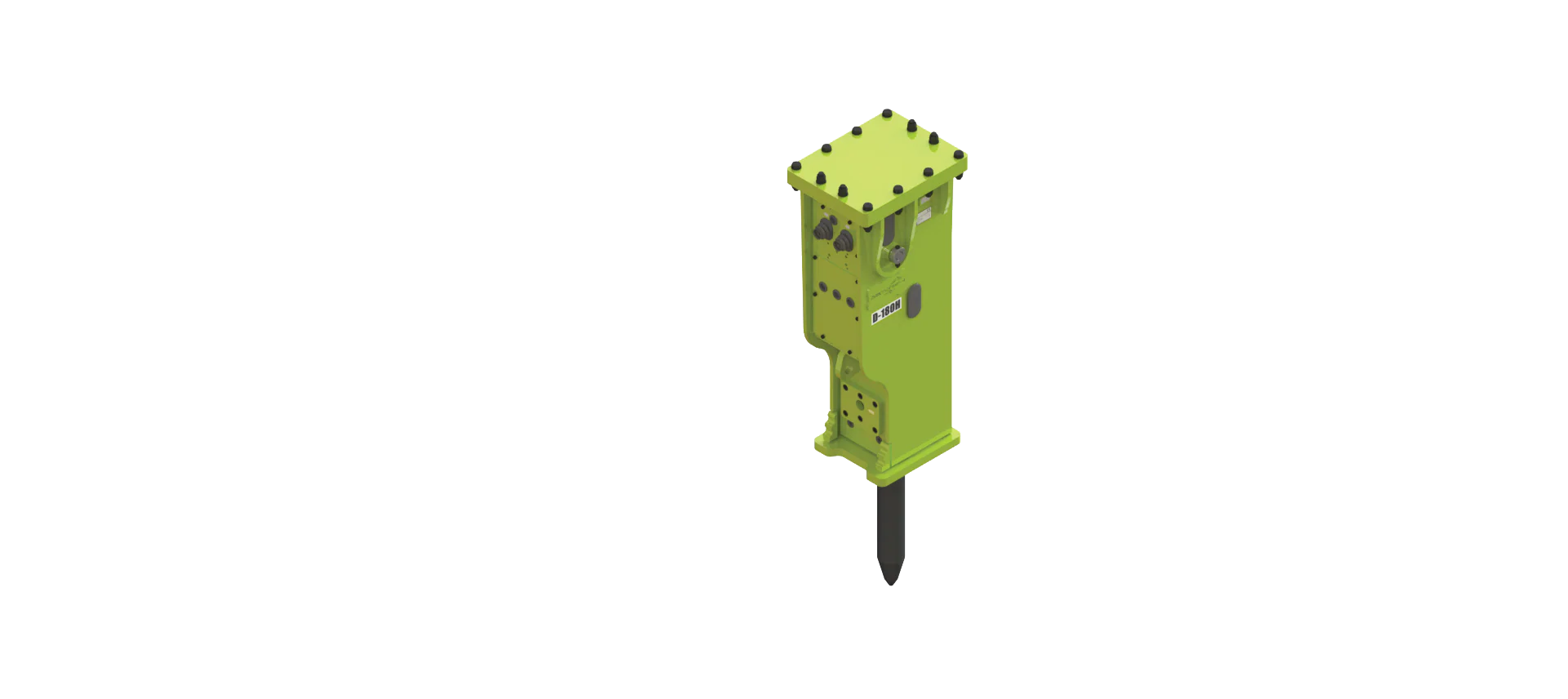

DRKhorse D-Series Hydraulic Breaker – High Impact Excavator Attachment
Built for Power, Precision & Efficiency
The D-Series Hydraulic Excavator Hammer is engineered for maximum productivity in demanding applications such as quarry rock breaking, concrete demolition, foundation removal, and trenching. Compatible with a wide range of carriers—including mid-range and large excavators—the D-Series delivers consistent high impact energy with reduced fuel and oil consumption.
Key Features & Benefits
High Impact Power with Hydraulic Efficiency
-
Uses hydraulic oil flow at peak efficiency to minimize carrier strain
-
Reduces oil consumption and prevents overheating during continuous use
-
Provides maximum impact energy for fast and effective breaking of rock and concrete
Durable & Simple Design
-
Control valve built into the cylinder – fewer moving parts for greater reliability
-
Large diameter porting improves oil flow for smoother operation
-
High-capacity back head gas chamber ensures consistent power output
Enhanced Protection & Longer Life
-
Large accumulator safeguards carrier hydraulic systems from damage
-
Built with a high energy valve system for increased performance under extreme conditions
-
Vibration and sound suppression design reduces operator fatigue and noise
Operator-Friendly Maintenance
-
Optional auto-stop system prevents unnecessary wear
-
Quick change chisel pin system allows fast tool replacement
-
Stroke adjuster and auto-lubrication system (optional) extend service life and reduce downtime
Applications
-
Quarry rock breaking
-
Concrete demolition & recycling
-
Foundation removal
-
Trenching in hard soil or rock
Why Choose the D-Series Hydraulic Breaker?
-
Optimized for excavator rock breaking and concrete demolition
-
Lower operating costs with fuel and oil efficiency
-
Built for durability with fewer wear parts and advanced protection systems
-
High-performance hydraulic breaker trusted in construction, mining, and demolition industries
*Mounting Not Included In Price. Mounting Will Be Quoted Per Machine.
Product Flyer Download
D-Series Hydraulic Breaker Specifications
Mid-Range Models
| Specification | Unit | D-3000H | D-4000H | D-5000H | D-7500H |
|---|---|---|---|---|---|
| Impact Energy Class | ft/lbs | 3,000 | 4,000 | 5,000 | 7,500 |
| Carrier Weight / Stick | ton^ | 12–18 | 18–24 | 24–30 | 28–42 |
| Working Weight* | lbs | 2,714 | 3,477 | 4,456 | 6,107 |
| Operating Press Max. | psi | 2,702 | 2,702 | 2,702 | 2,702 |
| Max. Flow | gpm | 34 | 35 | 47 | 58 |
| Tool Diameter | in/mm | 4.5 / 115 | 5.3 / 135 | 5.7 / 145 | 6.1 / 155 |
Large Range Models
| Specification | Unit | D-8500H | D-10000H | D-12000H | D-15000H |
|---|---|---|---|---|---|
| Impact Energy Class | ft/lbs | 8,500 | 10,000 | 12,000 | 15,000 |
| Carrier Weight / Stick | lbs | 34–50 | 40–60 | 45–80 | 60–100 |
| Working Weight* | lbs | 7,688 | 9,037 | 9,890 | 12,871 |
| Operating Press Max. | psi | 2,702 | 2,702 | 2,702 | 2,702 |
| Max. Flow | gpm | 63 | 72 | 80 | 85 |
| Tool Diameter | in/mm | 6.5 / 165 | 6.9 / 175 | 7.1 / 180 | 7.9 / 200 |
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
DRKhorse D-Series Hydraulic Breaker – High Impact Excavator Attachment
Built for Power, Precision & Efficiency
The D-Series Hydraulic Excavator Hammer is engineered for maximum productivity in demanding applications such as quarry rock breaking, concrete demolition, foundation removal, and trenching. Compatible with a wide range of carriers—including mid-range and large excavators—the D-Series delivers consistent high impact energy with reduced fuel and oil consumption.
Key Features & Benefits
High Impact Power with Hydraulic Efficiency
-
Uses hydraulic oil flow at peak efficiency to minimize carrier strain
-
Reduces oil consumption and prevents overheating during continuous use
-
Provides maximum impact energy for fast and effective breaking of rock and concrete
Durable & Simple Design
-
Control valve built into the cylinder – fewer moving parts for greater reliability
-
Large diameter porting improves oil flow for smoother operation
-
High-capacity back head gas chamber ensures consistent power output
Enhanced Protection & Longer Life
-
Large accumulator safeguards carrier hydraulic systems from damage
-
Built with a high energy valve system for increased performance under extreme conditions
-
Vibration and sound suppression design reduces operator fatigue and noise
Operator-Friendly Maintenance
-
Optional auto-stop system prevents unnecessary wear
-
Quick change chisel pin system allows fast tool replacement
-
Stroke adjuster and auto-lubrication system (optional) extend service life and reduce downtime
Applications
-
Quarry rock breaking
-
Concrete demolition & recycling
-
Foundation removal
-
Trenching in hard soil or rock
Why Choose the D-Series Hydraulic Breaker?
-
Optimized for excavator rock breaking and concrete demolition
-
Lower operating costs with fuel and oil efficiency
-
Built for durability with fewer wear parts and advanced protection systems
-
High-performance hydraulic breaker trusted in construction, mining, and demolition industries
*Mounting Not Included In Price. Mounting Will Be Quoted Per Machine.
Product Flyer Download
D-Series Hydraulic Breaker Specifications
Mid-Range Models
| Specification | Unit | D-3000H | D-4000H | D-5000H | D-7500H |
|---|---|---|---|---|---|
| Impact Energy Class | ft/lbs | 3,000 | 4,000 | 5,000 | 7,500 |
| Carrier Weight / Stick | ton^ | 12–18 | 18–24 | 24–30 | 28–42 |
| Working Weight* | lbs | 2,714 | 3,477 | 4,456 | 6,107 |
| Operating Press Max. | psi | 2,702 | 2,702 | 2,702 | 2,702 |
| Max. Flow | gpm | 34 | 35 | 47 | 58 |
| Tool Diameter | in/mm | 4.5 / 115 | 5.3 / 135 | 5.7 / 145 | 6.1 / 155 |
Large Range Models
| Specification | Unit | D-8500H | D-10000H | D-12000H | D-15000H |
|---|---|---|---|---|---|
| Impact Energy Class | ft/lbs | 8,500 | 10,000 | 12,000 | 15,000 |
| Carrier Weight / Stick | lbs | 34–50 | 40–60 | 45–80 | 60–100 |
| Working Weight* | lbs | 7,688 | 9,037 | 9,890 | 12,871 |
| Operating Press Max. | psi | 2,702 | 2,702 | 2,702 | 2,702 |
| Max. Flow | gpm | 63 | 72 | 80 | 85 |
| Tool Diameter | in/mm | 6.5 / 165 | 6.9 / 175 | 7.1 / 180 | 7.9 / 200 |
