Skeer Tilt Grading Blade for Skid Steer

Skeer System's Skid Steer Grading Blade Attachment brings a new level of precision and efficiency to any leveling or grading project. Ideal for excavation, concrete preparation, paving preparation, or any other landscaping application that demands a smooth, level surface.

The unique traction level adjustment means that the cutting edges are at the same level as the bottom of the tracks when the arms of the machine are at their lowest point. Two independent wings are adjustable at required angle, you can grade at an angle while the base remains level, offering extreme versatility in a wide range of applications. Tilting the blade forward while moving backward also compacts the material, to easily see the imperfection and get a nice compact finish.

MAIN FEATURE

• 6-way Tilt plate with 14 degrees angle on each side
• Controlled from inside the cab (included in each unit

ELECTRICAL CONTROLS

Electrical controls for any machine included with purchase. 14-Pin and 8-Pin electrical harnesses available for all the common brands.

BENEFITS AND FEATURES

• Grade and level surfaces with ease
• Operate in forward or reverse
• Designed for maximum versatility and efficiency  (Push ‘N’ Grade)
• 60 degree vertical pivoting
• Tilt plate with 14 degrees angle on each side
• 2 independent side wings that can be set at different angles
• Ground Traction level adjustment
• Flat cutting edge in contact with ground
• Central blade pivot assembled with polymer for reduced wear
• Side Wing blade pivot assembled with polymer for reduced wear
• Capable of digging below ground for more aggressive application
• Resists digging and holding
• Powder coated
• Electrical harness included with purchase

SPECIFICATIONS

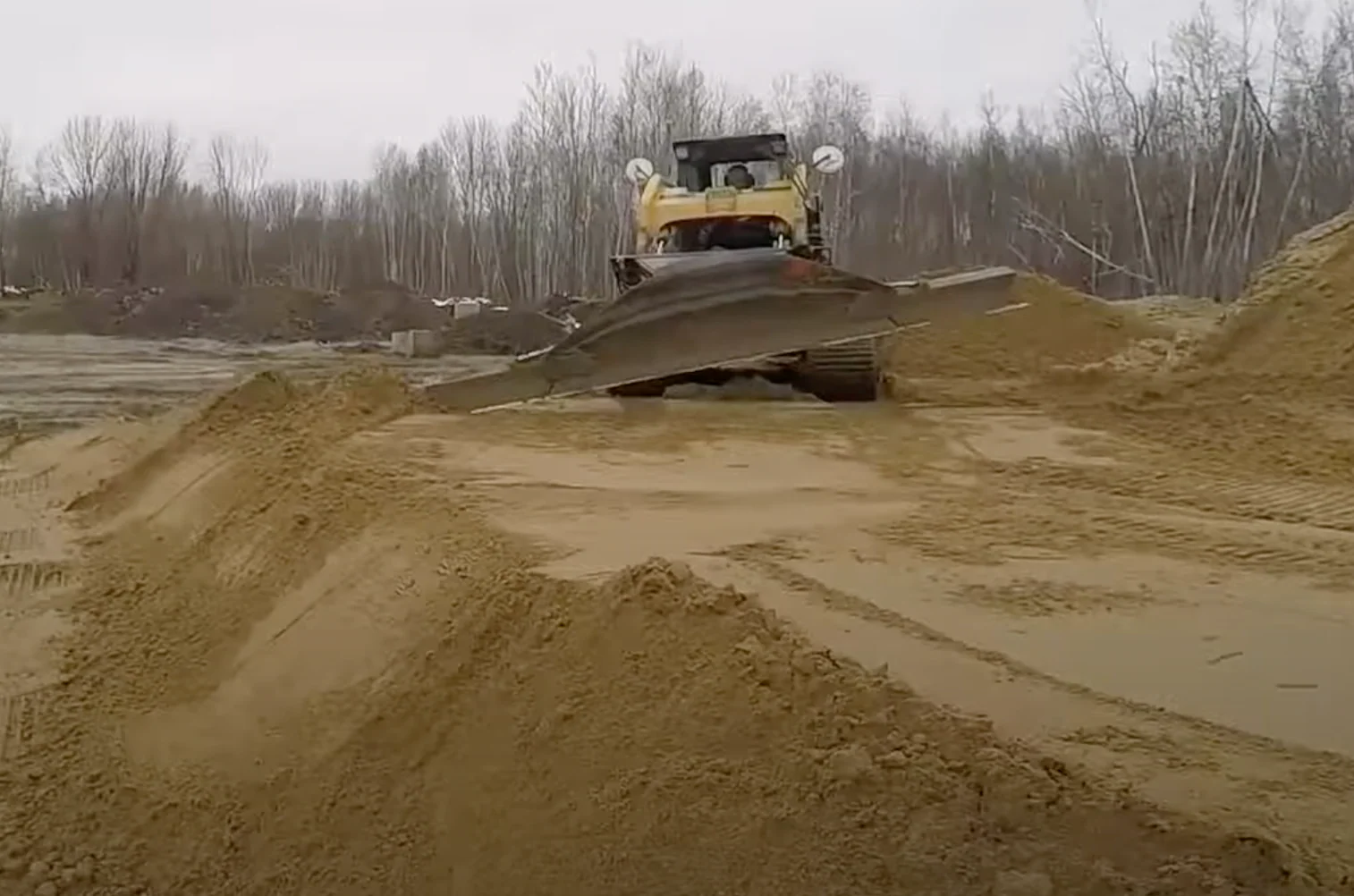

WATCH THE ATTACHMENT IN ACTION!
