Mongo Attachments Tilt Bucket For Excavator

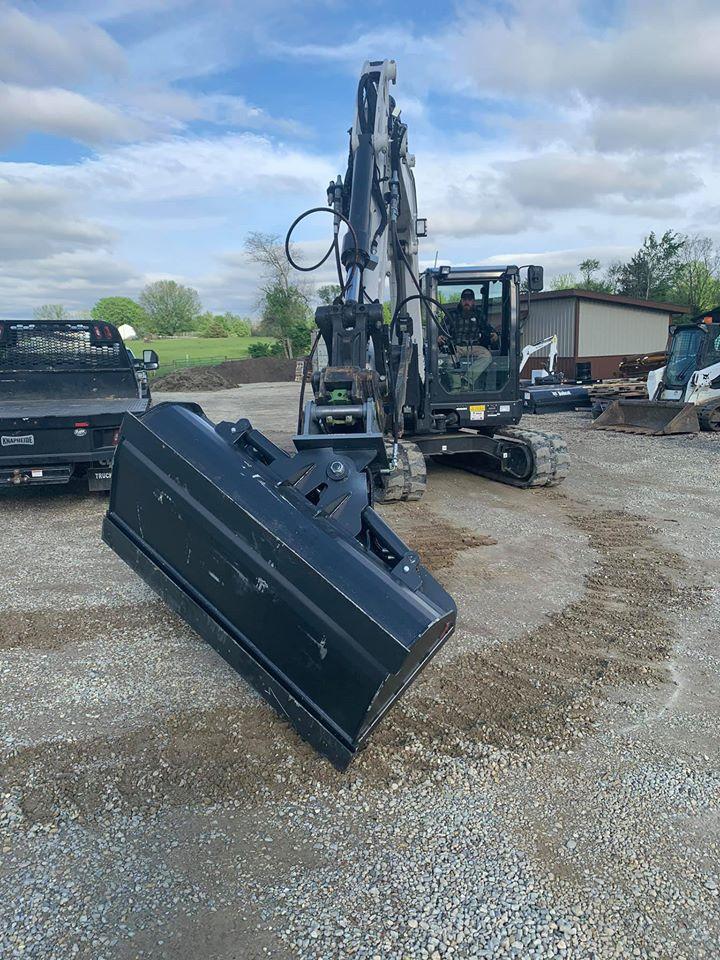

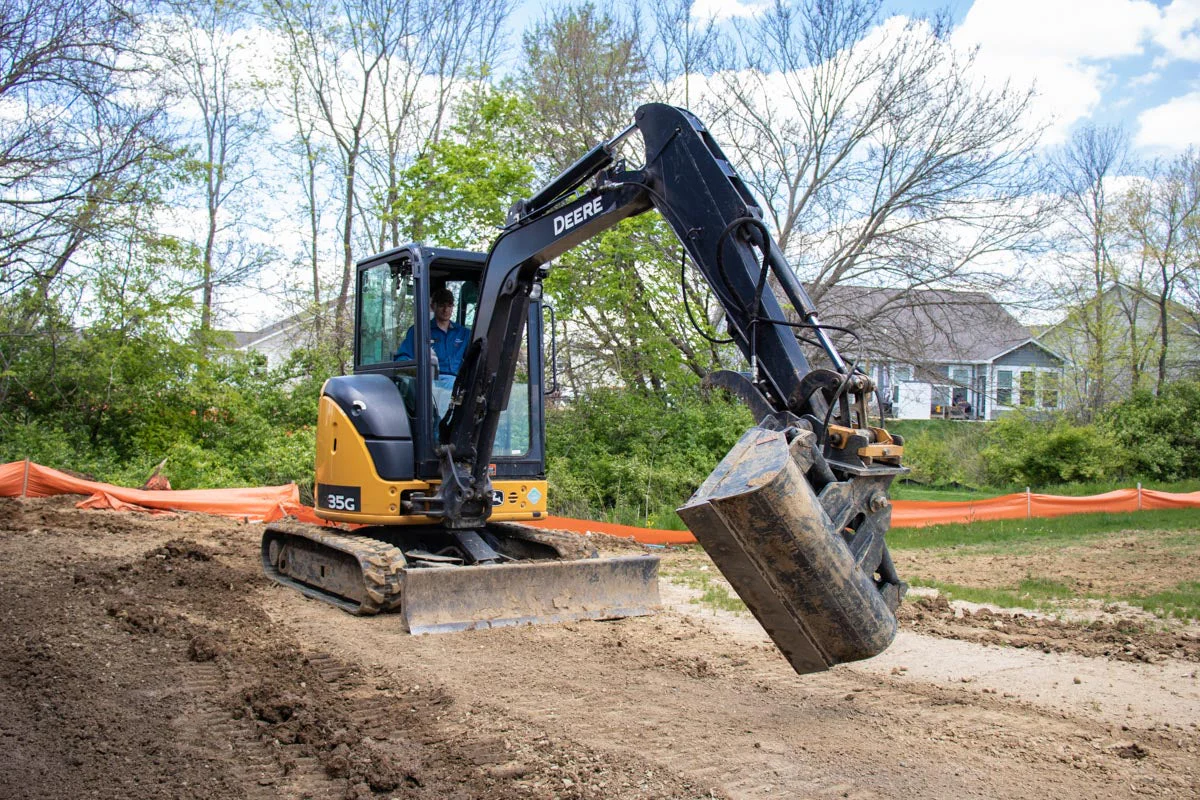

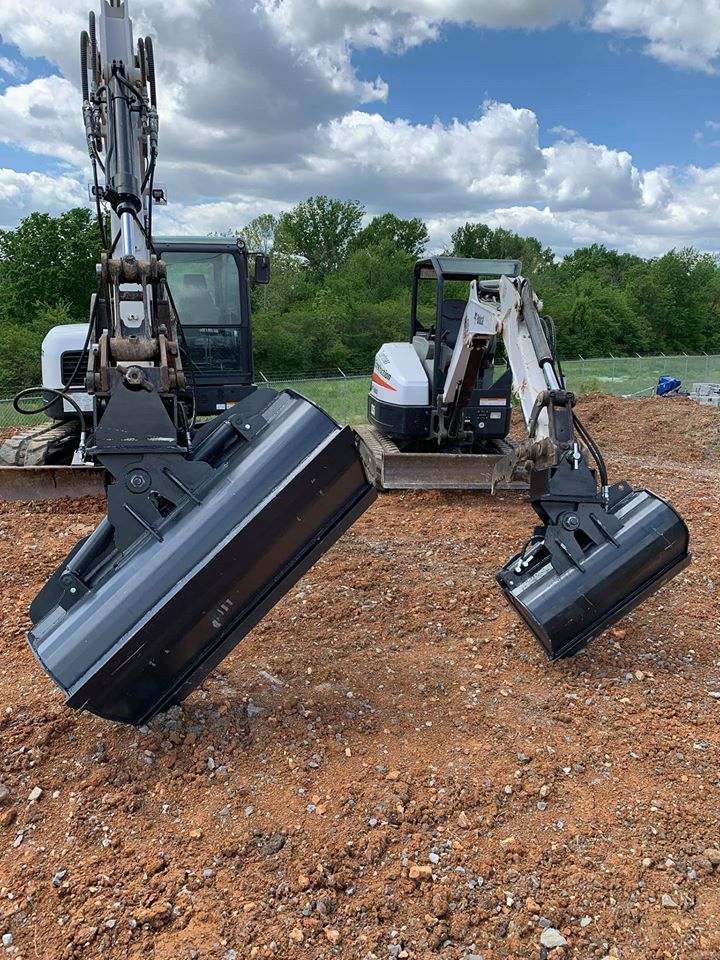

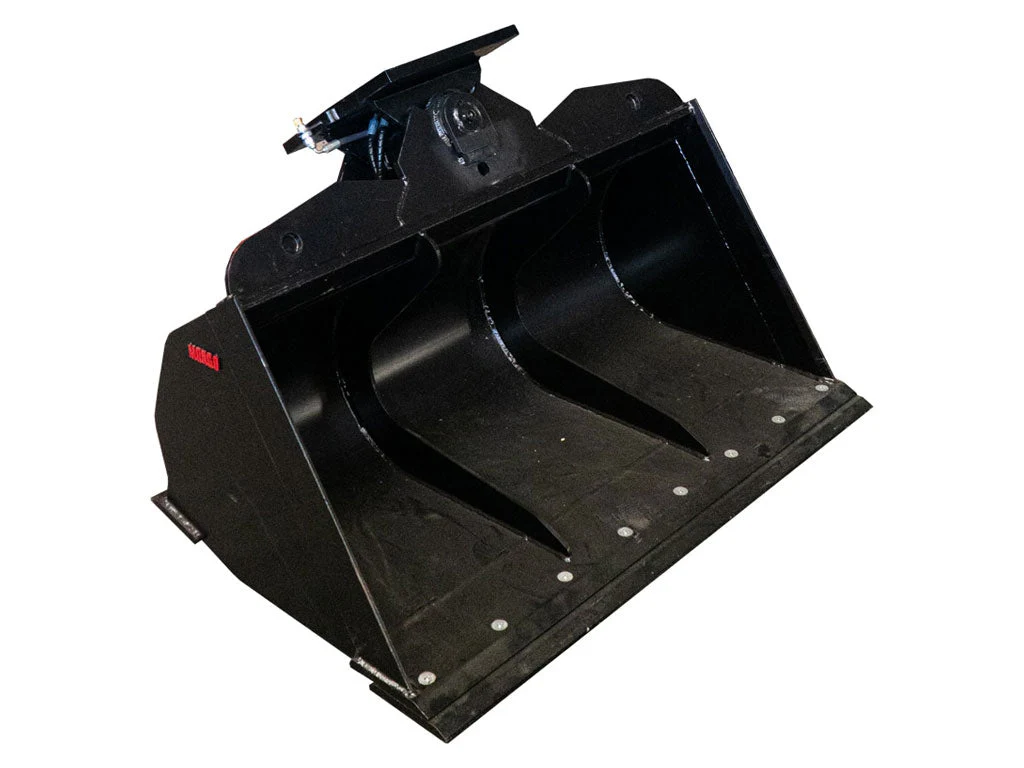

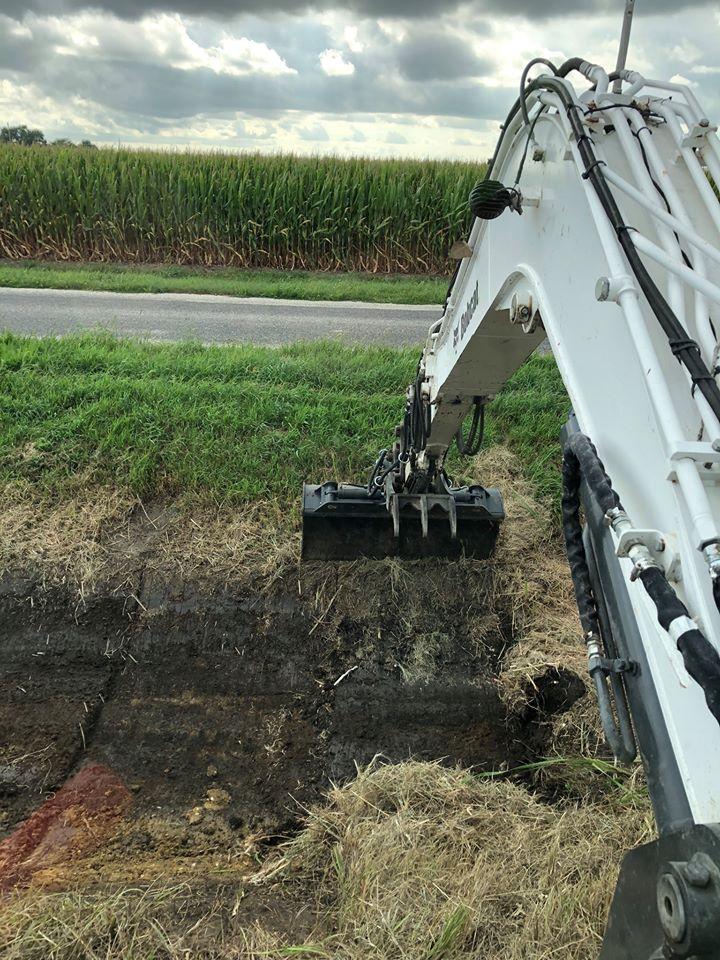

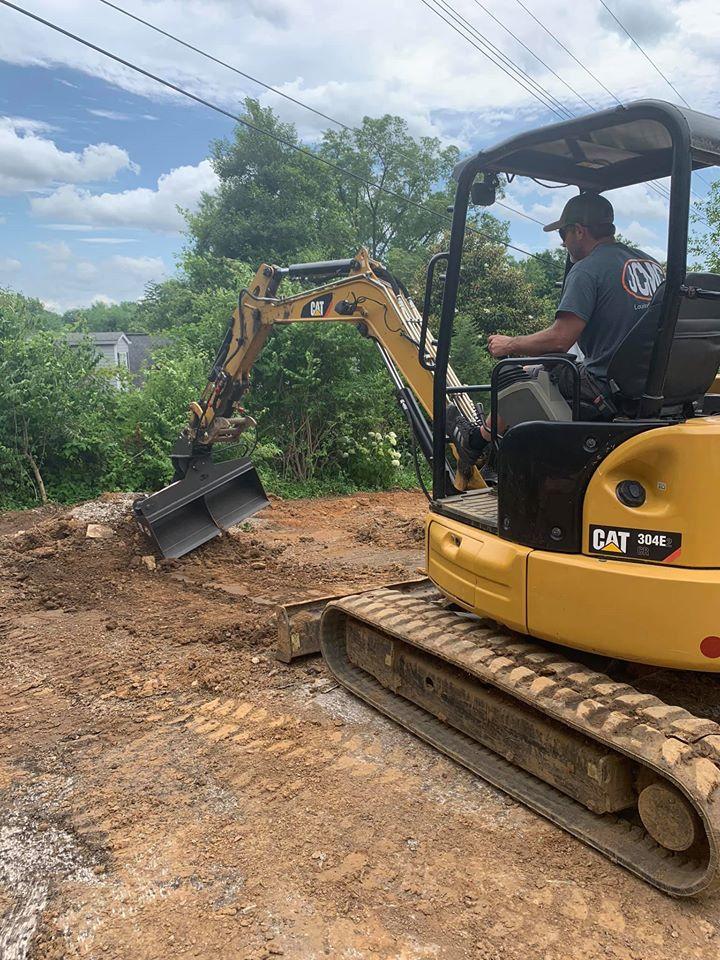

The Mongo Tilt Bucket gives you the versatility to dig hard-to-reach areas and extreme angles. This two-way 45 degree tilting bucket gives you 90 degrees of digging freedom. Whether digging pools, ponds, sidewalks, foundations, hardscapes, utility trenches, swales, or drainage ditches the Mongo Attachments Hydraulic Tilt Bucket will get the job done faster and more precisely.
What Is Included With A Mongo Attachments Hydraulic Tilt Bucket?
Mongo tilt buckets come ready to use, with the appropriate length hoses and flat-face couplers included. Installation is a simple as attaching the hoses and mounting the bucket to the excavator coupler. At Mongo we custom build each mount, tailor-made for your excavator. You can be digging with your Mongo tilt bucket within minutes of receiving it. Mongo Tilt Buckets include a reversible/replaceable Hardox cutting edge with flush-mount bolts. Models all feature a built-in Hardox back grading edge.
Tilt Bucket Features:
- 45 degree tilt in both directions
- Sizes 42″ and up have dual tilt cylinders
- Sizes 50″ and up have a welded on back grading edge
- Bolt-on, reversible, HARDOX cutting edge
- Hydraulic hoses and connectors included for plug and play setup
- Machine specific coupler included
* WE WILL CONTACT YOU FOR YOUR MACHINE INFORMATION
| BUCKET |
COMPATIBLE MACHINE SIZE |
STRUCK CAPACITY |
HEAPED CAPACITY |
LBS. NO MOUNT |
| 54" TILT | 8-16 TON | 13.5 CU FT | 18.9 CU FT | 1040 |
COMMON MOUNTINGS
| TAG / CP / WAIN ROY ORIGINAL | |
| 2.5" T-PIN QUICK COUPLER (QC33/35) | |
| OEM PIN ON | |
| NO COUPLERS | |
| WERK BRAU SPRING AND HYDRAULIC COUPLERS | |
| WAIN ROY SPRING AND HYDRAULIC COUPLERS | |
| JRB SPRING AND HYDRAULIC COUPLERS | |
| CP SPRING AND HYDRAILIC COUPLERS | |
| TAG SPRING AND HYDRAULIC COUPLERS |
HOSES
HOSE MEASUREMENT: Measure the distance between the quick coupler fitting and the bucket pin in the bottom of the stick. Then add 12" for the movement and rotation of the attachment.
FITS
| SIZE RECOMENDATONS |
|
EXCAVATOR | 2204.62 LBS X |
| BUCKET SIZE | SPEC | MACHINE LBS |
MT CLASS |
| 54" |
DUAL CYLINDER BACK DRAG EDGE |
18000-33000 LBS. |
COMMON MACHINE MATCH UPS
| KUBOTA | |
| 54" TILT BUCKET | |
| JOHN DEERE | |
| 54" TILT BUCKET | 110, 290, 120, 130, 135 |
| BOBCAT | |
| 54" TILT BUCKET | E88 |
| TAKEUCHI | |
| 54" TILT BUCKET | TB280,TB285,TB290 |
| YANMAR | |
| 54" TILT BUCKET | SV100 |
| CAT | |
| 54" TILT BUCKET | 311, 312, 314 |
| SANY | |
| 54" TILT BUCKET | SY135 |
| CASE | |
| 54" TILT BUCKET | CX120, CX130, CX135 |
| NEW HOLLAND | |
| 54" TILT BUCKET | EC110, E130 |
| HYUANDIA | |
| 54" TILT BUCKET | R140 |
| HITACHI | |
| 54" TILT BUCKET | EX90, 110, ZX120, ZX130, ZX135 |
VIDEO
SPECS
| WIDTH | 54" |
| DEPTH | |
| HEIGHT | |
| HEIGHT W/O MOUNT | |
| BKT VOLUME CU FT | |
| DEGREE ANGLE | 45 |
| WEIGHT W/ MOUNT (ESTIMATED) | LBS |
|
WEIGHT NO MOUNT |
|
| GPM | |
| PSI | |
| CYLINDERS | 2 |
| MACHINE LB | 18000-33000 |
- • Built for up to 16 T Machines
- • Weight without mount: 1040 lbs.
- • 45 degree tilt in both directions
- • Dual Tilt Cylinders
- • Bolt-on, reversible HARDOX cutting edge with recessed bolts
- • Welded on back grading edge
- • Custom mounting coupler and hoses included for Plug-and-Play setup
MOUNTINGS
- TAG / CP / GANNON
- OEM PIN ON
- OTHER
