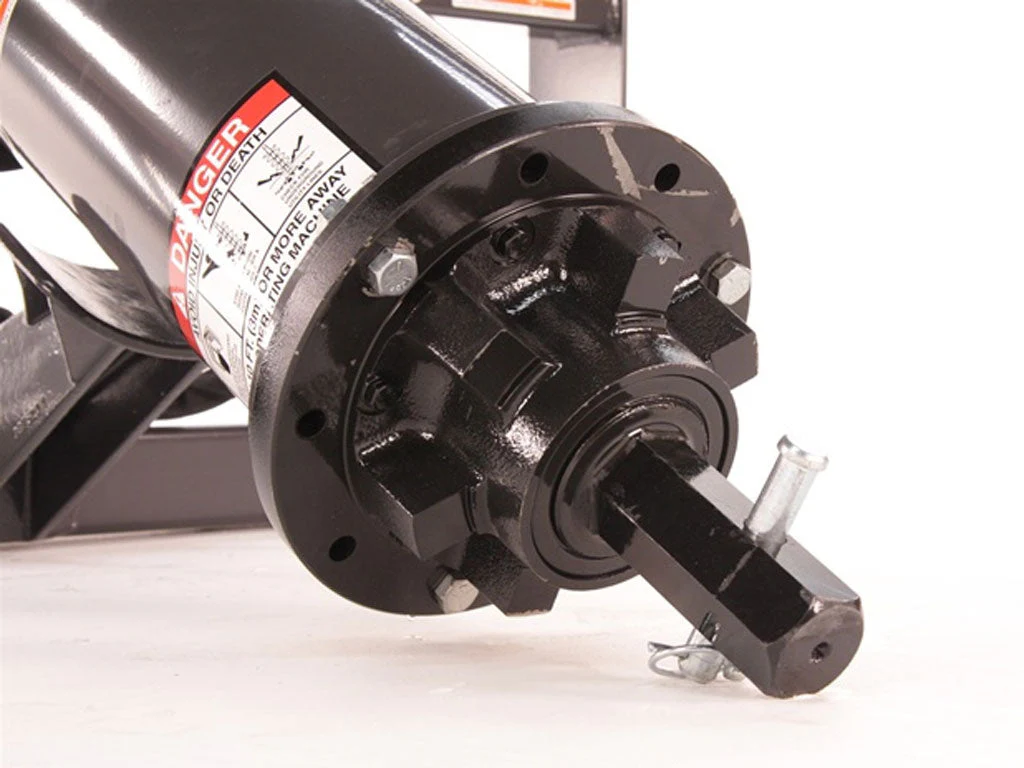

Paladin Auger Drive for Skid Steer

Paladin Auger Drives feature a wide variety of auger diameters, lengths and styles for every digging application. Comes with various mounts available for most applications. All X Series hydraulic motors drive the auger through a sealed planetary gear reduction. The heavy-duty, all-gear design gives these units a long life with minimal maintenance and service costs. X Series drive units are completely sealed, with all moving components running in oil for total lubrication on a constant basis. All models feature reverse rotation for quick back-out when obstructions are encountered. The system's hydraulic relief valve protects the units from damage when the auger hits large, immovable objects. This product is also available CE certified.

**CALL FOR MOUNTING PRICES

• All X Series hydraulic motors drive the auger through a sealed planetary gear reduction
• The heavy-duty, all-gear design gives these units a long life with minimal maintenance and service costs
• X Series drive units are completely sealed, with all moving components running in oil for total lubrication on a constant basis
• Features reverse rotation for quick back-out when obstructions are encountered
• The systems' hydraulic relief valve protects the units from damage when the auger hits large, immovable objects

THINGS TO CONSIDER BEFORE SELECTING AN AUGER DRIVE

• When selecting an auger drive you will need to match to the recommended GPM and Pressure specifications shown for the drive to your prime mover.
• When deciding which model auger drive you need, please note the different model numbers for each drive. The larger model numbers will give you more torque and the smaller model numbers will give you more speed when operating within the recommended flow (GPM) range specified for each model.
• If you plan to dig holes in hard, compacted, or frozen soils, you should consider selecting a larger model as it will give you more torque. The same is true if you plan to use larger bits like the 36” versions. They need more torque than the smaller bits.
• If speed and production are most important and you are using smaller bits, a smaller model drive will give you more speed than the larger models allowing you to dig faster.



SPECIFICATIONS

MODEL	X975D	X1475D
ORDER#	124803, 124804	124805, 124806
FLOW RANGE	6-15 GPM	10-25 GPM
SHIP LB	405 LB	407 LB
SPEED @ 12 GPM	75 RPM	49 RPM
SPEED @ 15 GPM	95 RPM	61 RPM
TORQUE @ 3000 PSI	1500 FT LB	2377 FT LB
TORQUE @ 3500 PSI	1713 FT LB	2630 FT LB
MAX BIT	24"	30"



MODEL	X1975D	X2475D
ORDER#	124807, 124808	124809, 124810
FLOW RANGE	15-30 GPM	20-35 GPM
SHIP LB	409 LB	411 LB
SPEED @ 20 GPM	79 RPM	56 RPM
SPEED @ 24 GPM	84 RPM	67 RPM
TORQUE @ 3000 PSI	2769 FT LB	3451 FT LB
TORQUE @ 3500 PSI	3044 FT LB	3821 FT LB
MAX BIT	36"	36"



MODEL	3000 PSI TORQUE	15 GPM RPM	24 GPM RPM	LBS
X975	1500	89	NA	405
X1475	2377	60	NA	407
X1975	2769	49	78	409
X2475	3451	NA	63	411
X3375	4279	NA	45



MODEL	GPM RANGE	PSI MAX	PSI CONTINUOUS
X975	6 - 15	3500	3000
X1475	10 - 25	3500	3000
X1975	15 - 30	3500	3000
X2475	20 - 35	3500	3000
X3375	18 - 30	3500	3000

• X Series drive units are completely sealed with all moving components running in oil for total lubrication on a constant basis
• The X Series hydraulic motor drives the auger through a sealed planetary gear reduction
• The heavy duty all gear design gives these units a long life with minimal maintenance and service costs
• All models feature reverse rotation for quick back-out when obstructions are encountered
• The systems’ hydraulic relief valve protects the units from damage when the auger hits large immovable object

SHIPPING

Typically ships in (3-5) days. If Back-ordered (3-6) weeks.
