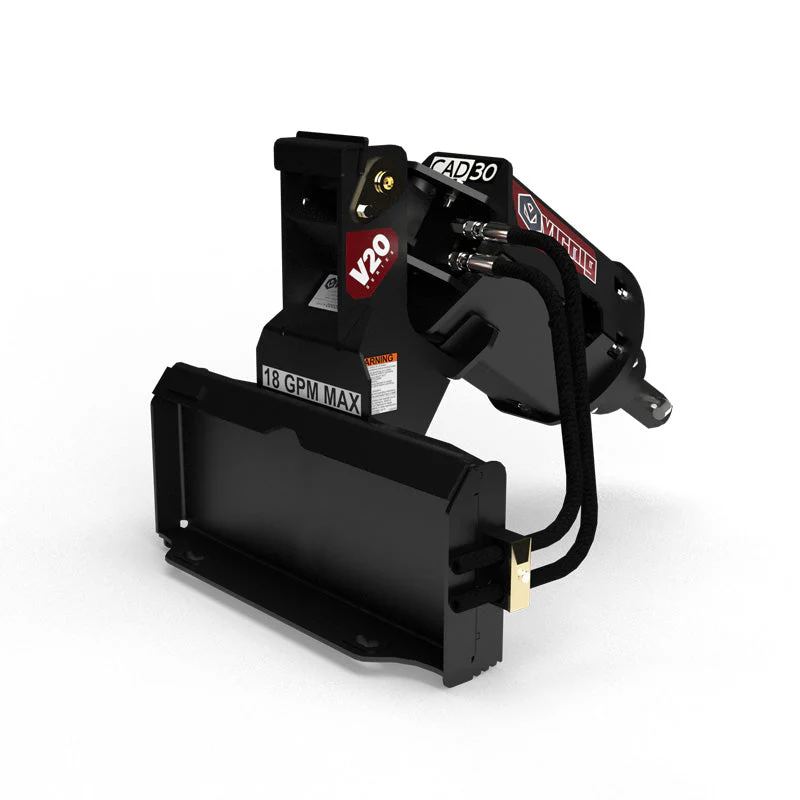

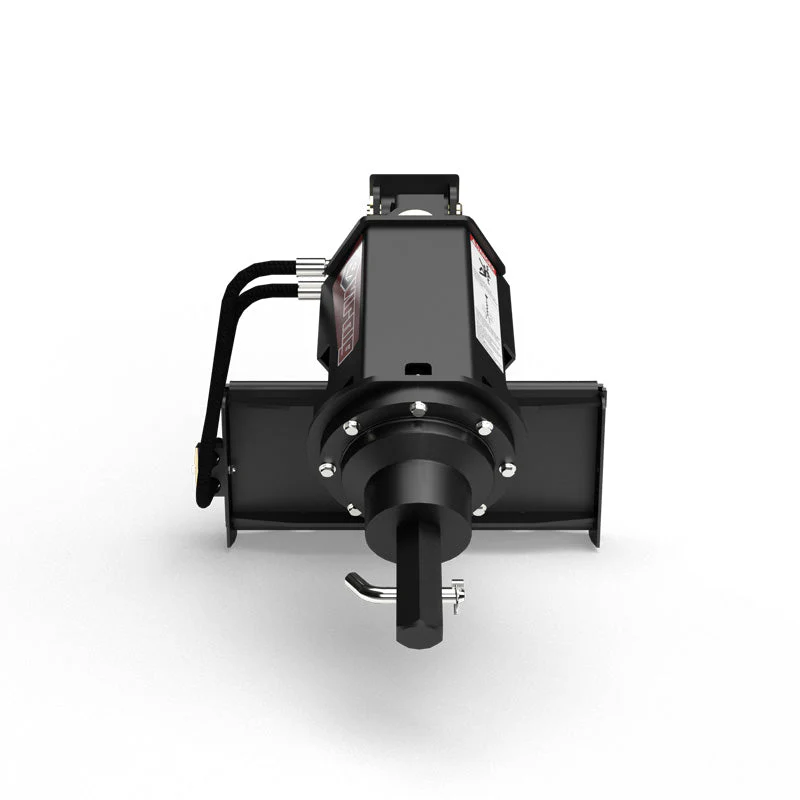

Virnig V20 Auger Drive for Mini Skid Steer

The Virnig V20 Auger Drive for Mini Skid Steer is a compact, high-torque solution built for landscapers, fence installers, and rental fleets that need deep, reliable drilling with small loaders.

• Output shaft options: Multiple configurations—2" Hex and 2 9/16" Round outputs on AUG30/AUG36 models, and 2" Hex on AUG36HT—for broad auger-bit compatibility.
• Maximum bit diameter: Standard/tree holes up to 30" on AUG30 and up to 36" on AUG36/AUG36HT, enabling a wide range of hole sizes in one drive.
• Rock bit compatibility: Rock auger bits supported up to 12" on AUG30 and up to 18" on AUG36/AUG36HT for tougher soils.
• Hydraulic drive protection: Direct-drive motor paired with hydraulic pressure relief protects the system while delivering consistent power.
• Planetary reduction: Built for longevity, delivering steadier torque and fewer wear cycles during long drilling sessions.
• Bi-directional rotation: Allows forward and reverse drilling, reducing bit binding and making bit changes and extractions smoother.
• Top-mounted hose routing: Hoses routed from the top of the housing to enable deeper drilling with longer bits and reduce hose wear.
• Frame reach and bit length: Robust frame design supports 4' long bits and accommodates loader hinge heights of 80+ inches for tall applications.
• Model range and performance: Three configurations—AUG30, AUG36, and AUG36HT—with tailored flow ranges (AUG30: 10–18 GPM; AUG36: 15–25 GPM; AUG36HT: 15–27 GPM) and corresponding speeds and torque to match your hydraulic setup.
• Weight and mounting versatility: Approximate weight 150–305 lbs across models; designed for easy integration with common mini skid steer mounting options.

The V20 auger drive is designed to maximize drilling depth, hole quality, and uptime on jobsites. Whether you’re installing fence posts, setting deck footings, or planting trees, this drive delivers strong, reliable torque across a range of soils—from sandy loam to stubborn clay. The combination of top-hose routing, bi-directional rotation, and a robust planetary reduction helps you work faster with fewer interruptions. With three model variants (AUG30, AUG36, AUG36HT) and multiple output options, you can tailor the unit to your specific auger bits and loader configuration, making it an adaptable choice for rental fleets and professional crews operating in tight spaces or near established structures.

MODEL	AUG30	AUG30	AUG36	AUG36	AUG36HT
Output	2″ Hex	2 9/16″ Round	2″ Hex	2 9/16″ Round	2″ Hex
Recommended Flow Rate (GPM)	10-18	10-18	15-25	15-25	15-27
Maximum Bit Diameter (Inches)	30	30	36	36	36
Torque @ 3000 PSI (ft.-lbs.)	2,205	2,205	2,730	2,730	3,345
Speed @ 14 GPM	58	58
Speed @ 20 GPM			67	67	55
Weight (lbs.)	250	250	280	280	305

MODEL	AUG30	AUG36	AUGHT36
Overall Height/Width (Inches)	26.3 / 10.8	25.1 / 10.8	27.0 / 11.5
Maximum Standard/Tree Auger Bit Size (Inches)	30	36	36
Maximum Rock Auger Bit Size (Inches)	12	18	18
Recommended Flow Rate (GPM)	10-18	15-25	15-27
Output Shaft Options	2″ Hex & 2 9/16″ Round	2″ Hex & 2 9/16″ Round	2″ Hex
Output Torque @ 2000 PSI (ft-lbs)	1470	1820	2230
Output Torque @ 2500 PSI (ft-lbs)	1835	2275	2790
Output Torque @ 3000 PSI (ft-lbs)	2205	2730	3345
Output Torque @ 3500 PSI (ft-lbs)	2570	3190	3905
Output Speed @ 16 GPM (RPM)	67	54	44
Output Speed @ 20 GPM (RPM)	–	67	55
Output Speed @ 24 GPM (RPM)	–	81	66
Approximate Weight (Pounds)	150	150	175
