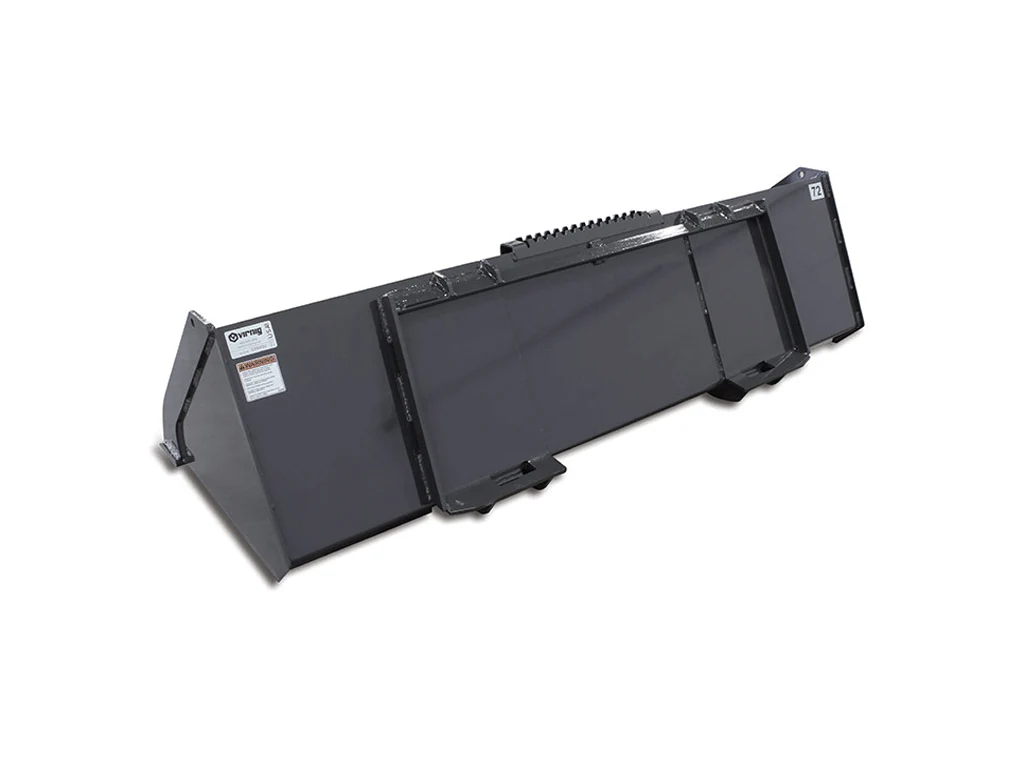

Virnig V50 Low Profile Dirt Bucket (SSL)(CTL)

Meet the Virnig V50 Low Profile Dirt Bucket—an ultra-durable, universal-mount attachment designed for SSL and CTL loaders. Built for tight spaces, it combines toughness with enhanced edge visibility to improve grading, digging, and material handling on challenging sites.

• Universal Mount: Fits most skid steer loaders and compact track loaders for versatile use across multiple machines.
• Grade 50 Steel Construction: Proven durability that resists wear and impact in dirt, clay, and mixed-material jobs.
• Low-Profile Design with Extended Bottom: Optimized for visibility and cleaner edge engagement when working near trench walls or obstacles.
• Edge & Wear Options: 3/4" x 6" weld-on cutting edge with holes for optional edges; bolt-on cutting edge (BOCE) for extended life; Serrated Edge (SE) for chiseling; Weld-on Teeth (WOT) for breaking up compact soil; Optional Side Cutters; Reversible edge options available; note: not compatible with toothbars.
• Shell & Side Plate Details: Shell thickness 0.19" on smaller sizes and 0.25" on larger sizes; side plates 0.25" thick, with 1/2" x 4" wear bars under the bucket (2 bars on smaller models, 3 on larger).
• Size, Capacity & Weight: Five width options from 61.5" to 85.5" (DHV 60EX to DHV 84EX); Struck capacity 11.9–17.0 cu ft; Heaped capacity 14.3–20.4 cu ft; Approximate weight 460–655 lb depending on model.
• Grading & Edge Enhancements: Optional Grading Bend with Rolled Inside improves reverse grading and makes clean-out easier than a standard profile bucket.
• Shipping & Availability: In-stock items typically ship in 3–5 days; non-stock configurations may take 4–6 weeks.

The Virnig V50 Low Profile Dirt Bucket is ideal for site grading, trench backfilling, landscaping, and material transfer in confined spaces. Its robust build—coupled with adaptable edge options and a universal mount—lets you tailor performance to soil conditions, from hard, compacted ground to looser fill. Choose the right size for your loader and work scenario to maximize visibility, edge control, and bucket life, while minimizing downtime and maintenance.

Models	DHV 60EX	DHV 66EX	DHV 72EX	DHV 78EX	DHV 84EX
Overall Bucket Width (Inches)	61.5	67.5	73.5	79.5	85.5
Bucket Depth (Inches)	34.6
Bucket Height (Inches)	20.5
Struck Capacity (Cubic Feet)	11.9	13.1	14.4	15.7	17.0
Heaped Capacity (Cubic Feet)	14.3	15.7	17.3	18.8	20.4
Bucket Back Angle (Degrees)	66
Shell Thickness (Inches)	0.19	0.19	0.25	0.25	0.25
Side Plate Thickness (Inches)	0.25	0.25	0.25	0.25	0.25
Structural Wear Bars Under Bucket (1/2″ x 4″)	2	2	2	3	3
Approximate Weight (Pounds)	460	490	575	620	655
Recommended Loader Capacity	Less than 2400 pounds
