$2,156.00The Story

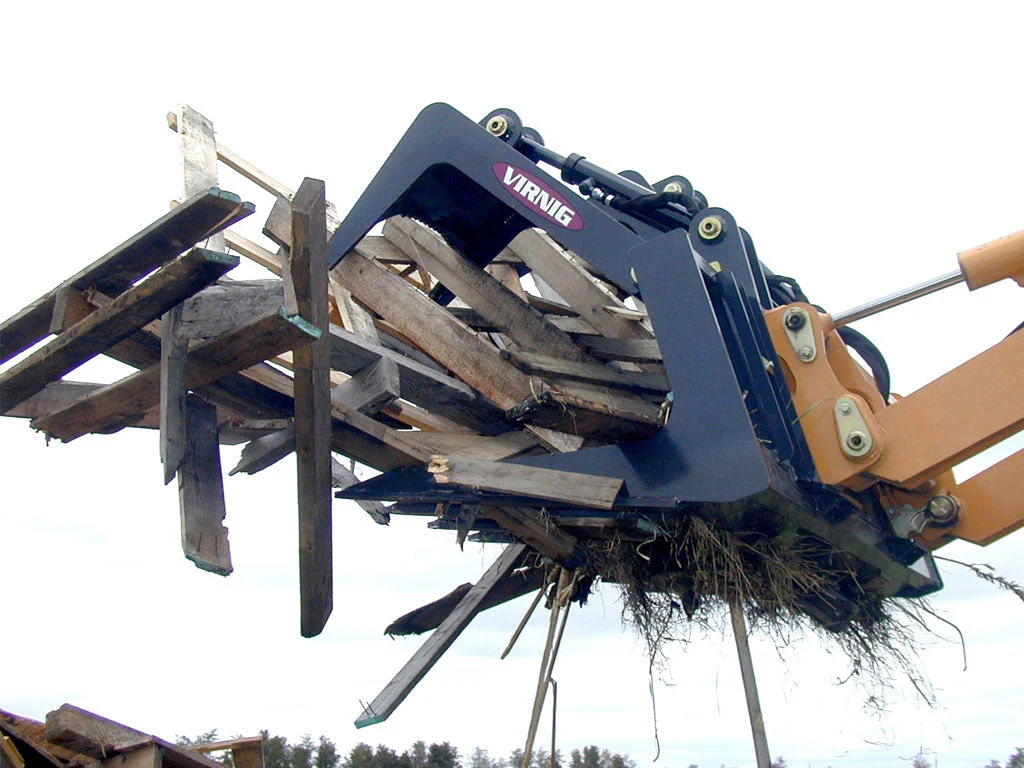

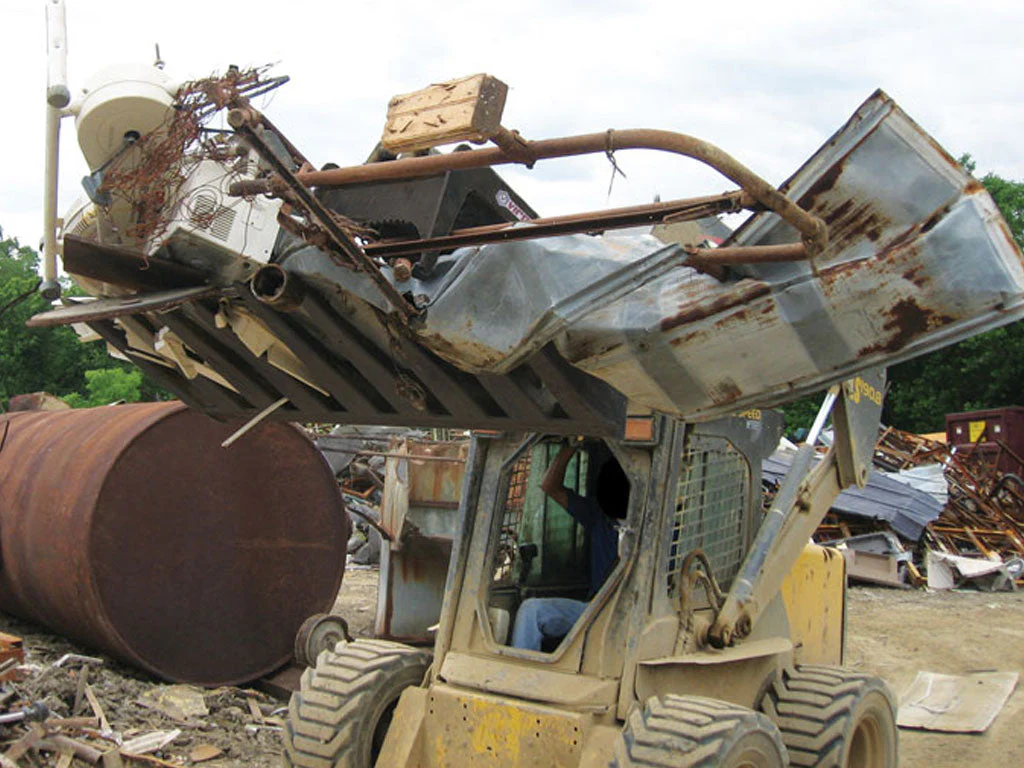

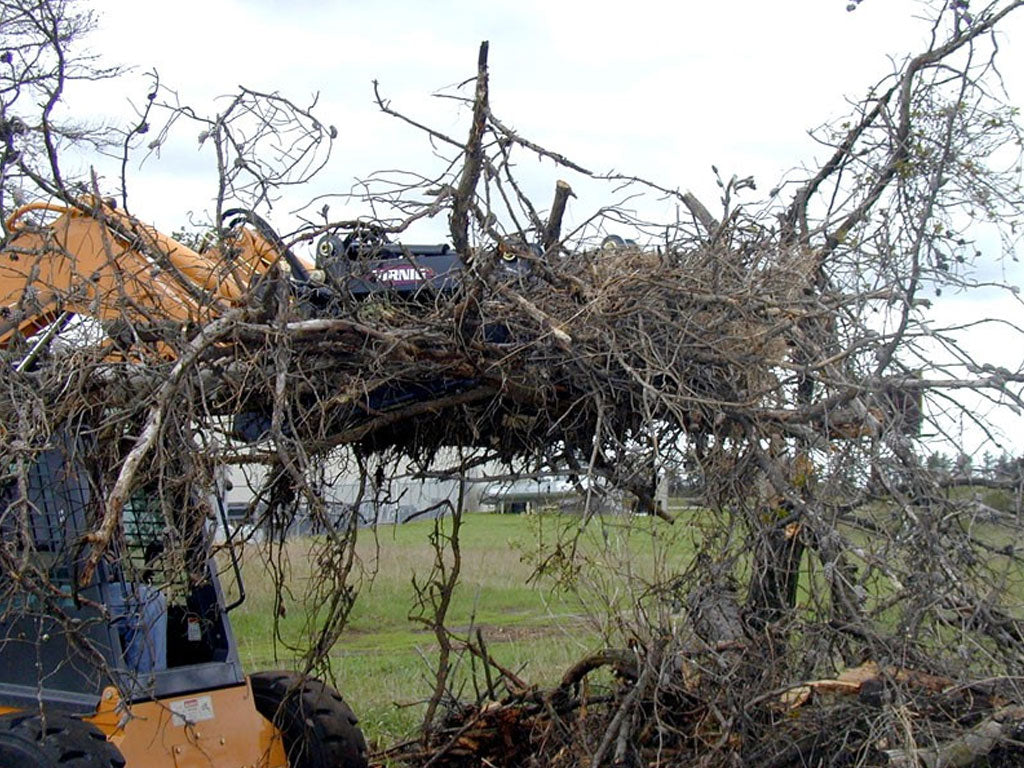

The Virnig V50 Skeleton Tine Grapple (SSL) is a two-jaw, independent hydraulic grapple designed for skid steers and CTLs. It clamps uneven debris with precision, making cleanup, loading, and material handling faster and more secure.
- Independent dual-jaw design: Each jaw operates with its own cylinder, allowing true independent clamping for oddly shaped loads and uneven surfaces.
- Rugged tine construction: Every tine is a single piece of 1/2" Grade 80 steel from tip to top brace for maximum rigidity and long-term durability.
- Gusseted tines with no cross member: Built for superior material penetration while maintaining strength and clearance.
- Durable hydraulic cylinders: 2" bore and 8.375" stroke with NitroSteel® cylinder rods resist corrosion, dents, and flake while delivering consistent force.
- Low-maintenance pivots: Teflon® coated bushings lubricate all pivot locations; greasable 1.25" diameter cylinder pins and 1.563" hinge pins simplify service.

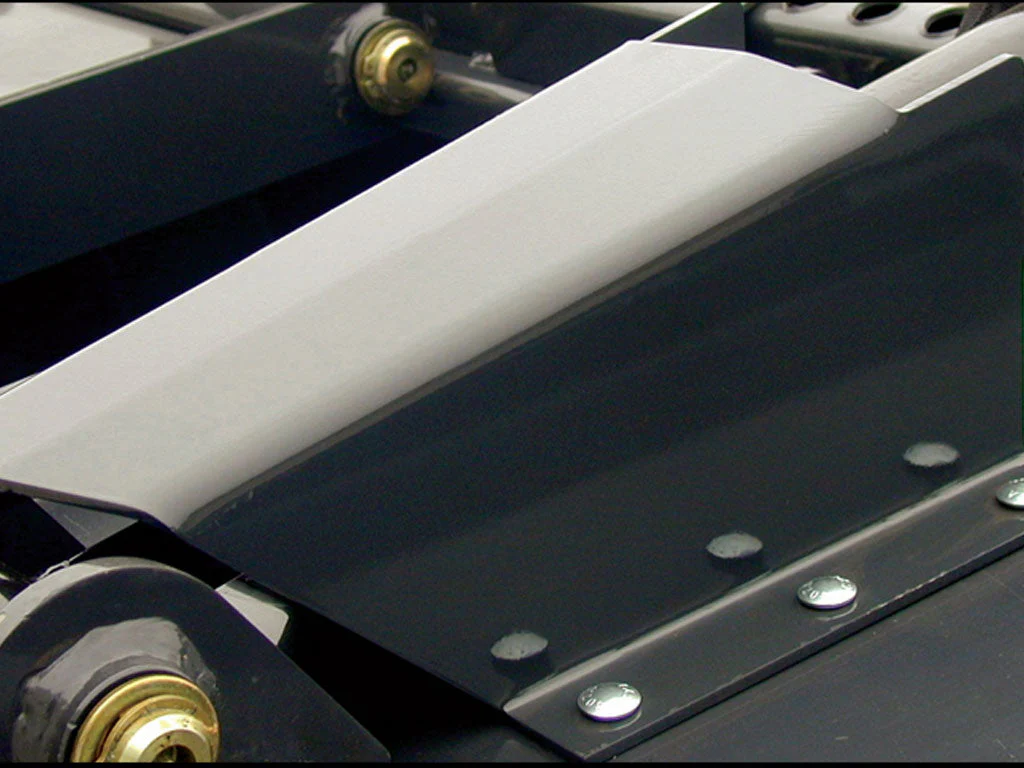

- Replaceable bolt-on step: Laser-cut steel step with an aggressive pattern provides reliable footing and grip in tough conditions.
- Protective design: Standard cylinder guards help shield hydraulic components during demanding work.
- Ready-to-install mounting kit: Includes universal skid steer mounting hoses, couplers & fittings for quick, compatible setup.
- Size options and specs: Available in 66"–90" widths (overall 68"–92"), depth 36.5", jaw opening 36.4", with weights from 910–1050 lbs depending on size; ROC > 1500 lbs; compatible with loaders rated over 1500 lbs.
- Fast availability: In-stock units typically ship in 3–5 days, with non-stock items shipping in 4–6 weeks.
With two independent grapples that reach the tine tips for fine work, this attachment keeps oddly-sized objects securely clamped for transport and placement. The combination of one-piece steel tines, gusseted construction, and NitroSteel rods delivers reliable performance in demanding environments, from landscaping and debris cleanup to demolition and site prep. Whether you’re lifting brush, rocks, or mixed debris, the V50 Skeleton Tine Grapple helps you work more efficiently, reduce re-grabs, and improve control during loading and stacking.
| Model | 66" | 72" | 78" | 84" | 90" |
| Overall Width (in) | 68.0 | 74.0 | 80.0 | 86.0 | 92.0 |
| Depth (in) | 36.5 | 36.5 | 36.5 | 36.5 | 36.5 |
| Height: Overall / Bucket (in) | 27.5 / 21.1 | 27.5 / 21.1 | 27.5 / 21.1 | 27.5 / 21.1 | 27.5 / 21.1 |
| Grapple Jaw Opening (in) | 36.4 | 36.4 | 36.4 | 36.4 | 36.4 |
| Number of Tines | 8 | 9 | 10 | 10 | 11 |
| Space Between Tines | 9.5 | 8.4 | 8.7 | 9.3 | 8.5 |
| Weight (lbs) | 910 | 950 | 990 | 1010 | 1050 |
