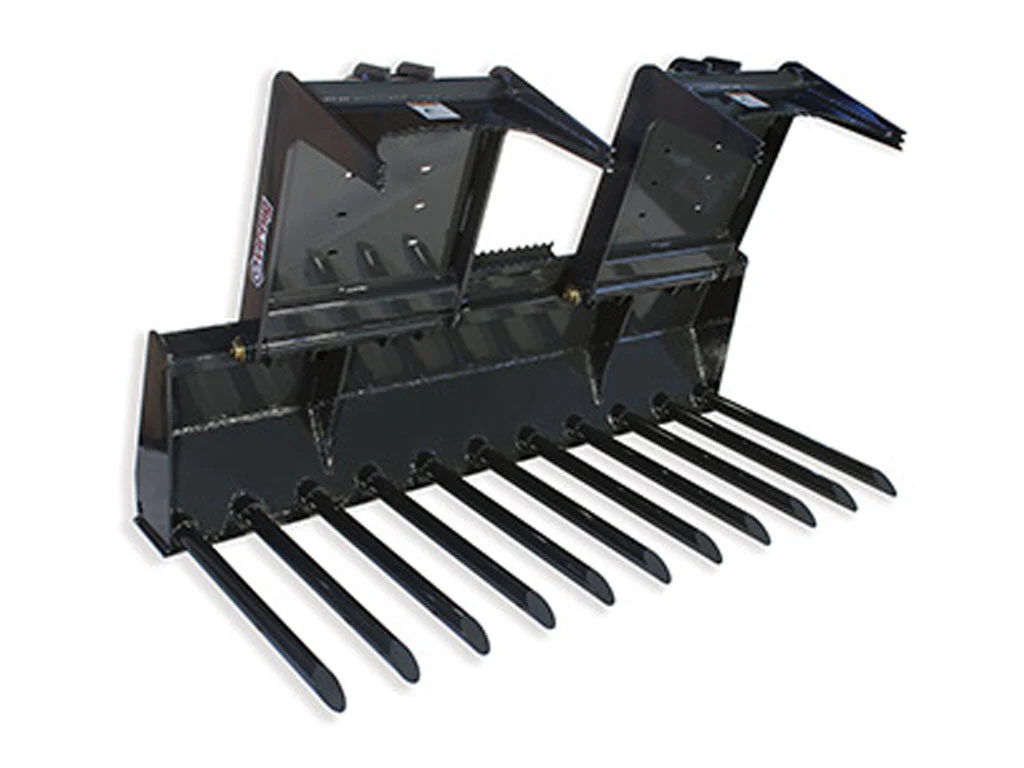

Virnig | V50 Tine Fork Grapple (SSL) (CTL)

The Virnig V50 Tine Fork Grapple (SSL) (CTL) is a rugged two-jaw skid steer attachment built to securely handle debris, brush, manure, and other irregular loads. With independent hydraulic jaws and durable construction, it’s designed for operators who need confident grip and versatile performance on tough job sites.

• Universal mounting with included hardware: Comes with universal skid steer mounting hoses, couplers & fittings for quick, compatible installations on SSL and CTL machines.
• Independent two-jaw hydraulic operation: Each jaw runs on its own cylinder, delivering balanced clamping and consistent pressure across uneven loads.
• No cross member for better penetration: Absence of a cross member at the tine tips lets you reach and grab material more effectively, even in dense debris.
• Robust frame with vertical braces: Two 1/2" thick vertical braces increase strength while maintaining access for loading and dumping.
• High-strength cylinders and reliable components: 2.0" bore with 8.375" stroke nitro-coated hydraulic cylinders and corrosion-resistant NitroSteel® rod pistons for longer service life.
• Greasable pins and precision pivots: 1.25" cylinder pins and 1.563" hinge pins are greasable, with Teflon®-coated bushings at all pivot locations for smooth operation.
• Replaceable, heavy-duty tines and step: 2" diameter tines are replaceable; bolt-on step features a laser-cut steel pattern that grips in harsh conditions.
• Durable, service-friendly design: No cross member at tine tips enhances penetration, and the system is designed for straightforward maintenance and part replacement.
• Size options with clear specifications: Available widths include 60", 66", 72", and 78" (overall widths 61.3", 67.3", 73.3", 79.3"); weights range from 1040 to 1250 lb; jaw opening remains 38.2" across sizes; tine counts range from 9 to 12 with spacing between tines from 5.1" to 4.8".
• Operational note for certain loaders: There is a known clearance issue on M-Series Bobcat loaders when Cylinder Guards are installed and jaws are open; plan installation and clearance accordingly.

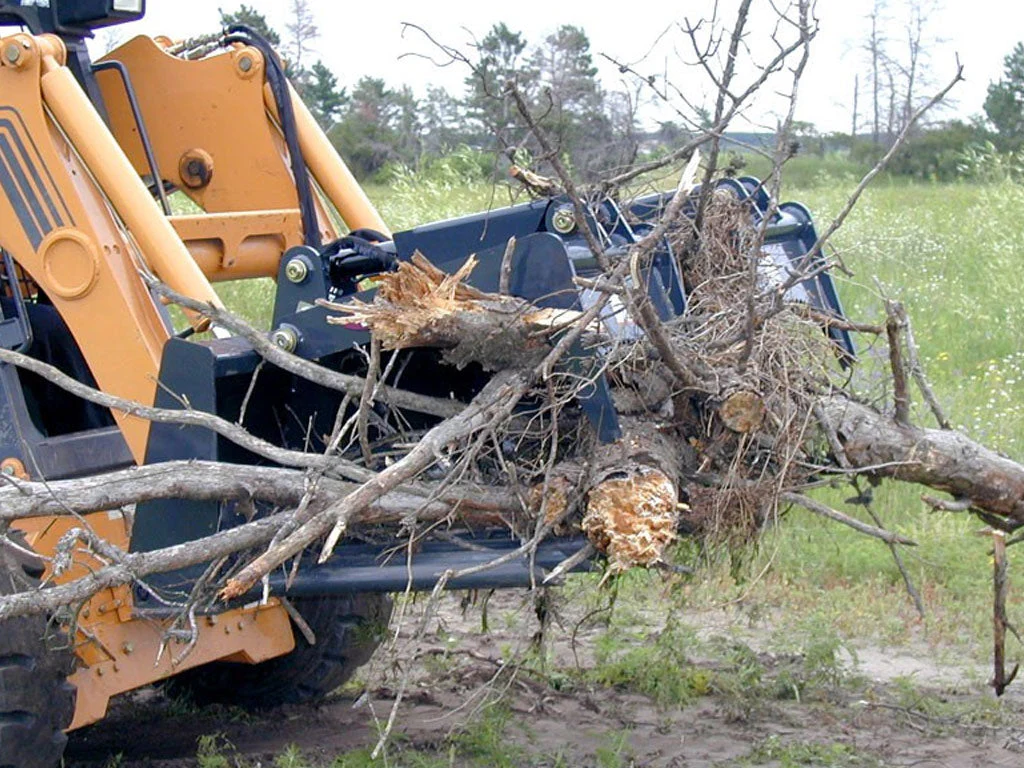

This attachment is ideal for farms, construction sites, landscaping, and waste handling where you need to securely grip irregular objects and transport them efficiently. It excels at grabbing debris with uneven surfaces, securely holding oddly shaped loads during transport, and penetrating dense material thanks to its optimized tine design. With multiple width options, you can tailor the V50 to your loader’s reach and bucket size, maximizing clamping power and productivity on every job.

Model	60"	66"	72"	78"
Overall Width (in)	61.3	67.3	73.3	79.3
Depth (in)	37.0	37.0	37.0	37.0
Height: Overall / Bucket (in)	28.5 / 21.8	28.5 / 21.8	28.5 / 21.8	28.5 / 21.8
Grapple Jaw Opening (in)	38.2	38.2	38.2	38.2
Number of Tines	9	10	11	12
Space Between Tines	5.1	5.0	4.9	4.8
Weight (lbs)	1040	1110	1180	1250
