Original: $3,678.00
-65%$3,678.00
$1,287.30The Story

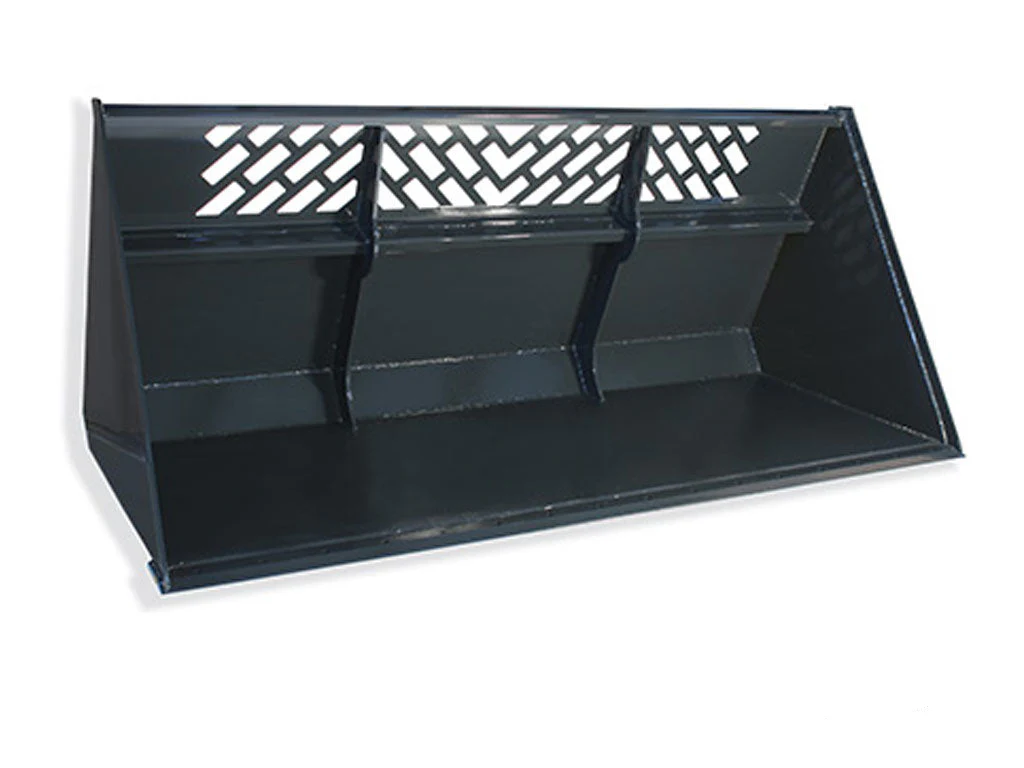

Designed for snow removal and light-material handling, the Virnig V60 Snow/Light Material Bucket (SSL) delivers high-volume capacity and dependable durability for skid steer operators. Its universal fit and thoughtful features make it a practical choice for daily, real-world jobsites.
- Available sizes and capacities: Four SBHV models (SBHV 78, SBHV 84, SBHV 96, SBHV 101) with corresponding overall bucket widths of 79.5", 85.5", 97.5", and 101.5"; bucket depth 45.5"; back height 40.5"; struck capacity from 40.1 to 52.2 cu ft and heaped capacity from 48.1 to 62.6 cu ft.
- Heavy-duty construction: 1/4" thick bucket shell and side plates, supported by two vertical 1/2" thick braces and a large upper cross member for long-term performance.
- Visibility and geometry: Windows in the bucket provide increased visibility to improve control and reduce spillage; back angle at 66° helps with load retention and efficient dumping.
- Wear protection and reinforcement: Structural wear bars under the bucket (1/2" x 4") across all sizes, plus a high-strength, 3/4" x 6" weld-on edge with pre-drilled holes for optional upgrades.

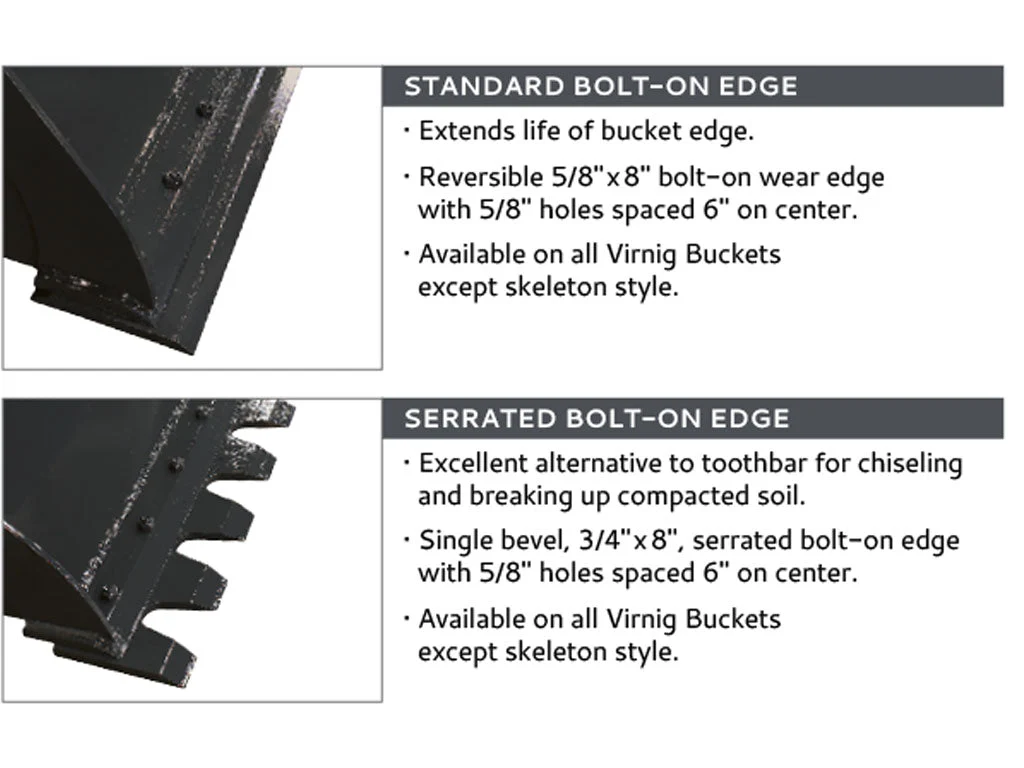

- Edge options to extend life: Bolt-on Cutting Edge (BOCE) available to extend bucket life; options include a reversible 5/8" x 8" wear edge (with 5/8" holes 6" on center) and a Serrated Edge (SE) for soil chiseling, also bolt-on with 5/8" holes 6" on center.
- Universal mounting: Built with a universal mount to fit most skid steer loaders, ensuring broad compatibility across fleets.
- Weight and loader guidance: Approximate weights range from 950 to 1,250 pounds depending on size; recommended loader capacity greater than 2,400 pounds for optimal performance.
This bucket is ideal for operators who tackle frequent snow removal or bulk handling of light materials like sand, topsoil, and gravel. The extended bottom and tall back maximize material per load, while reinforced shell and wear-edge options help you push through abrasive tasks without frequent replacements. If you’re upgrading equipment, the universal mount and configurable edge systems let you tailor the bucket to your typical job site challenges—whether you need more aggressive soil chiseling or longer edge life for repetitive dumping.
| Models | SBHV 78 | SBHV 84 | SBHV 96 | SBHV 101 | ||
| Overall Bucket Width (Inches) | 79.5 | 85.5 | 97.5 | 101.5 | ||
| Bucket Depth (Inches) | 45.5 | |||||
| Bucket Height (Inches) | 40.5 | |||||
| Window Height (Inches) | 12.0 | |||||
| Struck Capacity (Cubic Feet) | 40.1 | 43.2 | 49.4 | 52.2 | ||
| Heaped Capacity (Cubic Feet) | 48.1 | 51.8 | 59.3 | 62.6 | ||
| Bucket Back Angle (Degrees) | 66 | |||||
| Shell Thickness (Inches) | 0.25 | |||||
| Side Plate Thickness (Inches) | 0.25 | |||||
| Structural Wear Bars Under Bucket (1/2″ x 4″) | 5 | 5 | 5 | 5 | ||
| Approximate Weight (Pounds) | 950 | 1030 | 1180 | 1250 | ||
| Recommended Loader Capacity | Greater than 2400 pounds | |||||
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
Designed for snow removal and light-material handling, the Virnig V60 Snow/Light Material Bucket (SSL) delivers high-volume capacity and dependable durability for skid steer operators. Its universal fit and thoughtful features make it a practical choice for daily, real-world jobsites.
- Available sizes and capacities: Four SBHV models (SBHV 78, SBHV 84, SBHV 96, SBHV 101) with corresponding overall bucket widths of 79.5", 85.5", 97.5", and 101.5"; bucket depth 45.5"; back height 40.5"; struck capacity from 40.1 to 52.2 cu ft and heaped capacity from 48.1 to 62.6 cu ft.
- Heavy-duty construction: 1/4" thick bucket shell and side plates, supported by two vertical 1/2" thick braces and a large upper cross member for long-term performance.
- Visibility and geometry: Windows in the bucket provide increased visibility to improve control and reduce spillage; back angle at 66° helps with load retention and efficient dumping.
- Wear protection and reinforcement: Structural wear bars under the bucket (1/2" x 4") across all sizes, plus a high-strength, 3/4" x 6" weld-on edge with pre-drilled holes for optional upgrades.
- Edge options to extend life: Bolt-on Cutting Edge (BOCE) available to extend bucket life; options include a reversible 5/8" x 8" wear edge (with 5/8" holes 6" on center) and a Serrated Edge (SE) for soil chiseling, also bolt-on with 5/8" holes 6" on center.
- Universal mounting: Built with a universal mount to fit most skid steer loaders, ensuring broad compatibility across fleets.
- Weight and loader guidance: Approximate weights range from 950 to 1,250 pounds depending on size; recommended loader capacity greater than 2,400 pounds for optimal performance.
This bucket is ideal for operators who tackle frequent snow removal or bulk handling of light materials like sand, topsoil, and gravel. The extended bottom and tall back maximize material per load, while reinforced shell and wear-edge options help you push through abrasive tasks without frequent replacements. If you’re upgrading equipment, the universal mount and configurable edge systems let you tailor the bucket to your typical job site challenges—whether you need more aggressive soil chiseling or longer edge life for repetitive dumping.
| Models | SBHV 78 | SBHV 84 | SBHV 96 | SBHV 101 | ||
| Overall Bucket Width (Inches) | 79.5 | 85.5 | 97.5 | 101.5 | ||
| Bucket Depth (Inches) | 45.5 | |||||
| Bucket Height (Inches) | 40.5 | |||||
| Window Height (Inches) | 12.0 | |||||
| Struck Capacity (Cubic Feet) | 40.1 | 43.2 | 49.4 | 52.2 | ||
| Heaped Capacity (Cubic Feet) | 48.1 | 51.8 | 59.3 | 62.6 | ||
| Bucket Back Angle (Degrees) | 66 | |||||
| Shell Thickness (Inches) | 0.25 | |||||
| Side Plate Thickness (Inches) | 0.25 | |||||
| Structural Wear Bars Under Bucket (1/2″ x 4″) | 5 | 5 | 5 | 5 | ||
| Approximate Weight (Pounds) | 950 | 1030 | 1180 | 1250 | ||
| Recommended Loader Capacity | Greater than 2400 pounds | |||||
