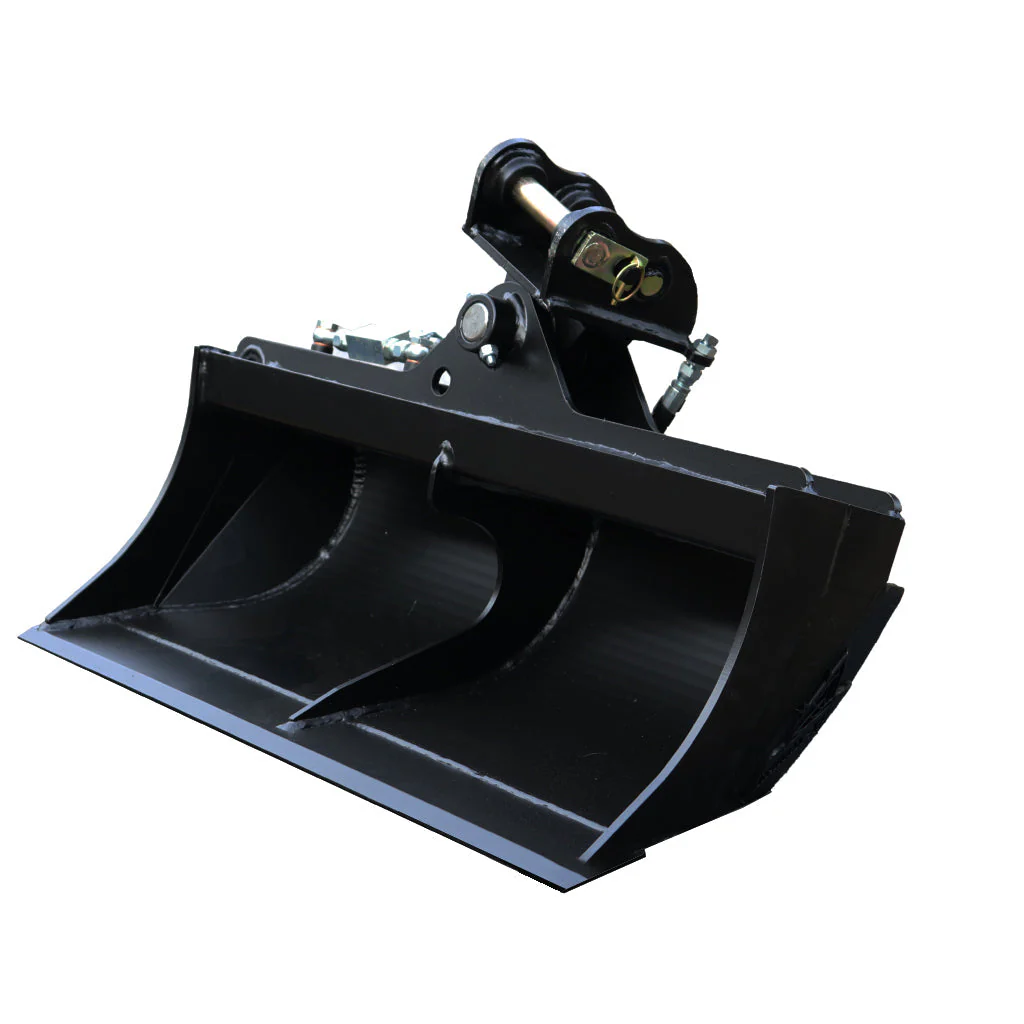

Yanmar ViO35 Tilt Grading Bucket - 48" / 1200mm

The Yanmar ViO35 Tilt Grading Bucket is a heavy‑duty 48" tilting bucket designed specifically for Yanmar ViO35 excavators. It uses the same hydraulic circuit as a thumb, enabling smooth tilting up to 45° left and 45° right (a total of 90°). Note: hydraulic hoses are not included—you’ll need to source the correct hoses to connect to your machine. When attached, this tilting ditching bucket speeds up shaping of complex forms, such as trenches and yard landscaping, by reducing the number of passes and repositions required on the job site.

• Compatibility: Specifically designed to fit Yanmar ViO35 excavators, ensuring a secure, precise connection.
• Tilting range: Allows 45° tilt to the left and 45° to the right (90° total) for controlled, exact grading around obstacles.
• Single Ram with check valve: Provides reliable tilt operation and helps hold position when not under pressure.
• Reinforced leading edge & wear plates: Built for durability in abrasive trenching and grading tasks, extending bucket life.
• Hydraulic hoses fitted up to tilting headstock: Hoses run up to the tilting headstock (hoses not included; source the correct hoses for your excavator).

Benefits: With a dedicated tilting grading bucket, you can achieve precise trench contours and yard grading more efficiently. The 90° tilt enables close working around irregular shapes, reducing the number of passes and operator fatigue. The reinforced edge and wear plates resist wear in tough soil and debris, while the single-ram design keeps maintenance simpler. When paired with the right hoses for your ViO35, this attachment integrates smoothly into your workflow, helping you get grading and ditching jobs done faster and with consistent results.
