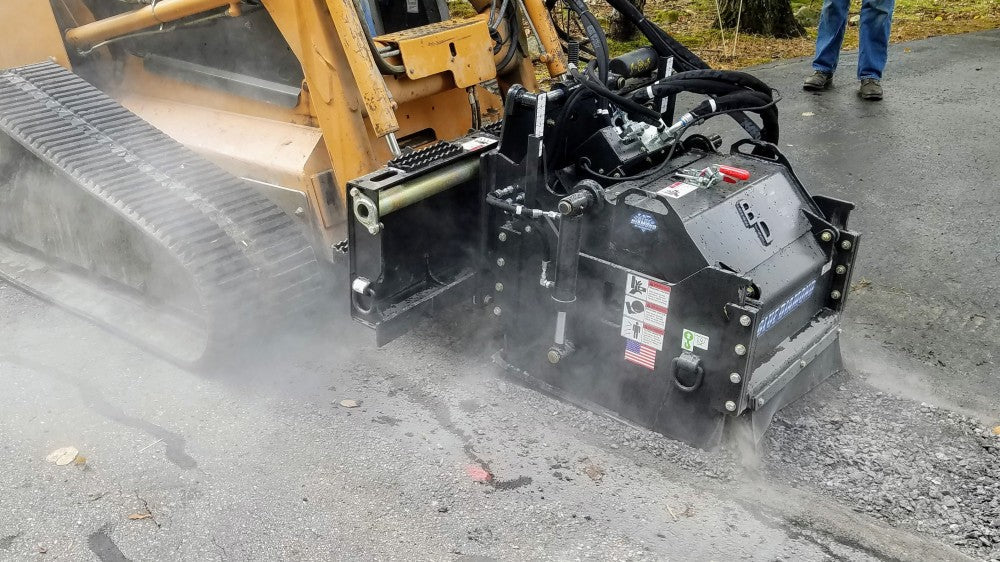

BLUE DIAMOND COLD PLANER FOR SKID STEER SEVERE DUTY

Designed for heavy-duty asphalt removal and road repairs, the Blue Diamond Severe Duty High Flow Cold Planer for skid steers combines trusted components with precise engineering to deliver reliable, high-performance milling in demanding environments.

Features

• High-Flow design: 30-45 GPM and 3,000-5,000 PSI for robust cutting power
• Hydraulic adjustment controls and hydraulic side shift for precise positioning
• High-torque planetary drive for dependable performance under load
• Drum construction includes a 1-1/2" thick drum tube; heavy drum weight reduces vibration
• Multiple drum sizes (18", 24", 30", 40") with varying tooth counts and up to 8" cutting depth
• Easy access tooth replacement; hard facing & stand-off blocks; water kit available; fine-cut drum option
• Rigorous overall build using trusted components (Sauer piston motor and Fairfield planetary hub in high-flow models)
• Primary applications: removing asphalt prior to overlay, widening shoulders, repairing potholes, restoring drainage lines, and mixing stabilizing agents into base
• Weight range by model from approximately 2,050 lb to 3,200 lb depending on drum size

Benefits

Achieve faster, more predictable pavement rehabilitation with reduced downtime thanks to a robust, vibration-averse design. The combination of hydraulic adjustment and side shift enables clean, controlled cuts along edges and curbs, while the high-torque planetary drive sustains performance under demanding workloads. With a range of drum sizes and tooth configurations, you can tailor the planer to your project—whether removing stubborn asphalt, repairing road shoulders, or embedding stabilizing agents for longer-lasting repairs. This planer is engineered to work with a variety of skid-steer machines and hydraulic configurations, making it a versatile choice for roadwork, parking lots, and industrial sites.

Part Number	Model	Number of Teeth	Mix-Max Flow	Mix-Max Pressure	Weight
160810-HP	18" Severe Duty	46	30-45 GPM	3000-5000 PSI	2,050 lbs
160815-HP	24" Severe Duty	56	30-45 GPM	3000-5000 PSI	2,300 lbs
160820	30" Severe Duty	66	30-45 GPM	2000-3500 PSI	2,770 lbs
160820-HP	30" Severe Duty	66	30-45 GPM	3000-5000 PSI	2,550 lbs
160825	40" Severe Duty	76	30-45 GPM	3000-5000 PSI	2,975 lbs
160825-HP	40" Severe Duty	76	30-45 GPM	3000-5000 PSI	3,000 lbs
160830-HP	40" Severe Duty	106	30-45 GPM	3250-5000 PSI	3,200 lbs
