BLUE DIAMOND High Flow Cold Planer for Skid Steer 40" to 48" wide

The BLUE DIAMOND High Flow Cold Planer is built for demanding asphalt removal and road prep on high-flow skid steer systems. With trusted components like a Sauer piston motor and a Fairfield planetary hub, it delivers durable performance and precise surface prep across wide milling widths. Designed for rental fleets and professional contractors, this planer balances power, reliability, and ease of maintenance for everyday job sites.

Features

• Grinding width: 40"–48" (large-area planing for faster coverage).
• Electronic adjustment controls for precise milling depth and quick setup.
• High-torque planetary drive for consistent milling performance under load.
• Heavy drum design with 5/8" thick drum tube to reduce vibration duringoperation.

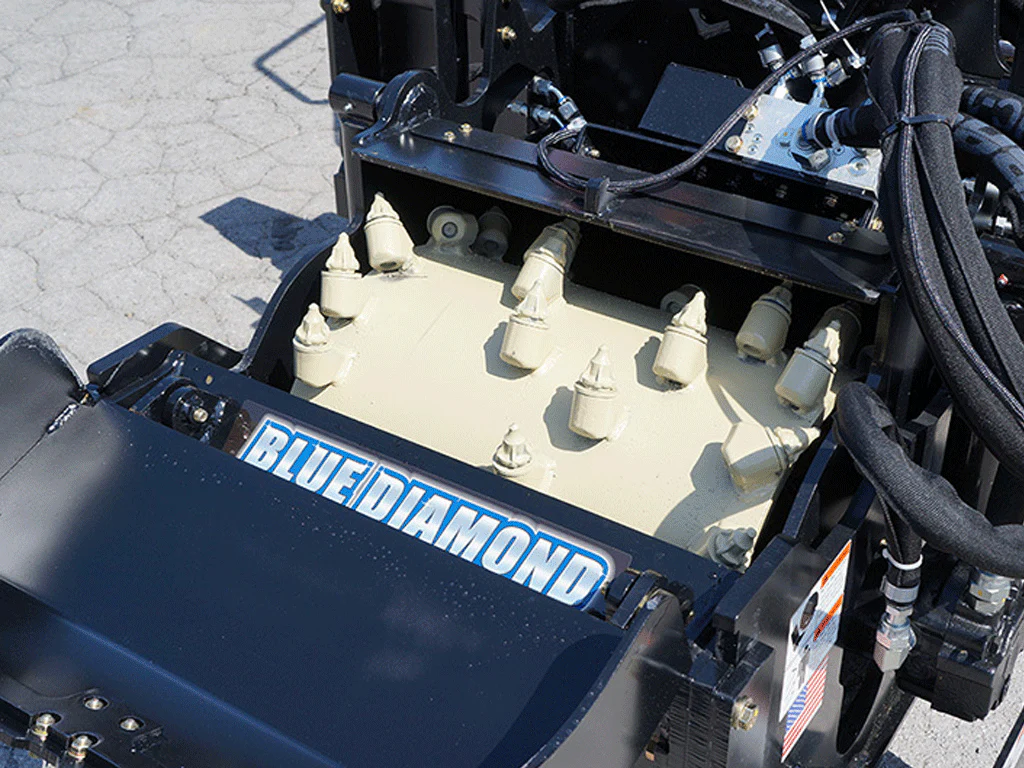

• Easy access tooth replacement to minimize maintenance downtime.
• Water kit available for dust suppression and cleaner cut when needed.
• Fine-cut drum option available for smoother finishes on repaired surfaces.
• Multi-width compatibility ranges from 16" to 48" with teeth counts from 38 to 90, depending on model.
• Reliable internal components: Sauer piston motor and Fairfield planetary hub.

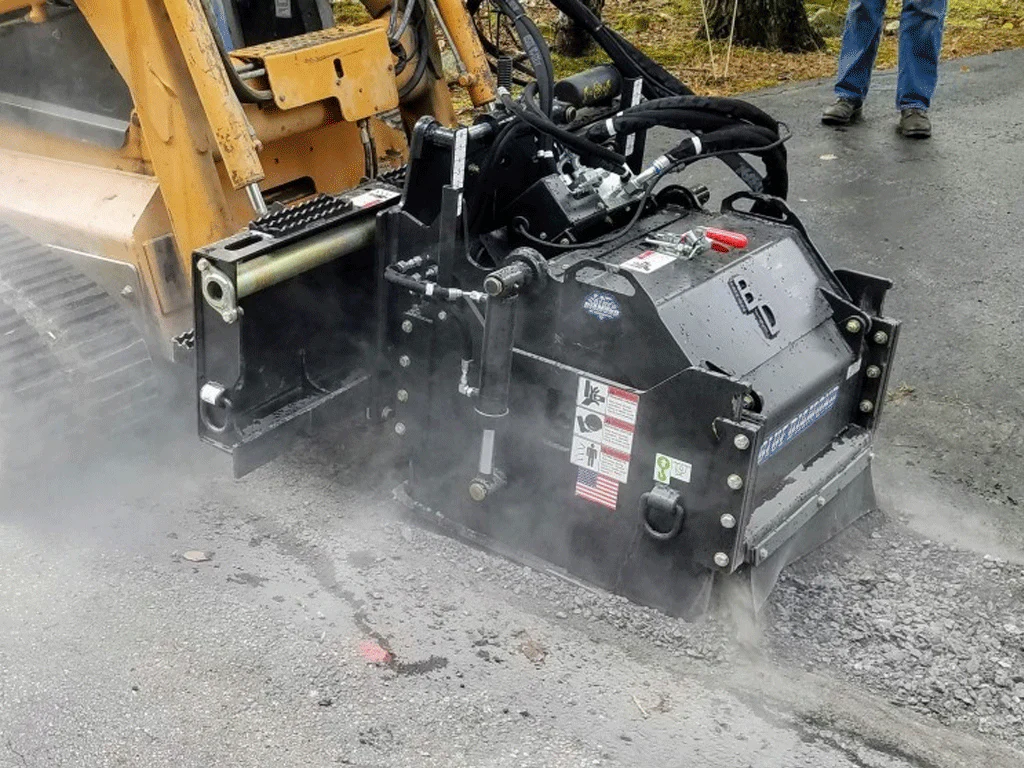

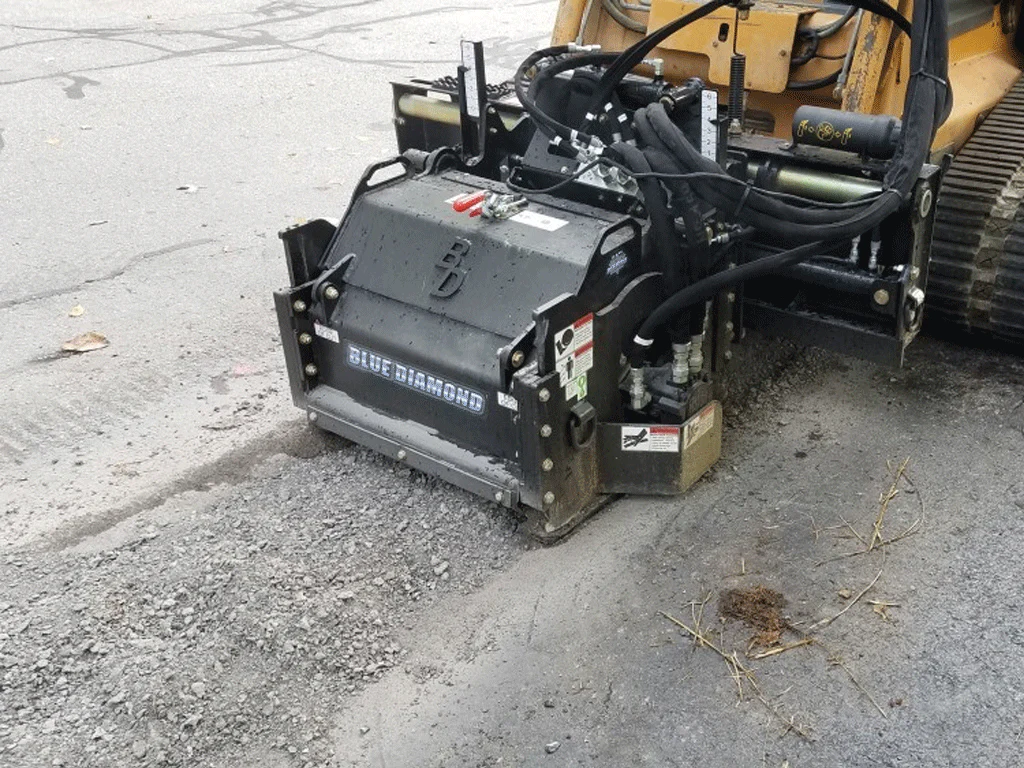

• Applications include asphalt removal prior to overlay, pothole repair, shoulder widening, drainage restoration, and base stabilization mixing.
• Rental-ready design to fit busy fleets and contractor workflows.

Benefits

• Efficiently remove old asphalt over wide areas, reducing project time and labor costs.
• Precise depth control and repeatable milling thanks to electronic adjustments, improving surface prep quality for overlays.
• Reduced vibration and smoother operation with a heavy, well-balanced drum, contributing to operator comfort and longer machine life.
• Low maintenance downtime thanks to accessible tooth replacement and robust, proven components.
• Dust control and better visibility on dusty jobs when using a water kit, enhancing job site safety and cleanliness.
• Versatile use cases—from prep for overlays to widening shoulders and repairing potholes—making it a valuable tool for road maintenance and heavy-duty resurfacing.
• Ideal for rental fleets and professional contractors who prioritize reliability and uptime on demanding projects.
• To maximize performance, select the appropriate drum width and tooth count for the job, and pair with compatible high-flow hydraulics to meet the required GPM and PSI ranges.

Part Number	Model	Number of Teeth	Min-Max Flow	Min-Max Pressure	Weight	Tilt Capacity
160220-HP	16" High Flow	38	27-45 GPM	2450-5000 PSI	1,710 lbs	+/-15
160225-HP	18" High Flow	40	27-45 GPM	2450-5000 PSI	1,810 lbs	+/-15
160230-HP	24" High Flow	50	27-45 GPM	2450-5000 PSI	1,970 lbs	+/-13
160235-HP	30" High Flow	60	30-45 GPM	2500-5000 PSI	2,160 lbs	+/-10
160240-HP	40" High Flow	76	30-45 GPM	3000-5000 PSI	2,455 lbs	+/-8
160245-HP	48" High Flow	90	30-45 GPM	3250-5000 PSI	3,210 lbs	+/-6
