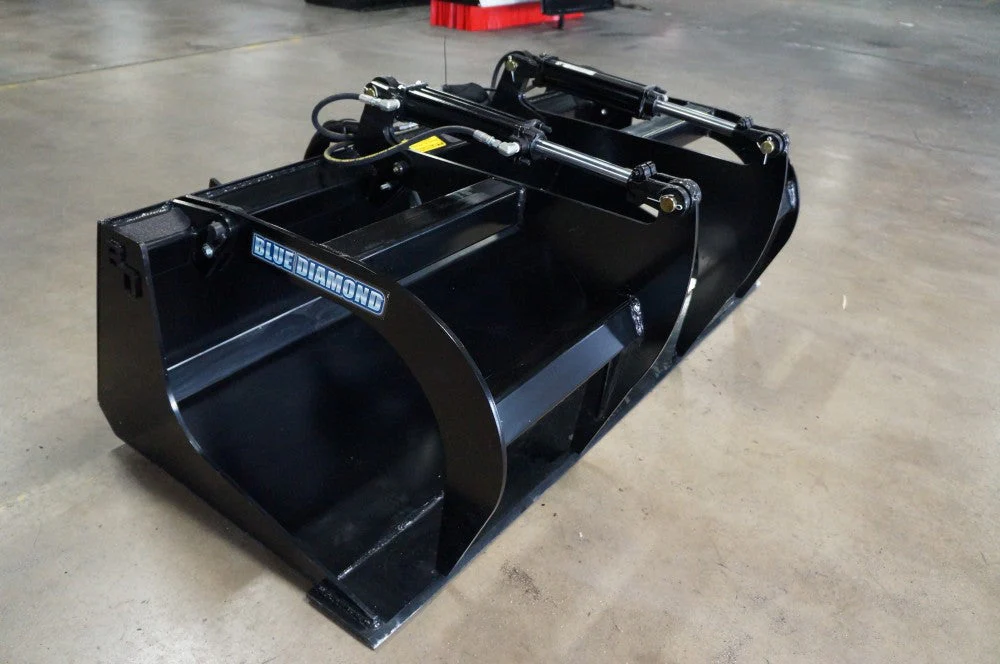

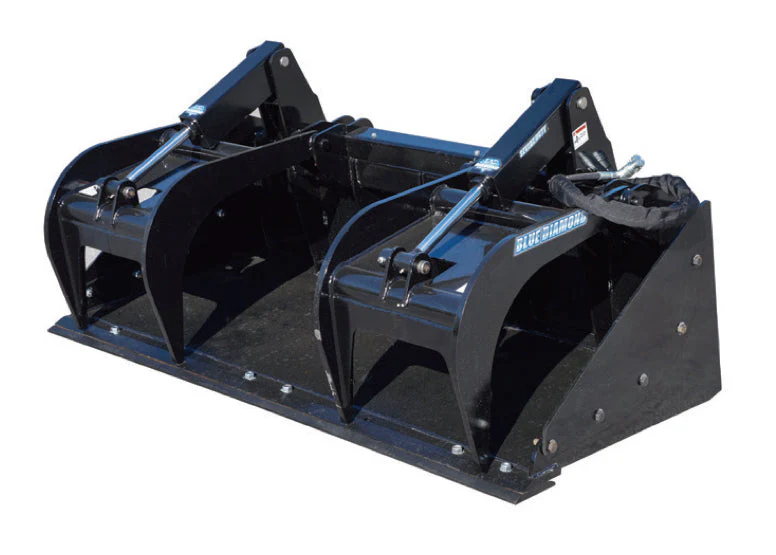

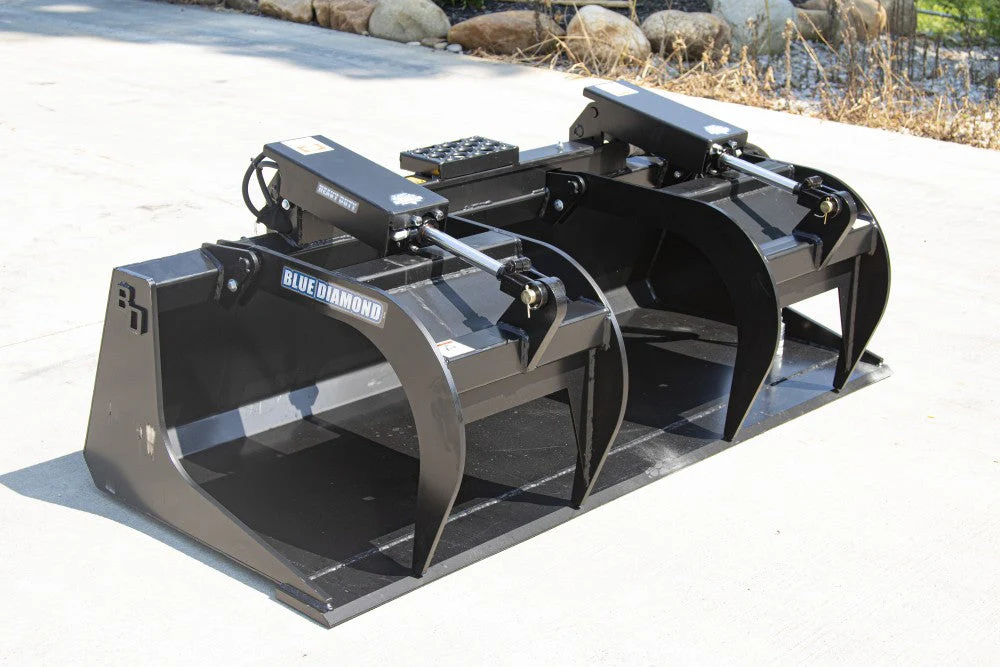

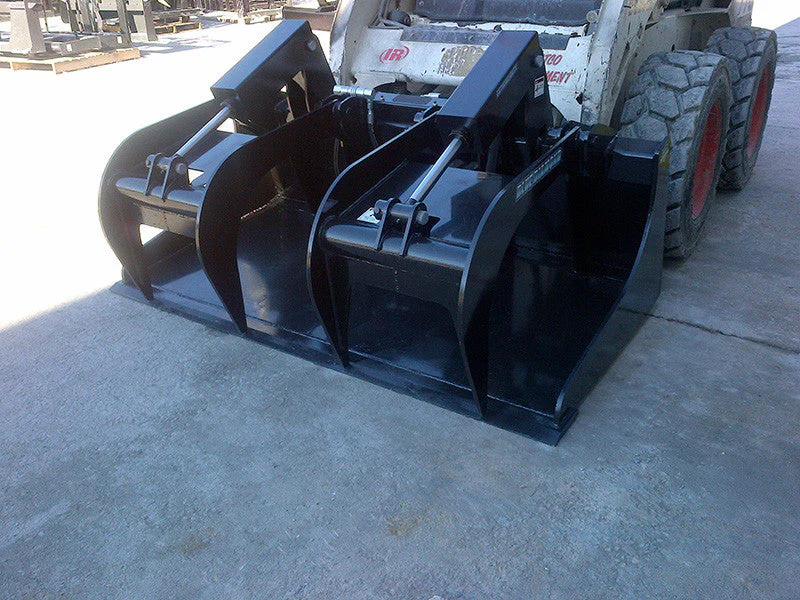

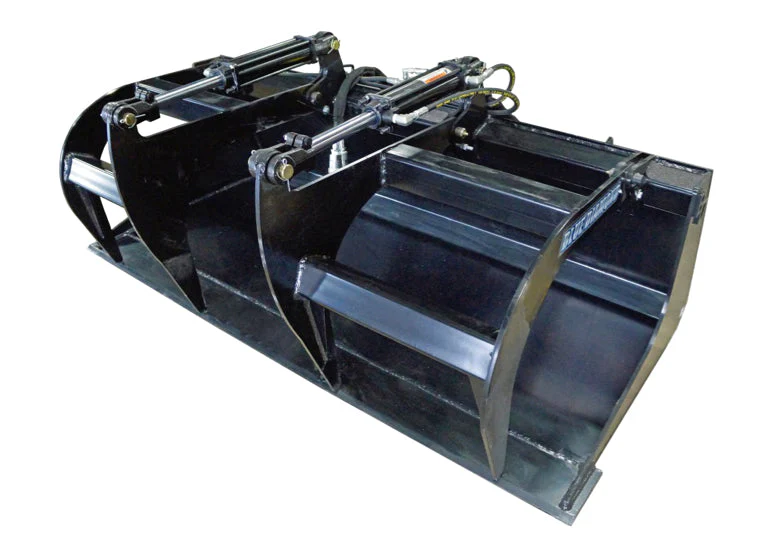

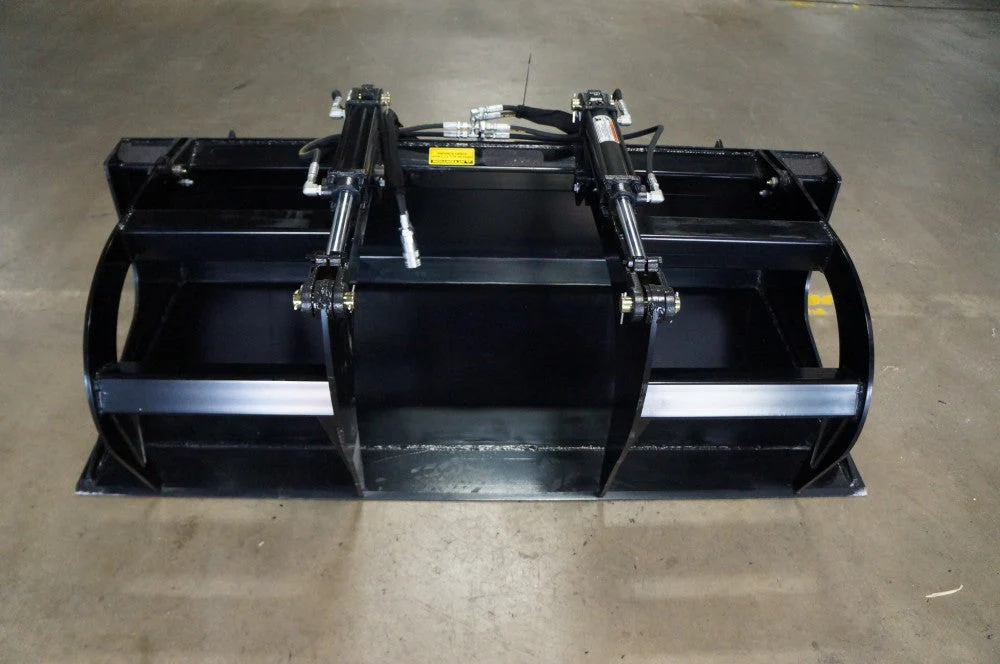

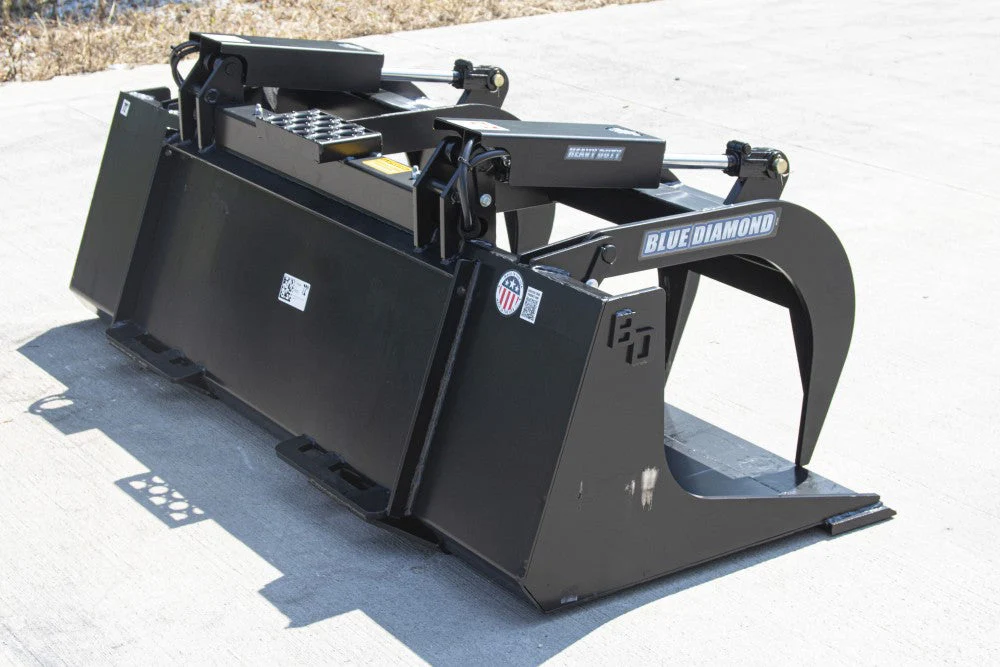

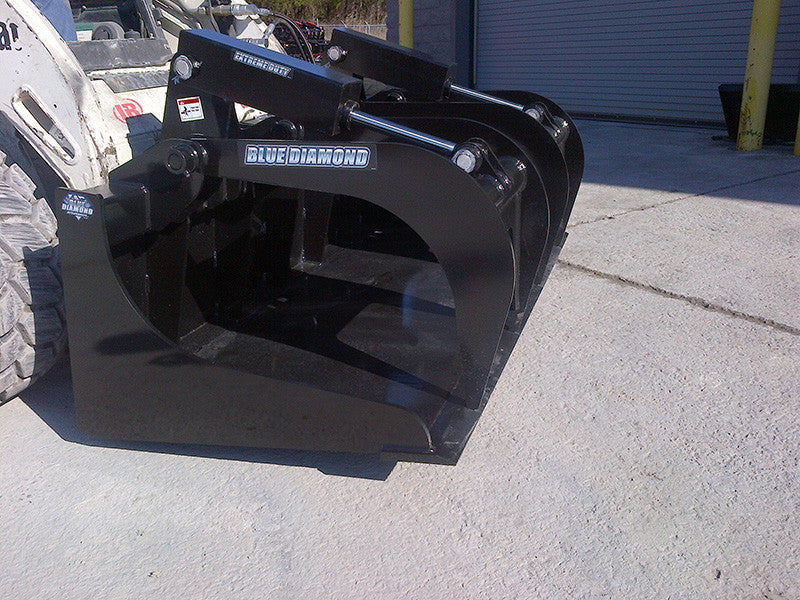

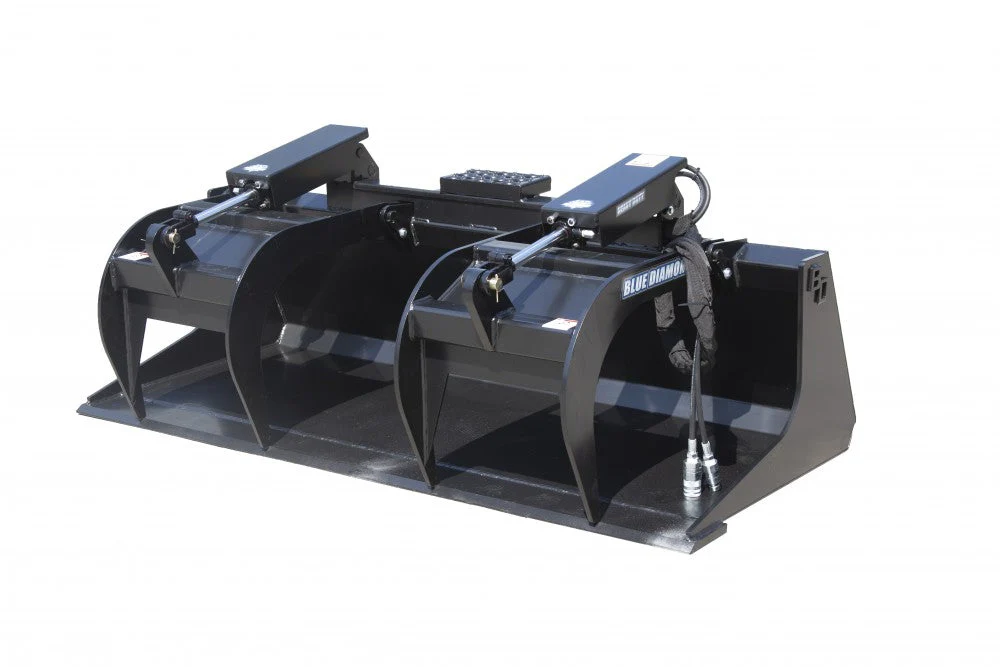

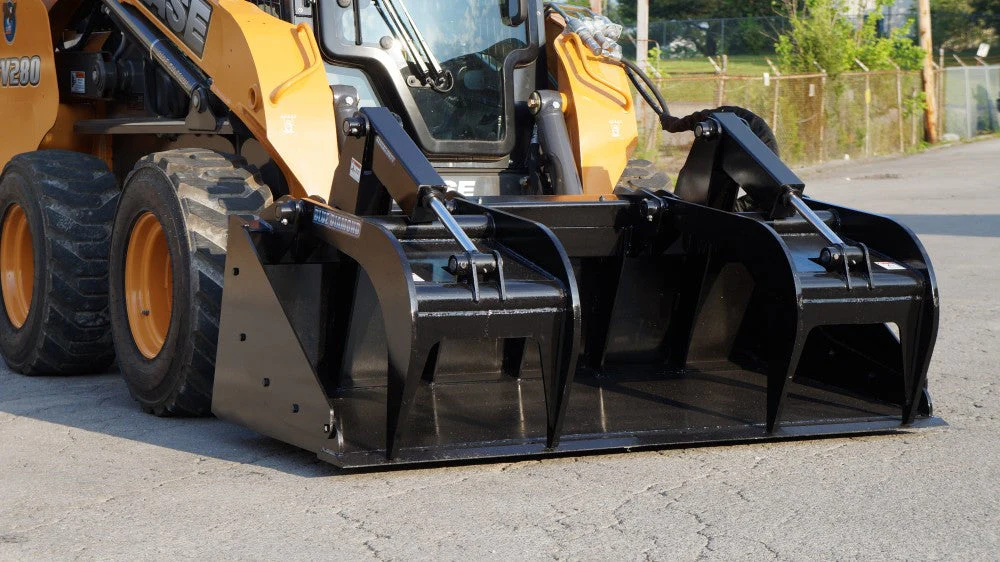

BLUE DIAMOND Industrial Grapple Bucket

Features

• Heavy-duty steel construction — 1/2" thick steel provides durability while remaining manageable for machines up to 50 HP.
• Multiple duty levels — Light Duty, Heavy Duty, and Severe Duty variants to match your workload and site demands.
• Wide range of widths — available in 60", 66", 72", 78", and 84" to fit a variety of skid steers and compact loaders.
• Impressive capacity — volumes from 10.26 to 14.04 cubic feet; weights range from ~440 to ~1,227 lbs depending on model.

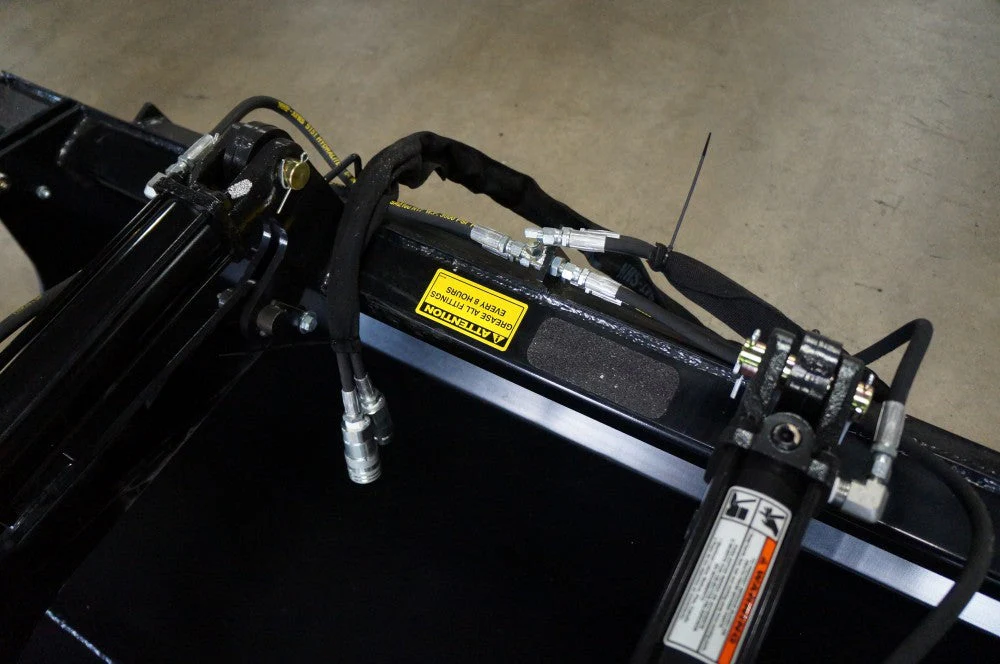

• Reliable hydraulics — pivot-point grease fittings and protected hoses reduce maintenance needs; cylinder protection covers add longevity.

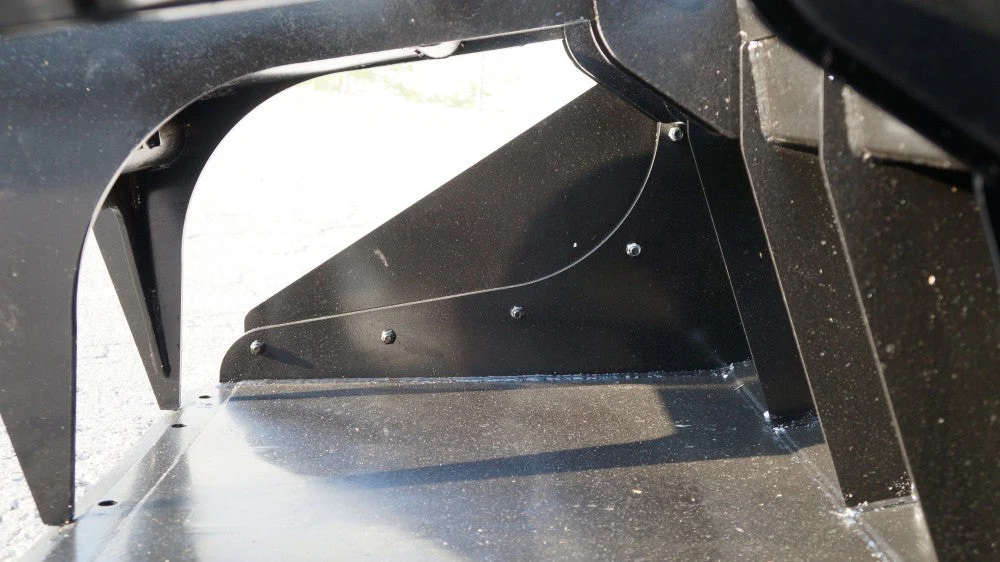

• Severe Duty features — bolt-on-sides for material containment or handling longer items (pipes, trees); no-pinch hose routing; 3/4" top tines; heavily reinforced top clamps.
• Dual clamps standard — secure grip on diverse loads and improve picking stability across models.
• Machine compatibility — engineered for machines up to 50 HP or an approximate 1800 lb lift capacity.

Benefits

The BLUE DIAMOND Industrial Grapple Bucket is built for real-world demolition, recycling, and heavy-duty material handling. Its rugged 1/2" steel frame and reinforced clamps provide dependable grabbing power for bulky debris, scrap, pipes, logs, and brush, helping you move more material in less time.

Designed with field experience in mind, Severe Duty variants offer enhanced containment and longer-item handling without reconfiguring attachments, thanks to features like bolt-on-sides and no-pinch hose routing. This means fewer headaches on tough job sites and more uptime for productive work.

Key scenarios where this grapple bucket shines:

• Demolition yards and scrap facilities moving heavy, awkward loads safely and efficiently.

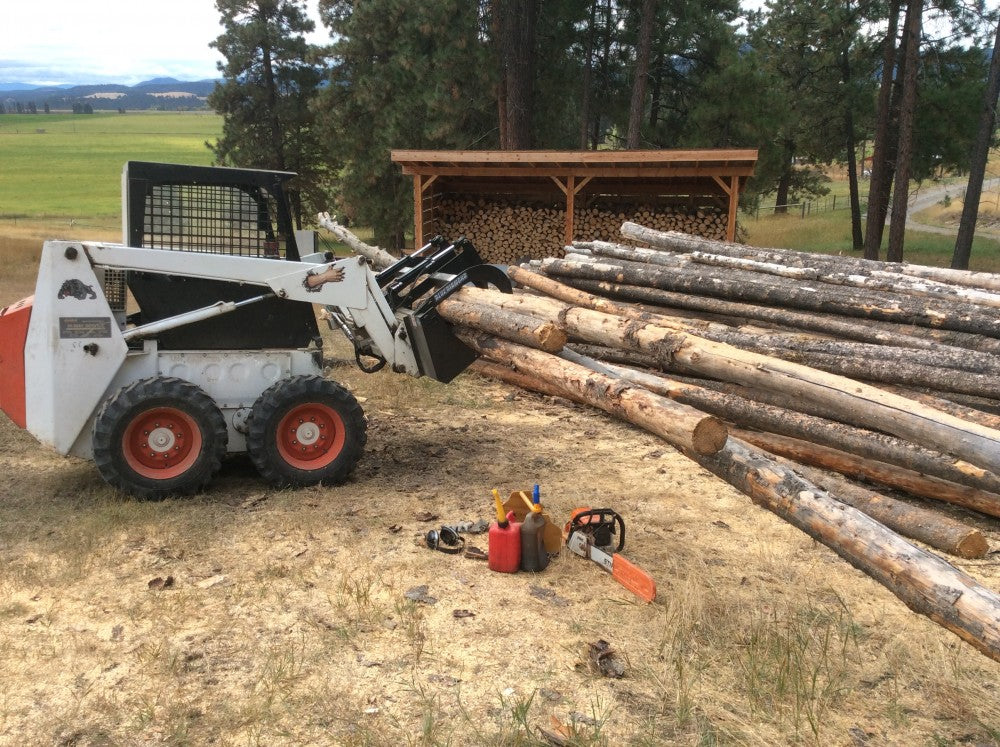

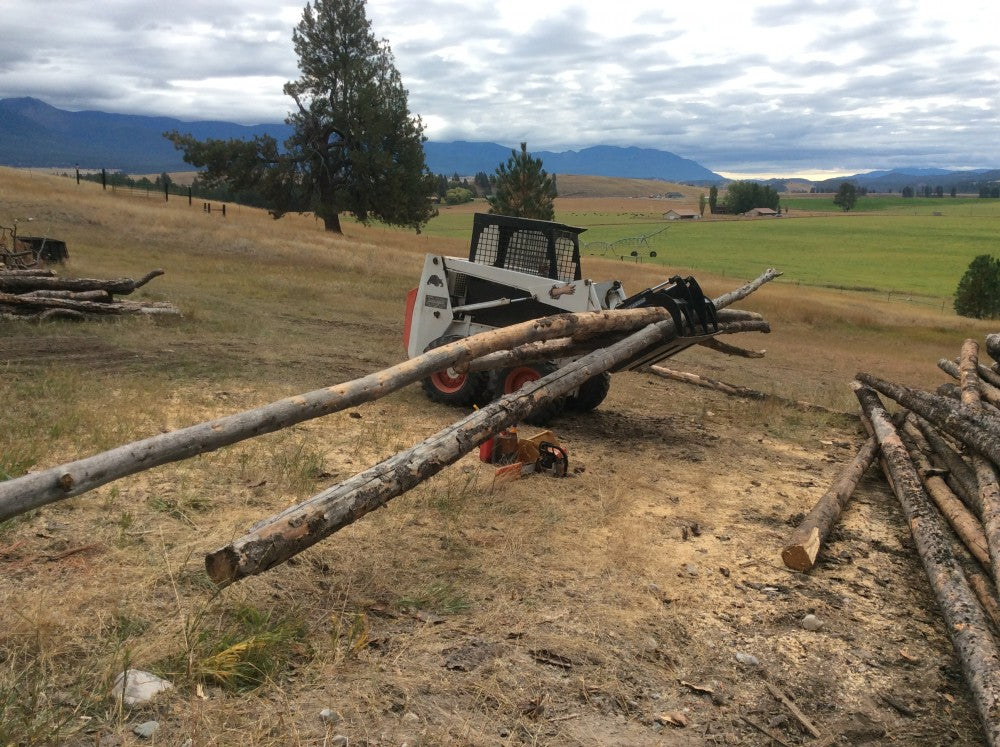

• Landscaping or forestry tasks requiring secure grasp of logs, branches, pipes, and tree limbs.
• Small to mid-size machines needing a robust, durable attachment without overburdening the hydraulics.

Choose from a range of widths to perfectly match your machine and workload, ensuring optimal lifting capacity, control, and precision on every job.

Part Number	Model	Lift Capacity	Weight
106065	66” Grapple Bucket, Light Duty, Dual Clamps	11.07 CU FT	480 lbs

Part Number	Model	Life Capacity	Weight
106077	60” Grapple Bucket,HD, Dual Clamps	10.26 CU FT	440 lbs
106085	66” Grapple Bucket, HD, Dual Clamps	11.07 CU FT	587 lbs
106095	72” Grapple Bucket, HD, Dual Clamps	11.88 CU FT	674 lbs

Part Number	Model	Life Capacity	Weight
106429	60” Grapple Bucket, Severe Duty	10.26 CU FT	905 lbs
106444	66” Grapple Bucket, Severe Duty	11.07 CU FT	1,139 lbs
106454	72” Grapple Bucket, Severe Duty	11.88 CU FT	1,179 lbs
106457	72” Grapple Bucket, Severe Duty W/Teeth	11.88 CU FT	1,066 lbs
106464	78” Grapple Bucket, Severe Duty	12.69 CU FT	1,210 lbs
106476	84” Grapple Bucket, Severe Duty	14.04 CU FT	1,227 lbs
Severe Duty - for machines with 50+ HP.
