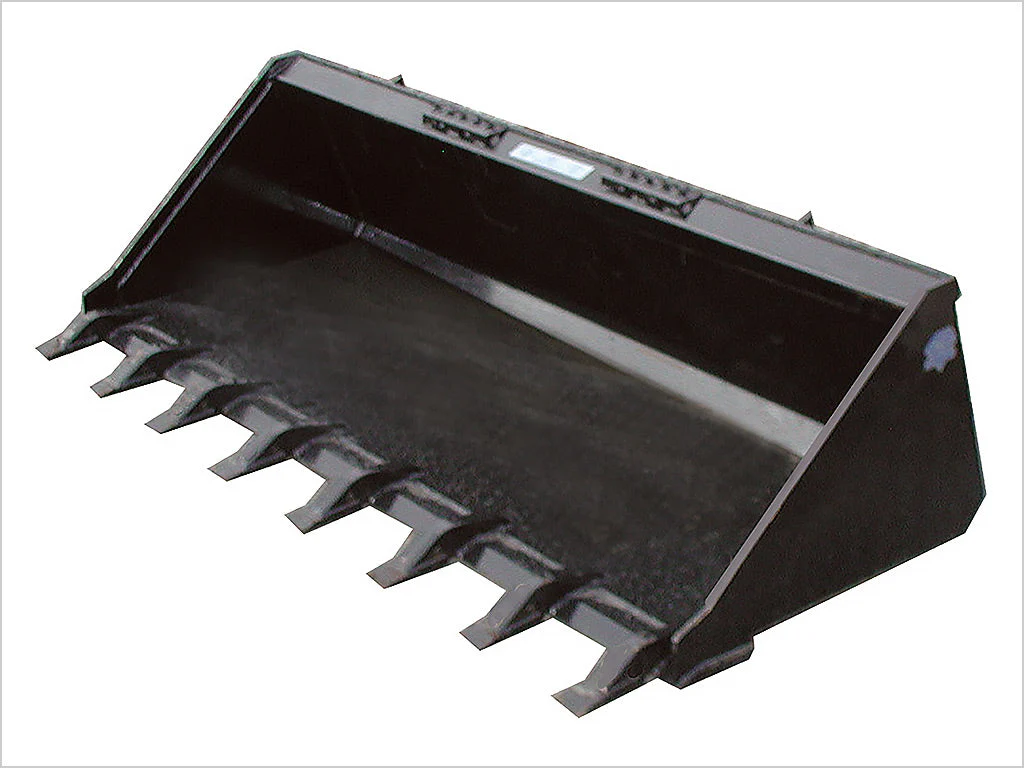

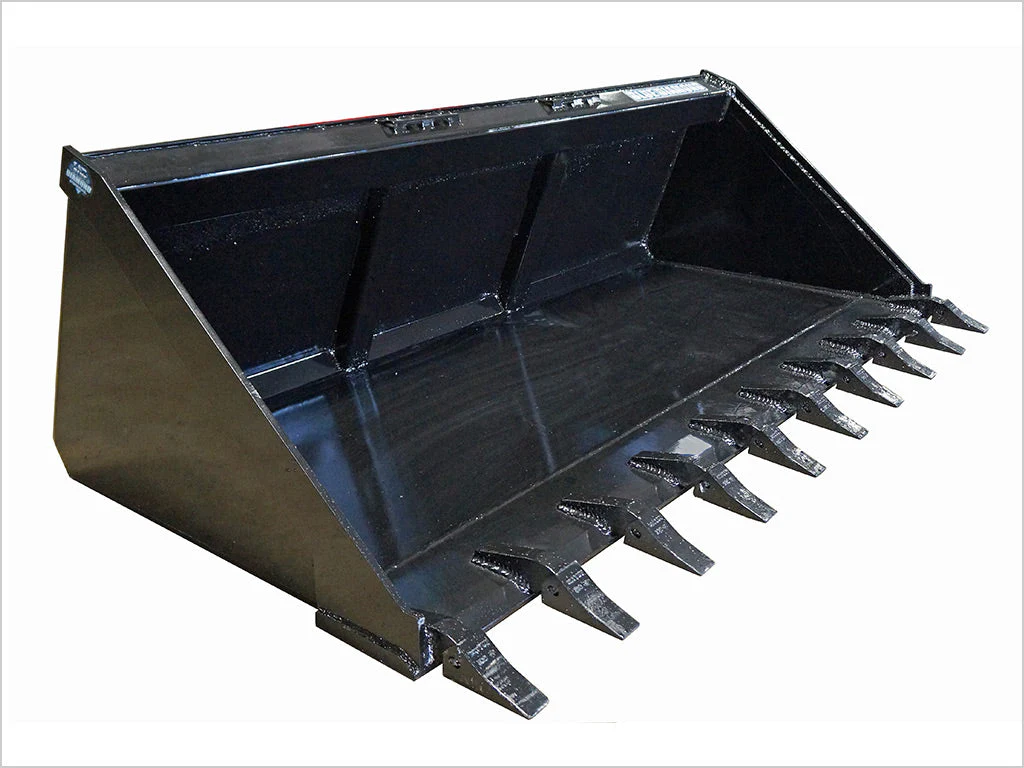

BLUE DIAMOND Low Profile Skid Steer Bucket

The Blue Diamond General Purpose Low Profile Buckets are engineered for visibility, durability, and versatility on a wide range of skid steer tasks. Available in multiple widths and configurations, these low-profile buckets maximize breakout force while keeping a clear line of sight to your work, making them a reliable choice for site prep, loading, and material handling.

Features

• Widths from 60" to 84" to fit a broad spectrum of skid steers
• Low profile design: 20" tall, with 29" deep standard, 36" deep long-bottom, or 38" deep high-capacity variants
• Edge and tooth configurations: smooth edge or tooth versions, with optional tooth bar
• Cutting edge options: 3/4" by 6" cutting edge for durable performance
• Material thickness: 3/16" back and bottom for 60"–72" models; 1/4" wrap for 78"–84" models
• Bottom styles: standard 30" front-to-back; long-bottom 36" front-to-back
• Multiple configurations including weld-on or bolt-on cutting edges and long-bottom options
• Capacities listed are struck and vary by width and configuration (examples: 10.8–22 cu ft); weights range from ~334 lb to ~515 lb

Benefits

• The low-profile design keeps the operator’s line of sight closer to the work area, aiding precision and safety during loading, grading, and backfilling.
• Choose smooth edge for clean material handling or add teeth for penetrating compacted soils; long-bottom versions increase carry capacity and reduce material spillage at the bucket’s outlet.
• Thick wrap material (3/16" to 1/4" depending on width) and a robust 3/4" x 6" cutting edge provide lasting performance in construction, landscaping, and rental fleets.
• High-capacity options (24" tall, 38" deep) and long bottoms (36" deep) improve material pickup and reduce cycles on bulk loads.
• A wide range of widths (60"–84") and configurations lets you match the bucket to your specific skid steer model and job requirements.
• Ideal for site prep, gravel loading, backfilling, mulch handling, and general earthmoving—whether you’re on a crew site or managing a rental fleet.
• The choice between weld-on or bolt-on edges and tooth variants simplifies replacement and customization as your needs evolve.

With capacities spanning from 10.8 cu ft (60") up to 22 cu ft (84" long-bottom tooth), these buckets are designed to deliver efficient loading and dependable performance across a variety of materials. The Bud-guard design and sturdy construction are built to endure daily use in tough environments, making the BLUE DIAMOND Low Profile Skid Steer Bucket a practical, durable addition to any equipment lineup.

Part Number	Model	Struck Capacity	Weight
108090	60" Low Profile-Smooth	10.8 cu ft	334 lbs
108095	60" Low Profile-Tooth	10.8 cu ft	384 lbs
108100	66" Low Profile-Smooth	12.2 cu ft	354 lbs
108105	66" Low Profile-Tooth	12.2 cu ft	409 lbs
108110	72" Low Profile-Smooth	13.2 cu ft	378 lbs
108115	72" Low Profile-Tooth	13.2 cu ft	437 lbs
108120	78" Low Profile-Smooth	14.3 cu ft	408 lbs
108125	78" Low Profile-Tooth	14.3 cu ft	460 lbs
108130	84" Low Profile-Smooth	15.7 cu ft	436 lbs
108135	84" Low Profile-Tooth	15.7 cu ft	515 lbs
108140	60" Low Profile-Long Bottom-Smooth	15.7 cu ft	385 lbs
108145	60" Low Profile-Long Bottom-Tooth	15.7 cu ft	434 lbs
108150	66" Low Profile-Long Bottom-Smooth	17.3 cu ft	426 lbs
108155	66" Low Profile-Long Bottom-Tooth	17.3 cu ft	472 lbs
108160	72" Low Profile-Long Bottom-Smooth	18.6 cu ft	446 lbs
108165	72" Low Profile-Long Bottom-Tooth	18.6 cu ft	505 lbs
108170	78" Low Profile-Long Bottom-Smooth	20 cu ft	441 lbs
108180	84" Low Profile-Long Bottom-Tooth	22 cu ft	505 lbs
