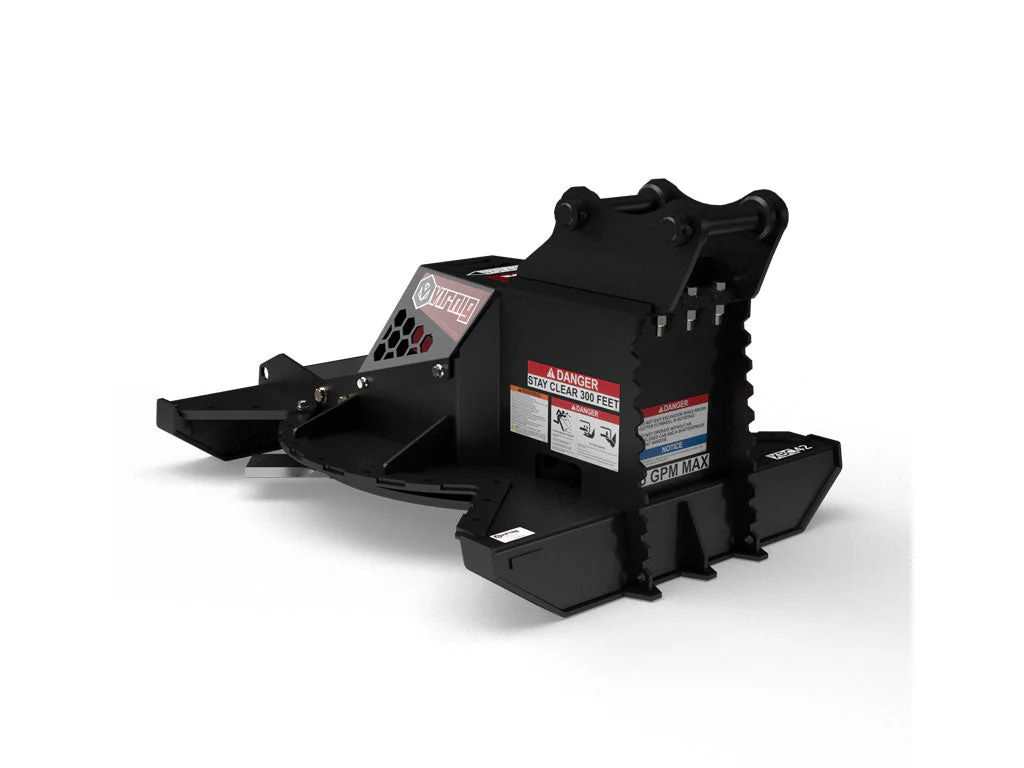

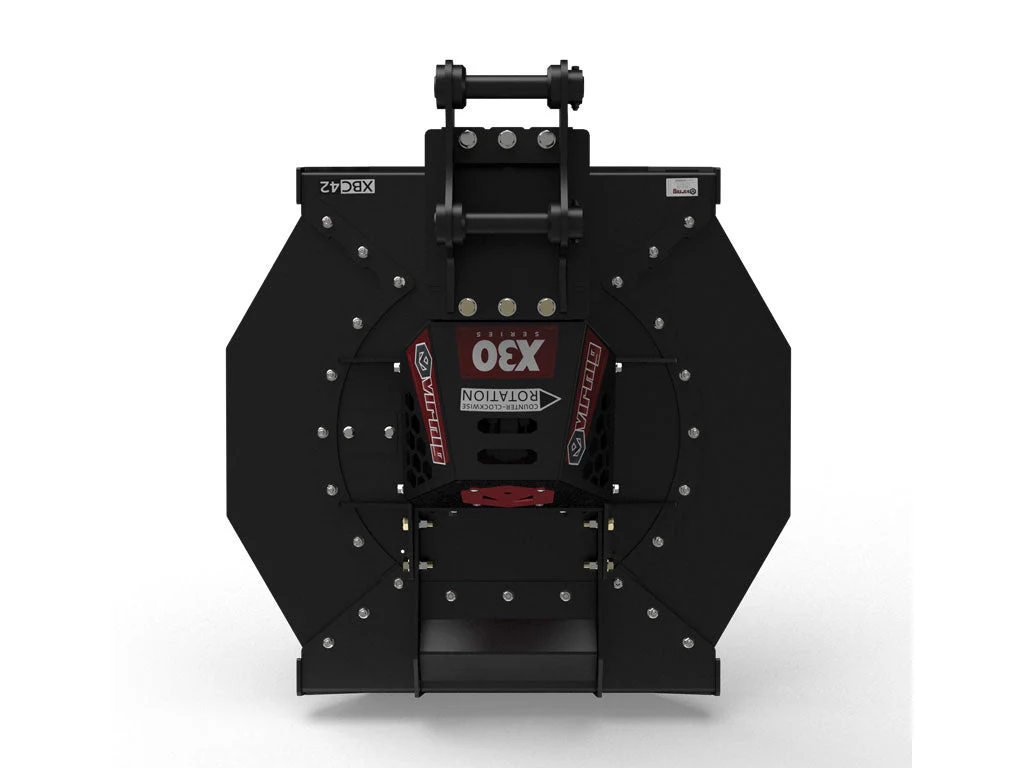

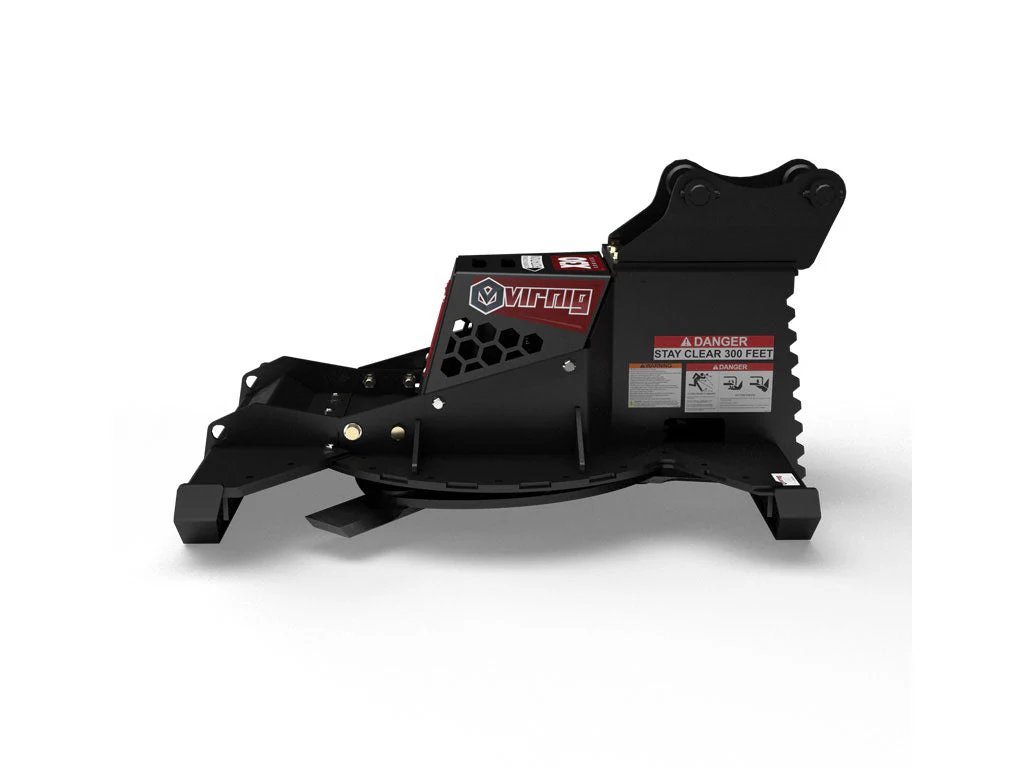

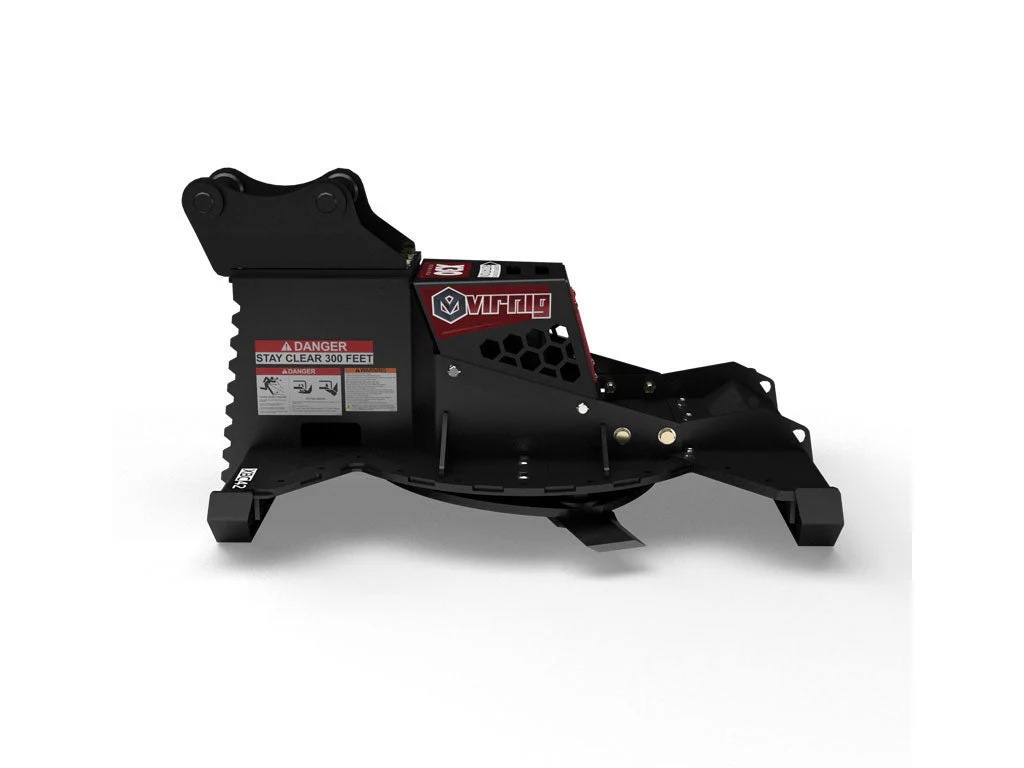

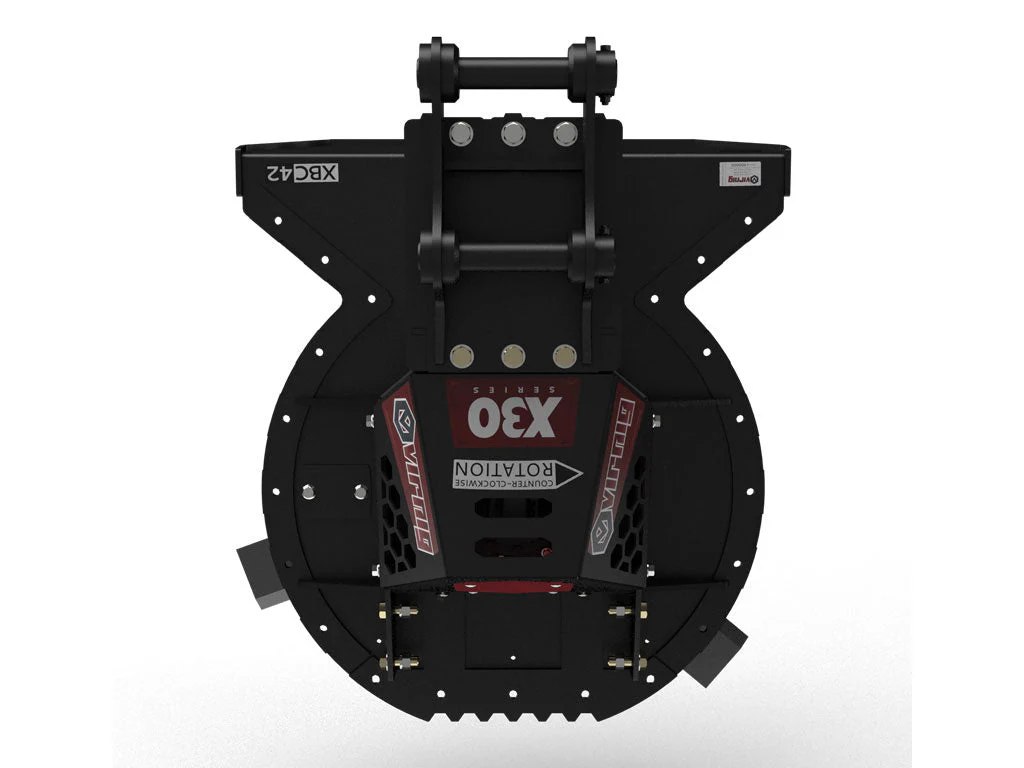

Virnig X30 42" Rotary Brush Cutter for Mini Excavator

Engineered for mini excavators, the Virnig X30 42" Rotary Brush Cutter is the compact, high‑performance attachment you need to clear dense brush and small trees up to 4" in diameter—even in tight spaces.

,,,

• Cut width: 42 inches, delivering a wide, efficient clearing path on each pass.
• Cutting capacity: Accepts material up to 4" in diameter for rapid brush and small-tree removal.

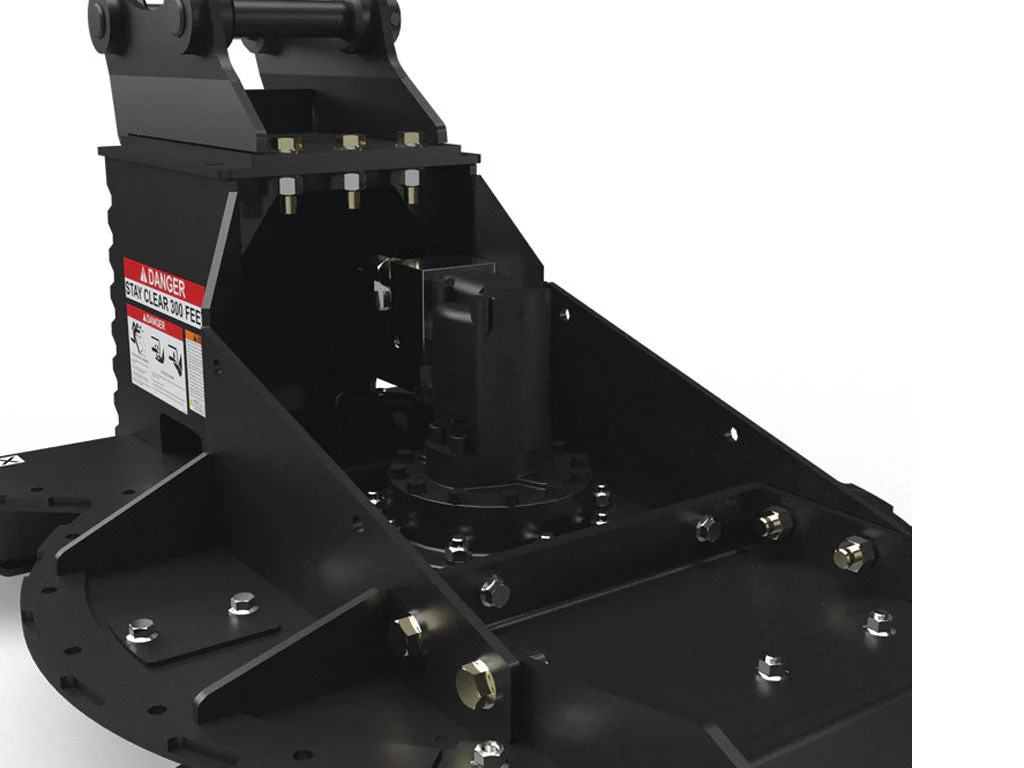

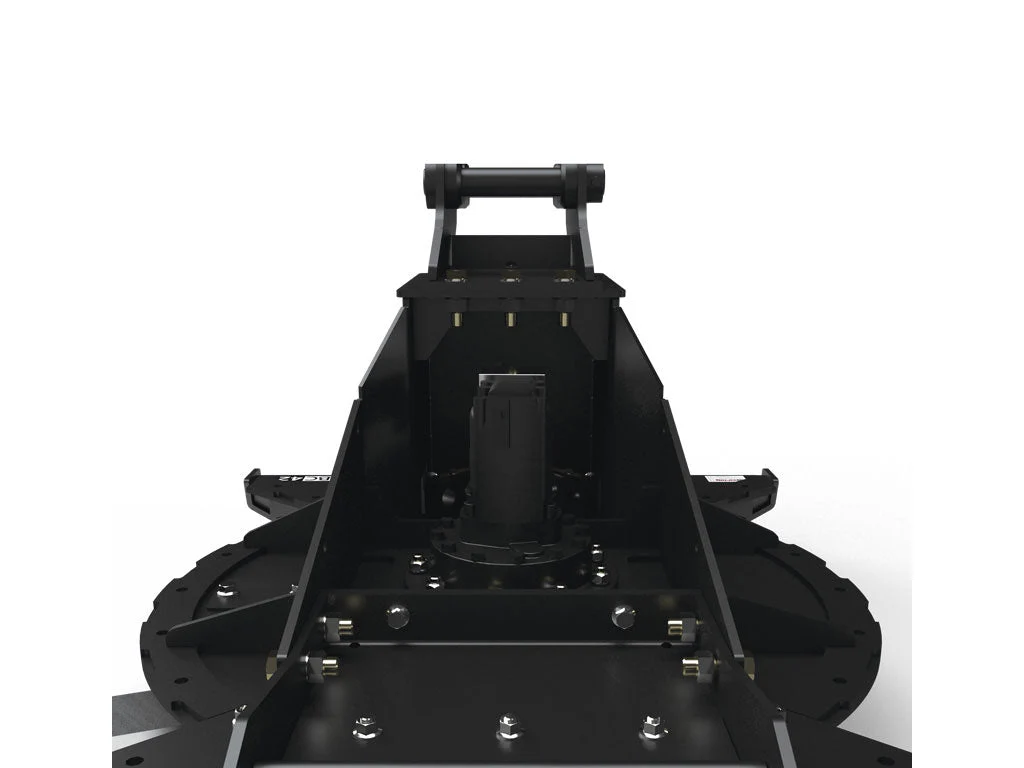

• Drive system: Direct‑drive Eaton motor with relief valve protection for reliable, durable performance.

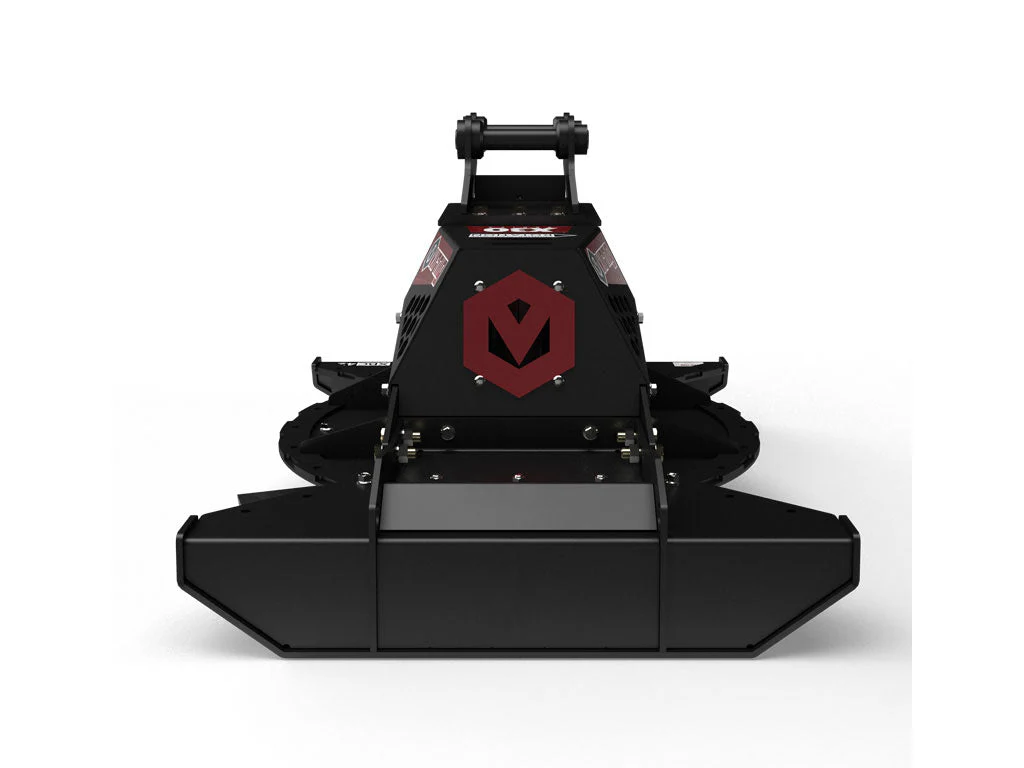

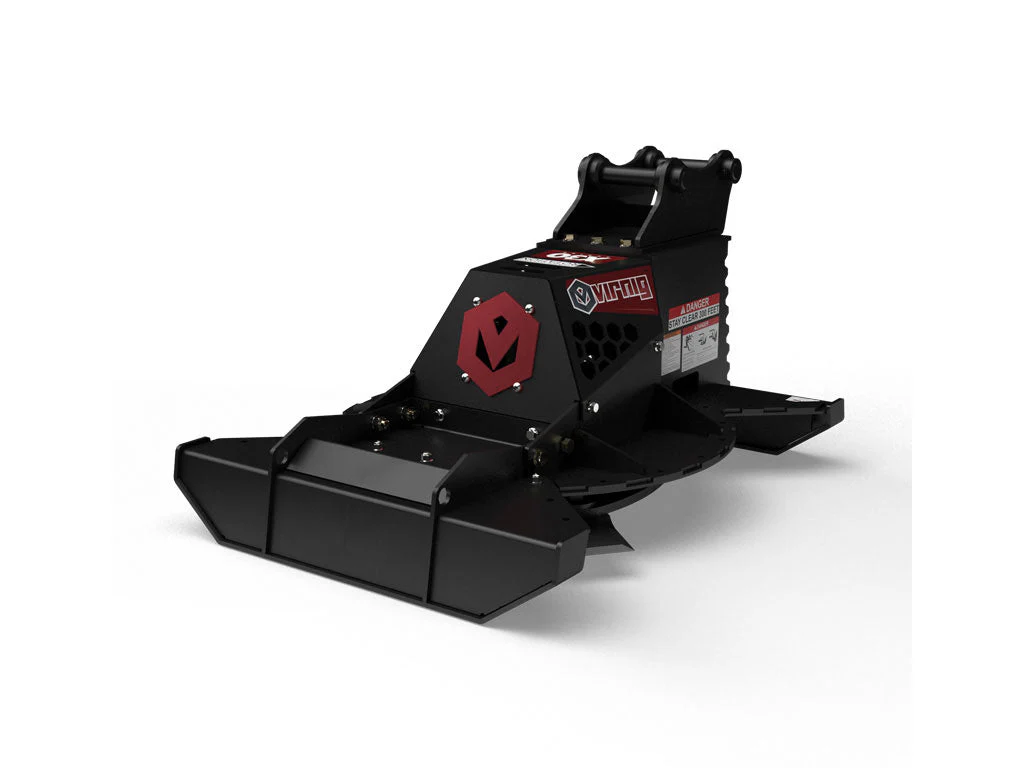

• Front deck: Bolt-on, removable front deck enables 270-degree blade engagement for versatile cutting angles.
• Mounting interface: Bolt-on hanger brackets allow quick changes and broad compatibility with many excavator brands.

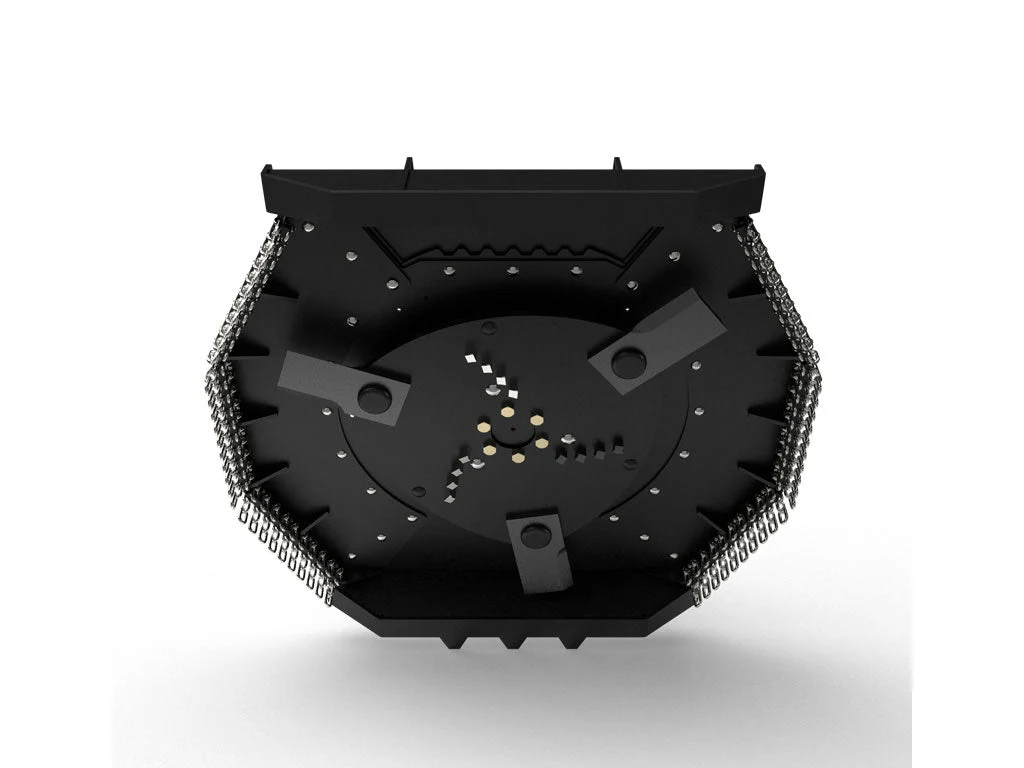

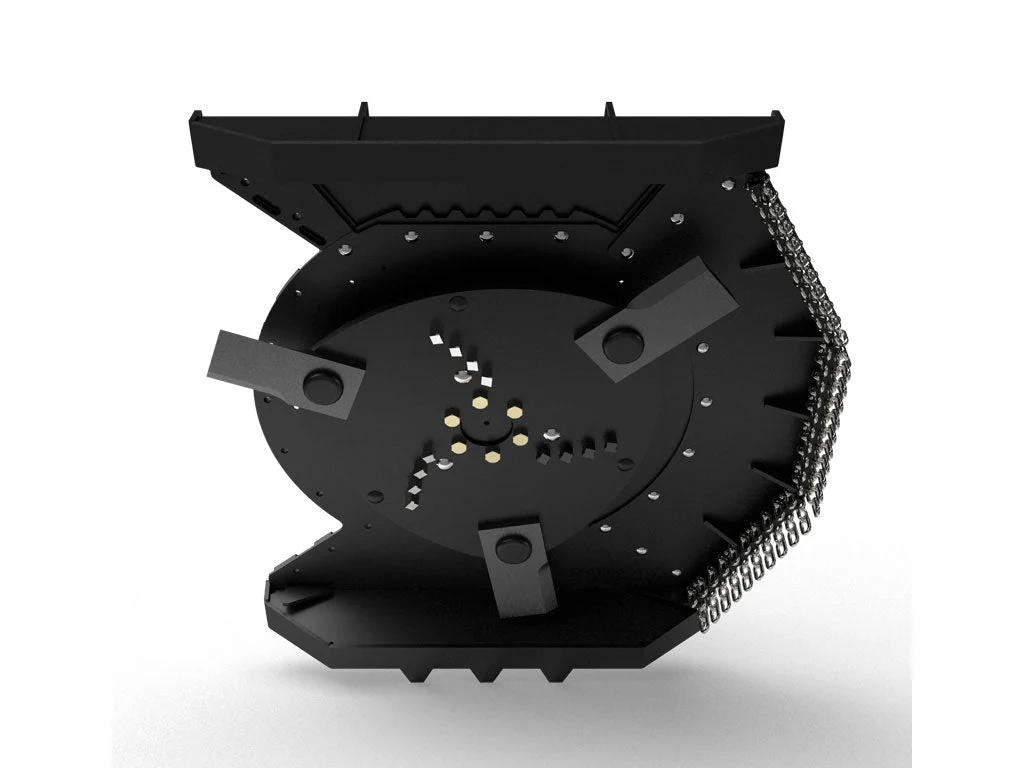

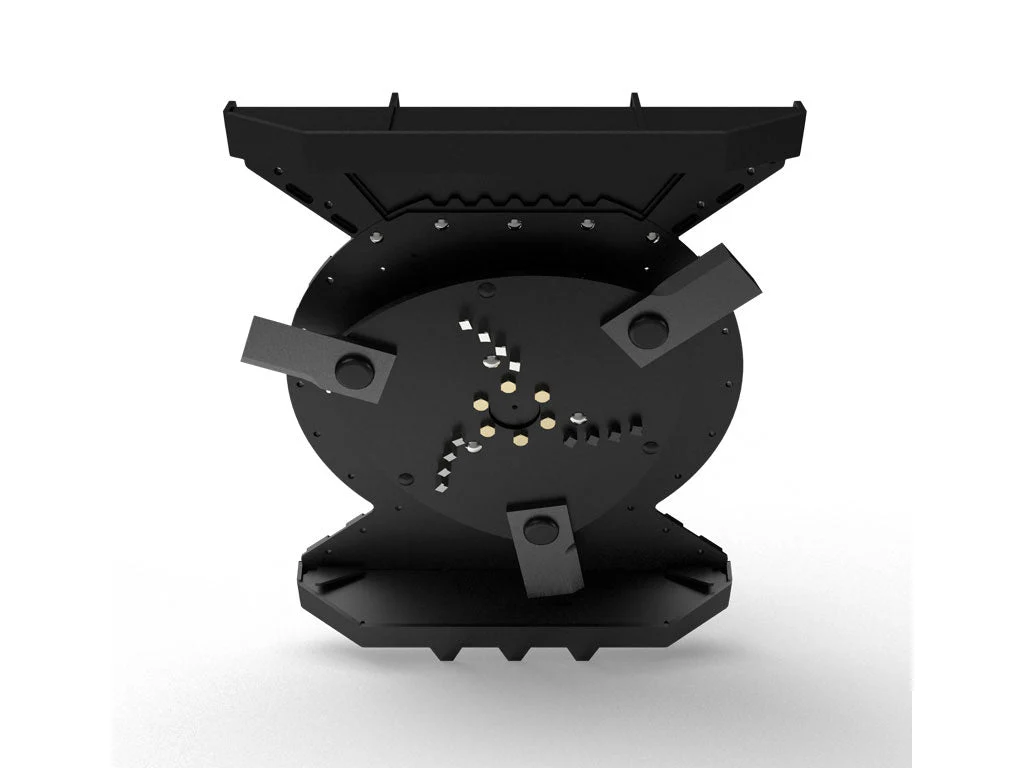

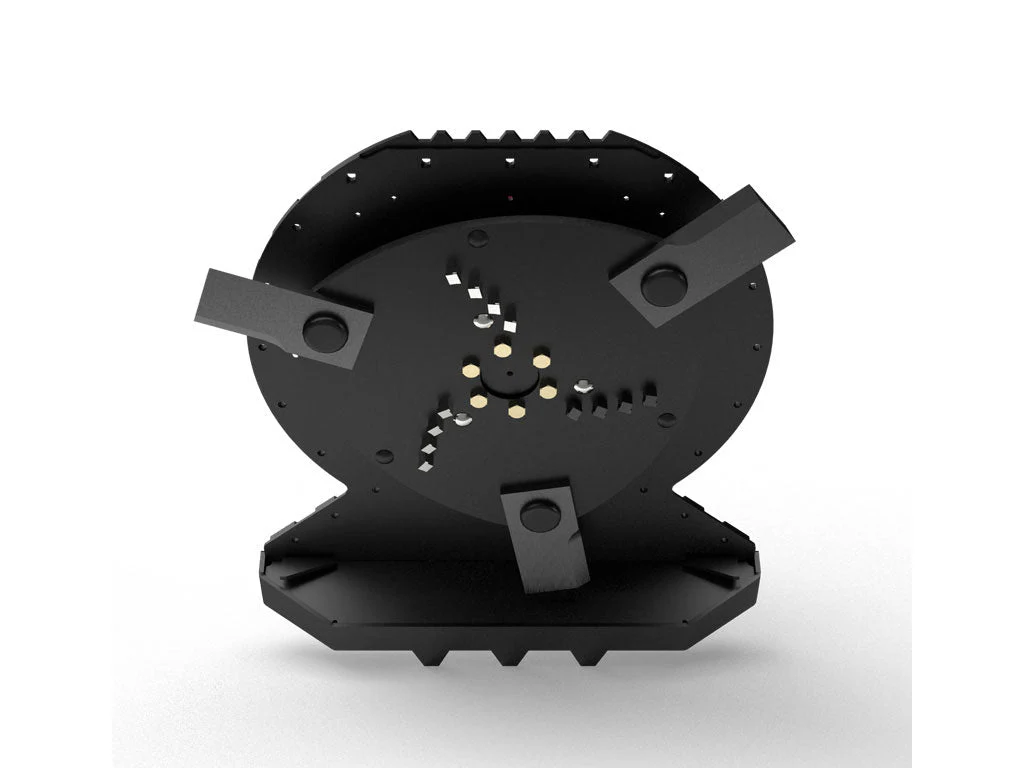

• Blade configuration: Rounded flywheel with 3 double‑sided blades; serrated rear deck helps back-dragging and stumps, while the design tends to bounce off obstacles.

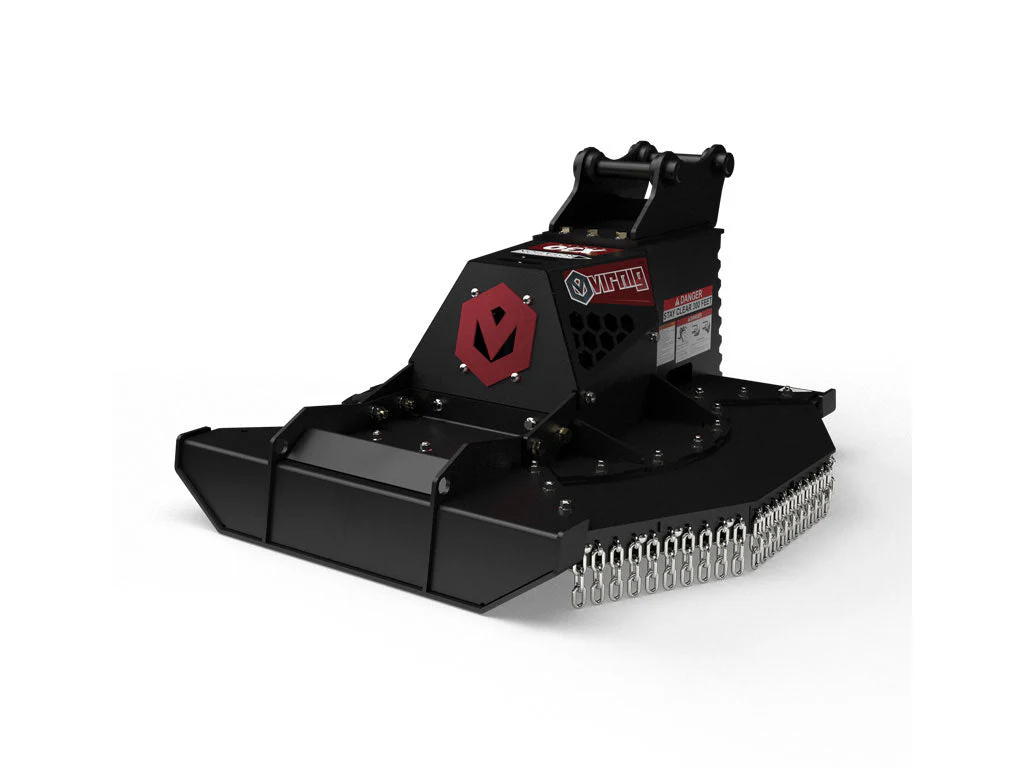

• Debris control: Optional one or two bolt-on side curtains reduce debris thrown toward the operator; carbide teeth option enhances material shredding for a cleaner finish.
• Guarding: Standard motor guard and spindle guard protect components during heavy use.
• Weight and fit: 700 lb (without sides) or 830 lb (with sides); designed to fit a wide range of mini‑excavator lift capacities.
• Flow and speed: Designed for 15–25 GPM (22–28 GPM options available); blade tip speeds vary by flow rate to match your hydraulic system (XBC42-25 and XBC42-28 configurations).
• Material and build: Deck thickness 0.25" (top/side); constructed with Grade 50 plate (50,000 psi minimum yield) for long‑lasting rigidity in tough brush clearing jobs.
• Dimensions: Overall width 38.8" (without sides) / 52.0" (with sides); height 20.5"; depth 52.5"; deck height 5.8"; minimum cut height with bolt-on front 2.0".
• Safety note: Do not operate the cutter without a shatterproof cab to protect the operator and bystanders.
• Brand compatibility: Fits a broad range of models from Bobcat, Case, CAT, Gehl, Hitachi, Hyundai, JCB, Kato/IHI, Kobelco, Komatsu, Kubota, Mustang, New Holland, SANY, Takeuchi, and more (use as a guide—confirm fit with your machine).

The X30 rotary cutter is designed to boost productivity on jobs like roadside brush cleanup, clearing along fence lines, stream banks, and utility corridors. The combination of a wide cutting swath, 4" capacity, and a robust front/deck design means you can tackle dense vegetation in fewer passes while maintaining a clean, manageable cut. Optional side curtains and carbide teeth provide flexibility for debris control and material type, helping you tailor the setup to your site conditions. With bolt-on hanger brackets and a 270-degree blade engagement option, you can adapt the attachment to a variety of excavator configurations without sacrificing performance.

MODEL	XBC42
Cut Width (Inches)	42.0
Overall Width Without Sides / With Sides (Inches)	38.8 / 52.0
Overall Height (Inches)	20.5
Overall Depth (Inches)	52.5
Deck Height (Inches)	5.8
Minimum Cut Height with Bolt-On Front (Inches)	2.0
Cutting Capacity, Diameter (Inches)	4.0
Deck Thickness: Top/Side (Inches)	0.25¹
Recommended Flow Rate (GPM)	15-25 / 22-28
Approximate Weight Without Sides / With Sides (Pounds)	700 / 830
Recommended Mini-Excavator Lift Capacity Over Side at Max Reach (Pounds)	Greater than 700 pounds²
Recommended Mini-Excavator Weight (Pounds)	8,900-26,000
Number of Teeth (Optional)	12

MODEL	15 GPM	22 GPM	25 GPM	28 GPM
XBC42-25	9,525	13,970	15,875	–
XBC42-28	–	9,010	10,240	11,470

BOBCAT	335, 337, 341, 435, E40R2, E42, E45, E48, E50, E55, E58, E60 E63, E88, E145, E165
CASE	CX40, CX42, CX45, CX50, CX57C, CX60C,
CAT	304, 304CR, 304.5, 303.5CR*, 304.5E2XTC, 304CCR, 304E2CR, 305CR 305.5DCR, 305.5ECR, 305.5E2CR, 305CCR, 305DCR, 305ECR, 306 CR
DEVELON	DX50-5K, DX50Z-7, DX55, DX55R-7, DX55W, DX60R, DX62R-3*, DX63-3*
GEHL	603, 503Z, Z45, Z45GEN2, Z55
HITACHI	ZX40, ZX40U-2, ZX40-3F, ZX48U-3, ZX48U-5, ZX50, ZX50U, ZX50U-2
HYUNDAI	R55-9, R55-9A, R60CR-9, R60CR-9A
JCB	803, 8040, 8045, 8050, 8052, 8055, 8065, 45Z-1, 48Z-1, 50Z, 50Z-1, 51R  55Z, 55Z-1, 57C-1
KATO / IHI	55V-4, 60V-4, HD50V-5, HD55N-4, HD60V-5
KOBELCO	SK45SRX-6E, SK45SRX-7, SK55SRX-6E, SK55SRX-7
KOMATSU	PC45MR-3, PC45MR-5, PC55MR-3, PC55MR-5
KUBOTA	KX040-4, KX057-4, KX057-5, KX080-4, KX121-3S, U35-4, U48-4, U48-5 U55-4, U55-5
MUSTANG	ME5003ZT, ME6003
NEW HOLLAND	E55BX, E57C
SANY	SY50U, SY60C, SY80U
TAKEUCHI	TB045, TB145, TB153FR, TB240, TB250, TB250-2, TB257FR, TB260, TB350R TB370
TEREX	TC48, TC50, TC60
VOLVO	EC45, EC55B, EC55C, EC55D, ECR40D, ECR48C, ECR50D, ECR50F, ECR58F ECR60E
WACKER	ET58, ET65, EW65, EW65, EZ50
YANMAR	SV40, SV60-6B, VIO45-5, VIO45-6A, VIO50-6A, VIO50-6B, VIO55-5 VIO55-6A, VIO57-6B
