BLUE DIAMOND | Backhoe Attachment for Skid Steer

Features

• Powerful 3 1/2" bore, 20" stroke cylinder for strong digging performance
• Designed with a linkage between the cylinder and bucket for exceptional bucket rotation and breakout force
• Overall length of 8' when the bucket is fully extended and a digging depth of up to 6'
• Largest cylinder and bucket capacity in its class to maximize trenching efficiency

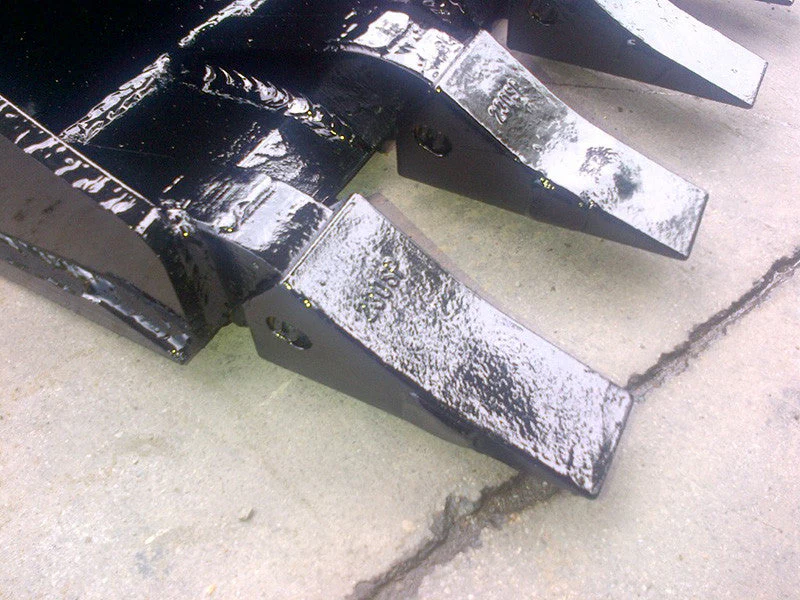

• Replaceable heavy-duty cast teeth on the side pin #230 for easy maintenance
• Bucket options available in 9", 12", 18", and 24" widths to fit soil type and trench needs
• Grease fittings on all pivot points for smooth operation and longevity
• Flat-face couplers for quick on/off mounting
• No specific machine requirements and requires no electrical hookups
• Quick off-and-on compatibility with skid steers for fast jobsite setup

Benefits

Dig trenches with ease using a compact skid steer, without renting a larger excavator. The Blue Diamond backhoe attachment delivers deep reach and substantial bucket capacity, letting you complete utility trenches, irrigation and drainage runs, or foundation trenches faster with fewer passes.

The innovative linkage geometry provides precise bucket rotation and high breakout force, so you can work around obstacles and break through stubborn soil more efficiently. Replaceable teeth reduce downtime and maintenance costs, while grease fittings keep pivots moving smoothly for years of reliable service.

Designed for versatility, this attachment requires no electrical hookups and works with a wide range of skid steers. Quick mounting and unmounting minimize wasted time between jobs, making it a practical, cost-effective choice for contractors, landscapers, and DIY projects.

Who it's ideal for: small to mid-sized contractors, landscape professionals, and property managers who routinely trench for utilities, drainage, or irrigation and want dependable performance in a compact package.

Use cases to consider: trenching along foundations, laying sprinkler lines, installing conduits, digging narrow trenches in tight spaces, and performing soil relocation where a full-size excavator isn’t feasible.

Tips: match your bucket width to the trench size to optimize material removal and reduce passes. Keep teeth and pivot fittings well-lubricated to maintain consistent performance across job sites.

PART NUMBER	MODEL	WEIGHT
130005	Backhoe, Hyd (No Bucket)	391 lbs
130009	8” Backhoe Bucket	103 lbs
130010	9” Backhoe Bucket	103 lbs
130015	12” Backhoe Bucket	139 lbs
130020	18” Backhoe Bucket	169 lbs
130025	24” Backhoe Bucket	202 lbs
130027	30” Backhoe Bucket	202 lbs
