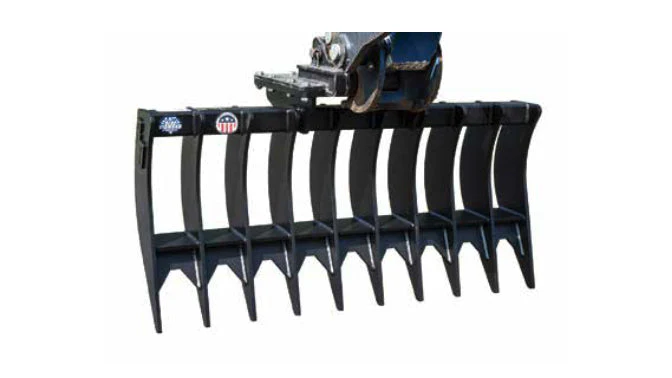

BLUE DIAMOND Excavator Rake - Fits 6000 lbs. to 15000 lbs. machines

The Blue Diamond Heavy Duty Excavator Rake is built for serious site cleanup on mid-sized machines. Designed to remove roots, rocks, and debris with a clean finish, it delivers durable performance you can rely on during grading, land clearing, and prep work.

Features

• 1/2" thick tines for aggressive root and debris removal
• 6 1/2" tine centers to maximize clearance while maintaining strength
• Gusseted tine tips for reinforced durability in tough soil
• Interchangeable mounting system (mounting not included; call for mounting price)
• Available sizes and weights to fit 6K–10K and 10K–15K machines, with models including:
  • 24" W x 18" D x 25" H — 210 lbs
  • 36" W x 18" D x 25" H — 260 lbs
  • 48" W x 18" D x 25" H — 300 lbs
  • 48" W x 18" D x 31" H — 400 lbs (10K–15K)
  • 60" W x 18" D x 25" H — 340 lbs
  • 60" W x 18" D x 31" H — 470 lbs (10K–15K)

Benefits

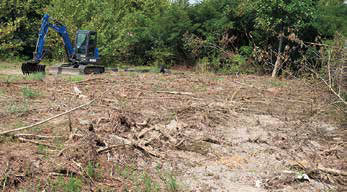

• Efficiently clears roots, rocks, light brush, and other unwanted material for a clean, finished surface
• Allows loose soil to flow through to reduce clumping and improve grading results
• Durable construction stands up to demanding jobs, delivering consistent performance over time
• Interchangeable mounting offers flexibility across multiple mid-size excavator models (mounting is not included; mounting price available by request)
• Ideal for contractors, landscapers, and utility crews working on site preparation, roadwork, and landscape clearing

Part Number	Model	Overall Dimensions	Weight
170405	24” Excavator Rake (6K-10K Machines)	24″ W x 18″ D x 25″ H	210 lbs
170415	36” Excavator Rake (6K-10K Machines)	36″ W x 18″ D x 25″ H	260 lbs
170425	48” Excavator Rake (6K-10K Machines)	48″ W x 18″ D x 25″ H	300 lbs
170475	48” Excavator Rake (10K-15K Machines)	48″ W x 18″ D x 31″ H	400 lbs
170435	60” Excavator Rake (6K-10K Machines)	60″ W x 18″ D x 25″ H	340 lbs
170485	60” Excavator Rake (10K-15K Machines)	60″ W x 18″ D x 31″ H	470 lbs
