Blue Diamond Heavy Duty Series 2 Tree Boom or Jib Boom

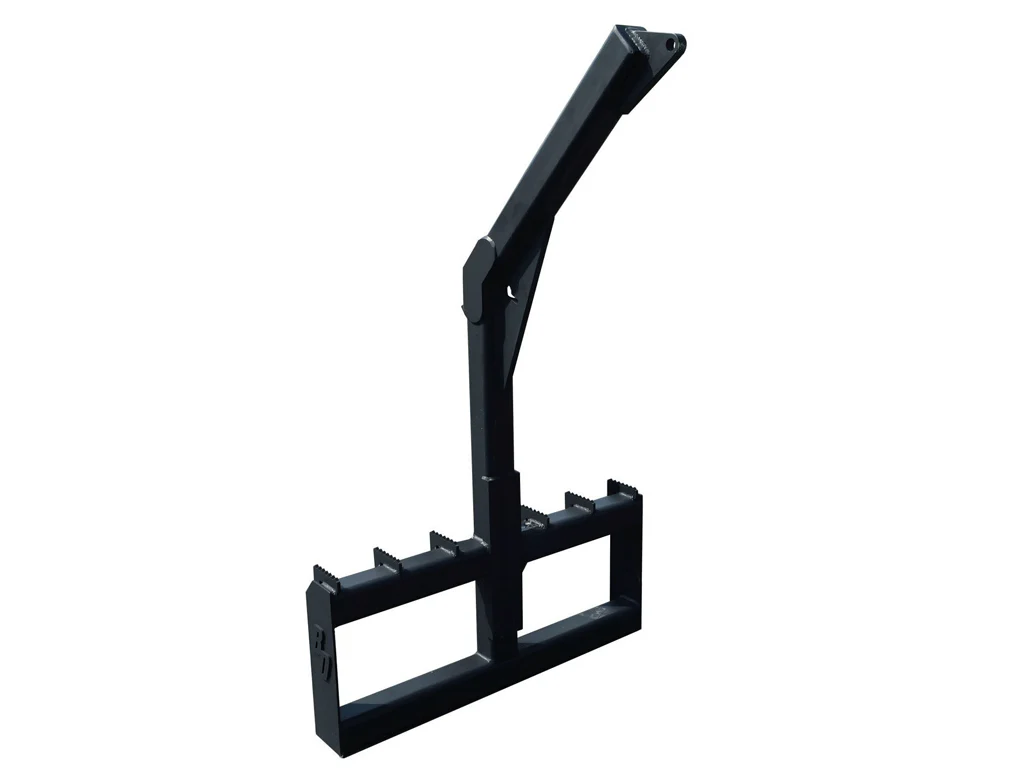

The Blue Diamond Heavy Duty Series 2 Tree Boom is built for demanding lift tasks where straps or chains are used. Featuring a robust 4" square main boom and dual tie-off points, it provides a secure, extended reach for tree handling, construction, and industrial lifting applications.

Features

• Lift capacity: rated up to 5,000 lbs
• Color/Construction: Blue Diamond finish on a 4" square main boom, 3/8" thick steel
• Reach and length: adds 56" of reach; 75" overall length
• Attachment points: 2 tie-off points (main hook + additional hook point)

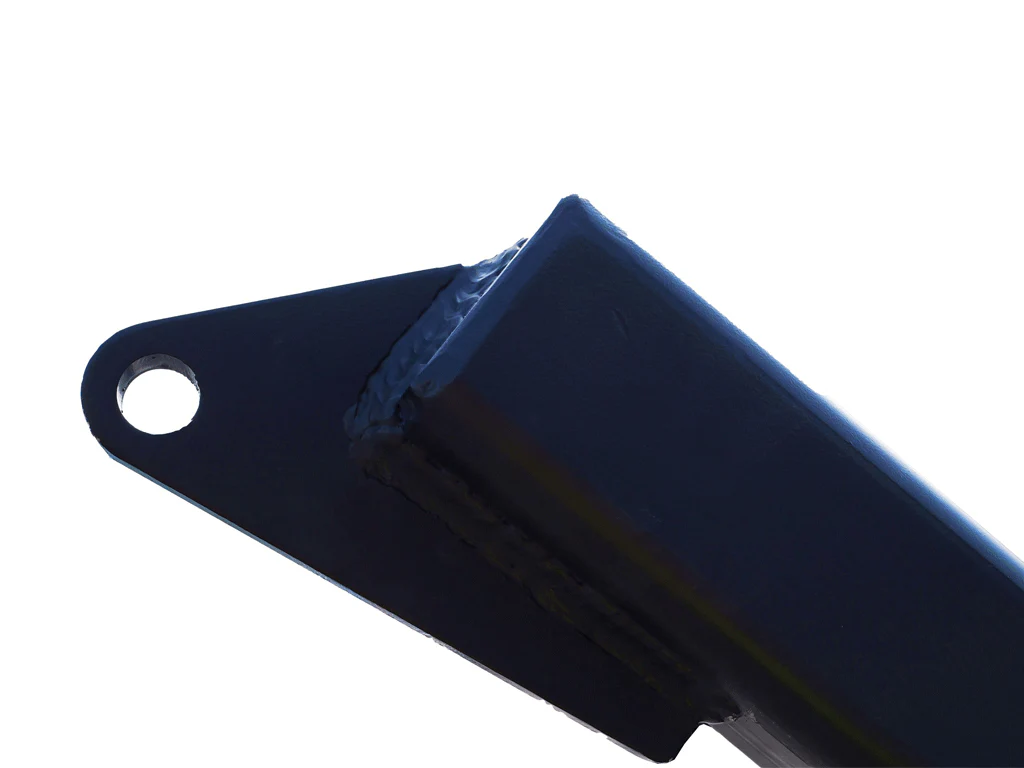

• Attachment options: 1" hole for chain or clevis hook
• Safety and strength: safety steps for easy entry/exit; mount gussets for added strength
• Weight and reference: weighs 328 lbs; Part Number 112003
• Designed for heavy-duty use with “Series 2” integrity

Benefits

• Enhanced load security with two tie-off points, reducing sway and improving control when lifting with straps or chains
• Extended reach lets you position large loads from a safe distance, minimizing vehicle repositioning and operator fatigue
• Sturdy construction and gusseted mounts deliver durability in harsh job-site conditions
• Easy ingress and egress for the operator thanks to designed safety steps
• Versatile for tree moving, landscape work, and heavy lifting scenarios where a rigid, reliable jib is needed

Part Number	Model	Weight
112003	Tree Boom, Heavy Duty Series 2, 5,000 Lift Cap	328 lbs
