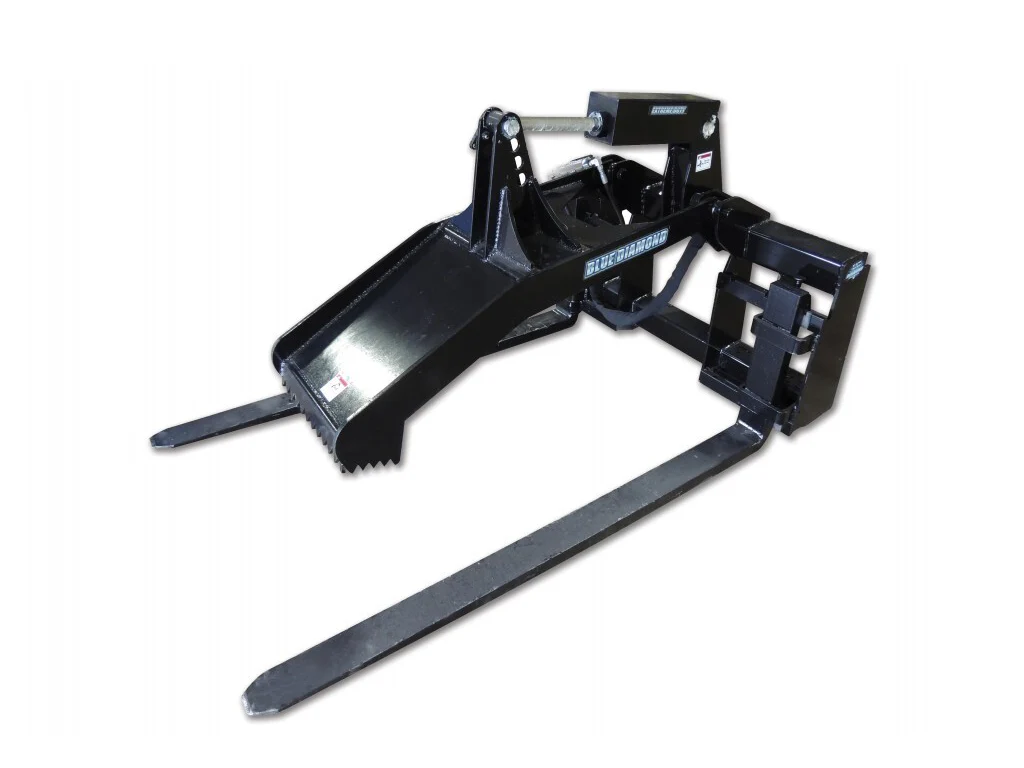

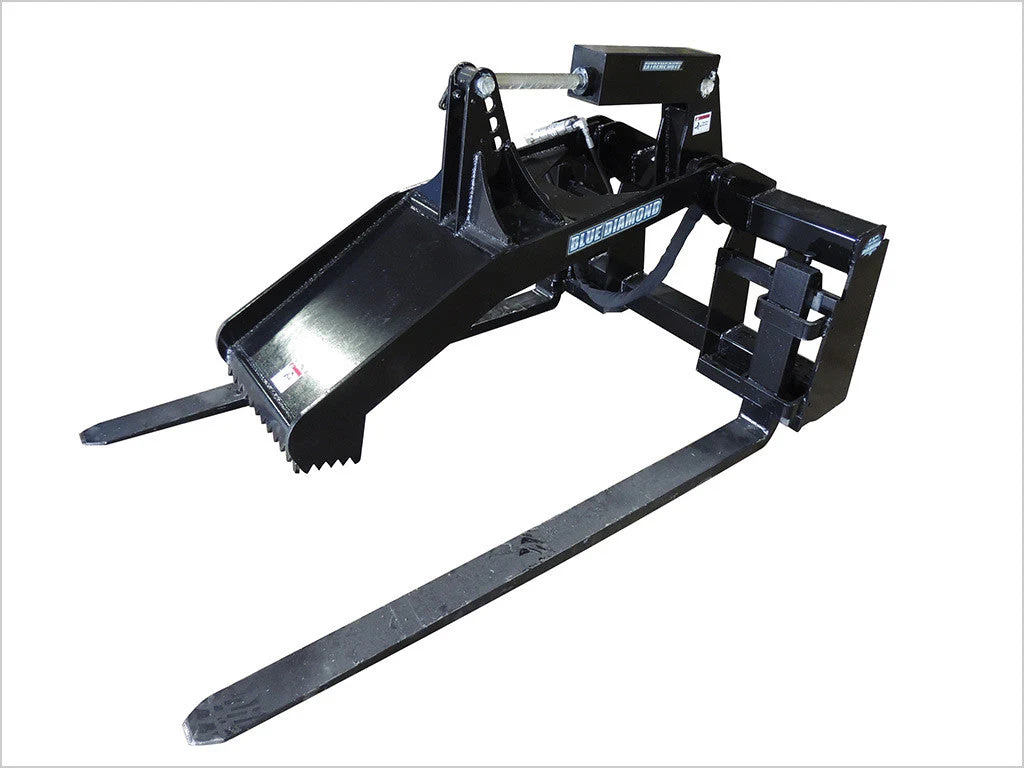

BLUE DIAMOND | Mat Grapple for Skid Steer

The Blue Diamond Mat Grapple Fork is a purpose-built skid steer attachment designed to handle equipment mats with precision. Its adjustable cylinder mount point lets you tailor the opening to your mat width, while robust tines and a secure top-clamp system ensure mats stay put during transport. With multiple tine length options and a strong 4,000 lb capacity, this grapple is built to streamline mat handling on job sites, yards, and warehouses.

Features

• Designed specifically for equipment mats
• Tine sizes: 48", 60", 72", or 84" (tines are 1 3/4" thick)
• 4-position top clamp to securely hold mats
• Adjustable cylinder mount point to open wider or close tighter
• 4,000 lb (capacity)
• Fits Class 2 fork tines
• Tines do not adjust
• Weight varies by model (approximate):
• Mat Grapple without Tines — 936 lbs
• With 48" Tines — 950 lbs
• With 60" Tines — 715 lbs
• With 72" Tines — 936 lbs
• With 84" Tines — 936 lbs

Benefits

Move mats efficiently in a single pass, reducing handling time and labor on site. The top clamp securely grips mats to prevent slippage, while the adjustable opening accommodates different mat widths and thicknesses. The 4,000 lb capacity supports heavy mats without strain, and compatibility with Class 2 fork tines ensures quick integration with existing equipment. By choosing a dedicated mat grapple, you minimize mat damage, improve stacking and loading workflows, and create safer, more predictable mat handling for crews in construction, rental yards, and maintenance facilities.

Ideal for: facilities that regularly manage large quantities of equipment mats, rental fleets, and fleets performing mat installation or removal in yards, warehouses, or job sites.

Part Number	Model	Tine Size	Weight
106004	Mat Grapple Without Tines	—	936 lbs
306017	Mat Grapple with 48" Tines	48” X 1 3/4”	950 lbs
306016	Mat Grapple with 60" Tines	60” X 1 3/4”	715 lbs
306015	Mat Grapple with 72" Tines	72” X 1 3/4”	936 lbs
306014	Mat Grapple with 84" Tines	84” X 1 3/4”	936 lbs
