BLUE DIAMOND MATERIAL SPREADER

The BLUE DIAMOND MATERIAL SPREADER is a versatile, heavy‑duty spreader designed for skid steers, tractors, and any 2” trailer receiver. It features a large 5.75 cu ft hopper capable of holding about 460 lbs of salt, a robust 3" vertical super flow auger, and a 10" spinner for even distribution. With a full wiring harness and quick disconnect, setup and removal are straightforward, making this spreader a dependable choice for winter maintenance, agriculture, and landscape projects.

Features

• Capacity: 5.75 cu ft hopper (approximately 460 lbs of salt)
• Compatibility: mounts to skid steers, tractors, and 2" trailer receivers; receiver mount included
• Spreading width: adjustable up to 40 feet for efficient coverage
• Drive system: 3" vertical super flow auger for consistent material flow
• Distribution: 10" spinner for even pattern across the spread width

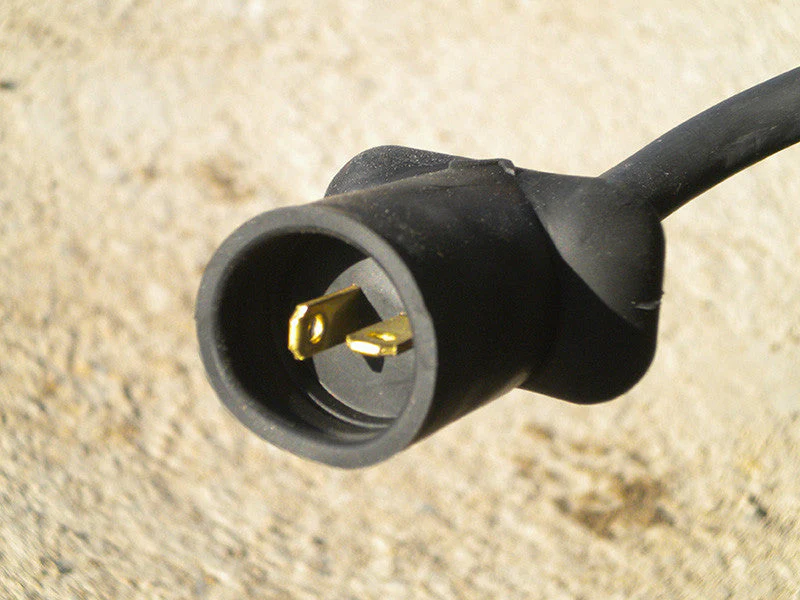

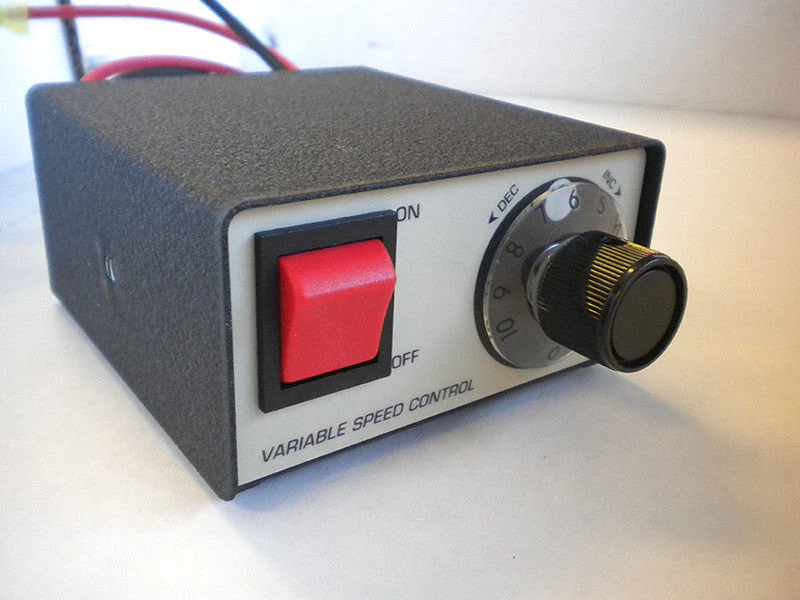

• Controls: full wiring harness with quick disconnect for easy removal
• Included: top screen for material control
• Options: Vibrator Kit and Gate Kit for pelleted materials (fertilizer, seed)
• Mounting note: solid skid steer mount has been discontinued; to mount on a skid steer, add a trailer spotter for versatility

Benefits

• Wide, uniform coverage up to 40 feet, saving time on large areas such as parking lots, driveways, and road shoulders
• Large hopper reduces refills, keeping you on task longer during applications
• Versatility to handle salt, granulated fertilizer, and pelleted seed with optional Gate Kit
• Vibrator Kit (optional) helps move damp or compacted materials for reliable flow
• Receiver mount provides flexible installation across equipment types; the skid steer setup can be expanded with a trailer spotter for enhanced portability
• Durable construction and precision components (auger and spinner) deliver consistent performance in demanding conditions
• Ready-to-use wiring harness simplifies connection and quick removal when switching between jobs or equipment

Part Number	Model	Weight
101055	Spreader, Standard Duty, 5 cu. ft.	95 lbs
101060	Receiver 2, Heavy Duty (For Standard Duty)	10 lbs
101065	Salt Spreader, Vibrator Kit (For Standard Duty)	9 lbs
101070	Gate Kit Spreader, Free Flowing (For Standard Duty)	8 lbs
