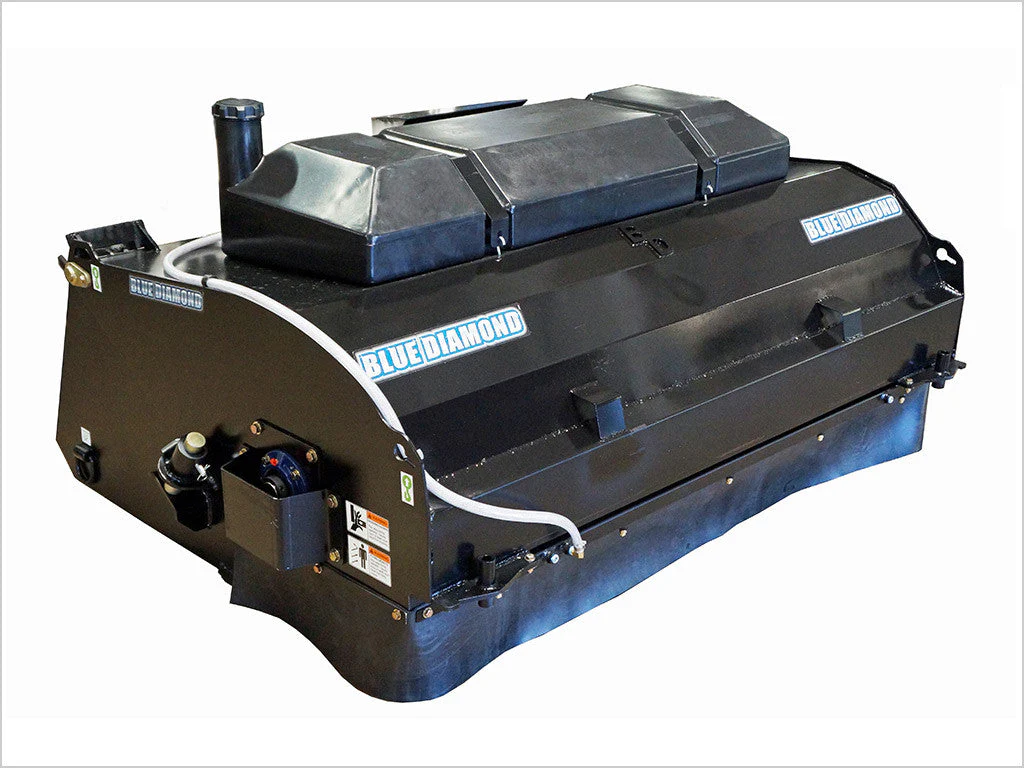

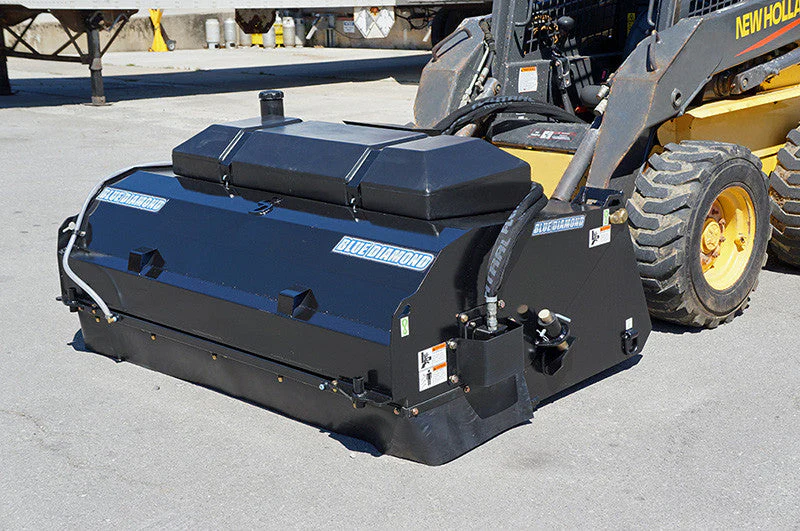

BLUE DIAMOND | Pickup Broom for Skid Steer Series 2

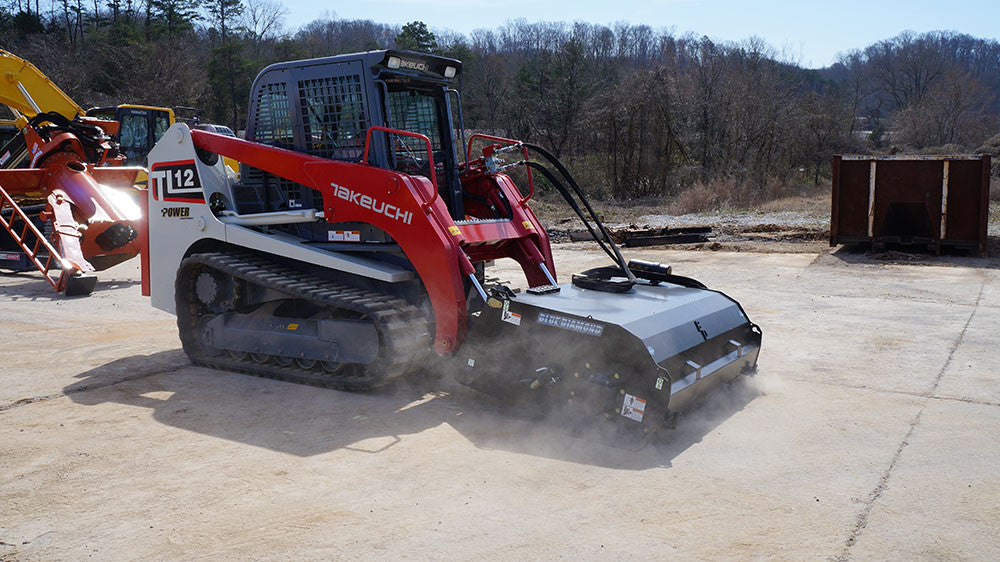

Engineered for heavy commercial use, the BLUE DIAMOND Pickup Broom for Skid Steer Series 2 delivers rugged reliability on roadwork sites and in rental fleets. Its reinforced design, built-in water kit, and low-profile tank maximize visibility and durability where it matters most, while oversized components and a robust leading edge extend service life even in demanding environments.

Features

• 26" diameter poly/steel broom for lasting performance
• Widths available: 60", 72", 84", 96"
• Heavy 2" main shaft with oversized 6" bearings
• 7" tall front crash bar for added protection
• Motor and shaft guards with heavy-duty dump stops
• Grease fittings on all pivot points and bearings for easy maintenance

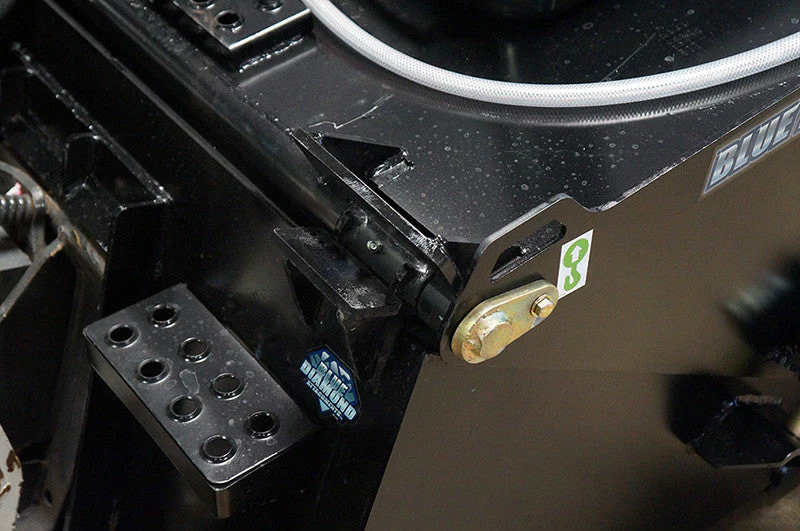

• Steps mounted on back of bucket for easy host-machine entry and exit

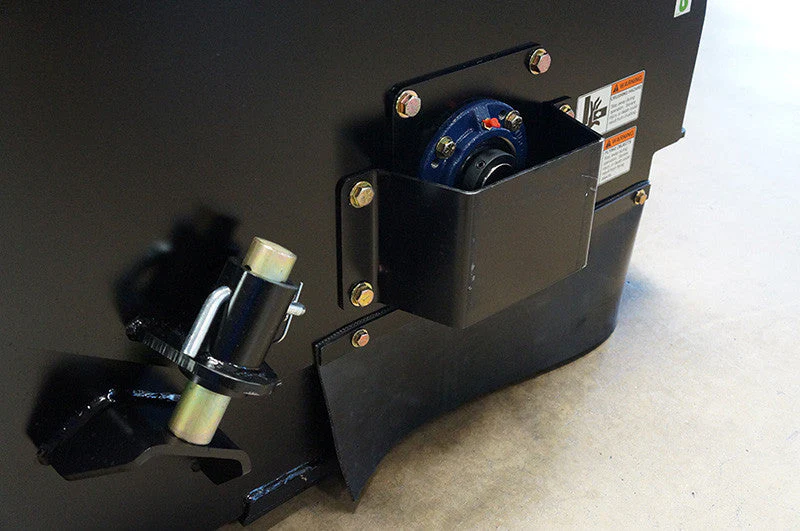

• 1 1/2" x 7" zinc height adjustment pins with 4 positions

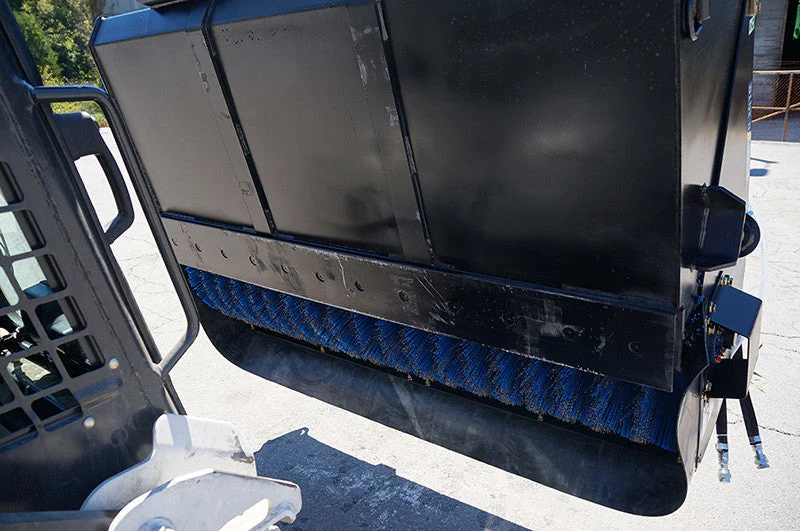

• Bolt-on rubber skirting to contain debris

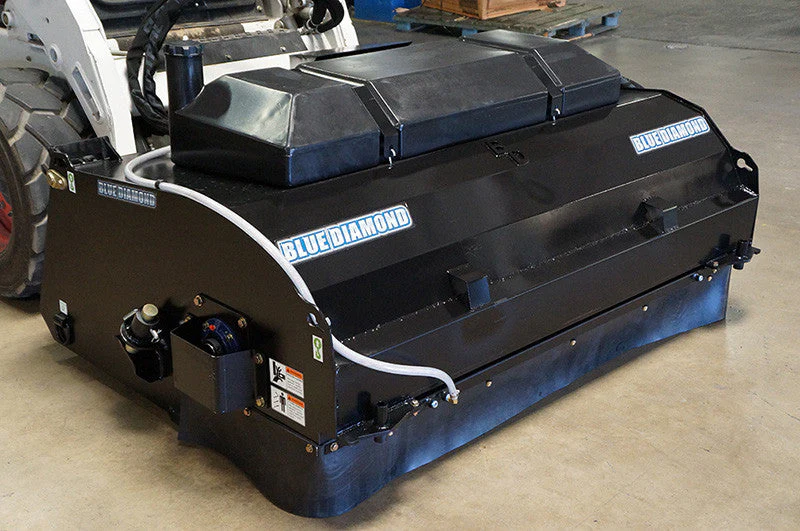

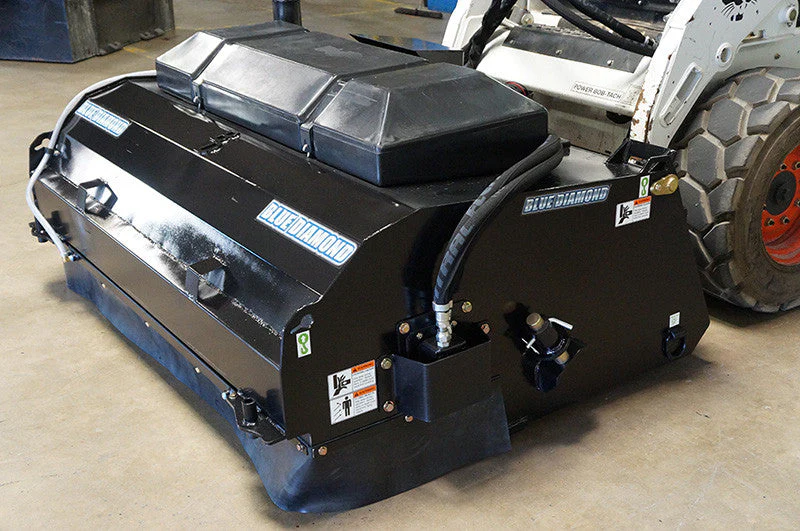

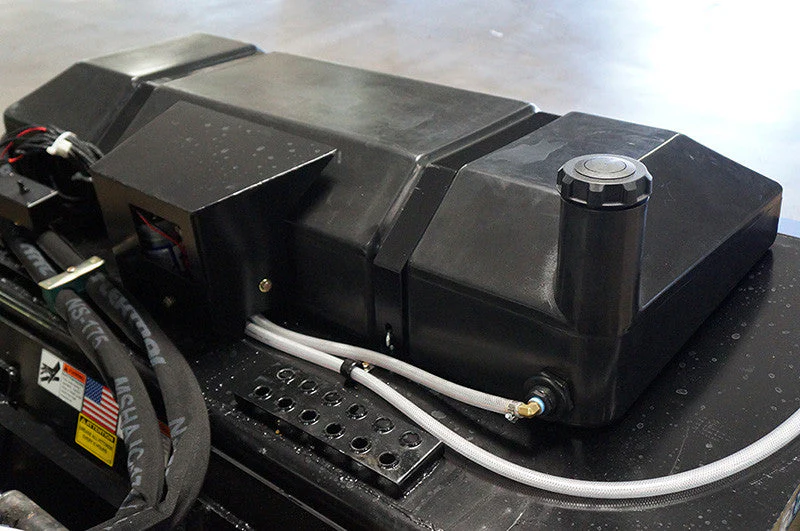

• Low-profile water tank and built-in water kit to improve visibility and safety

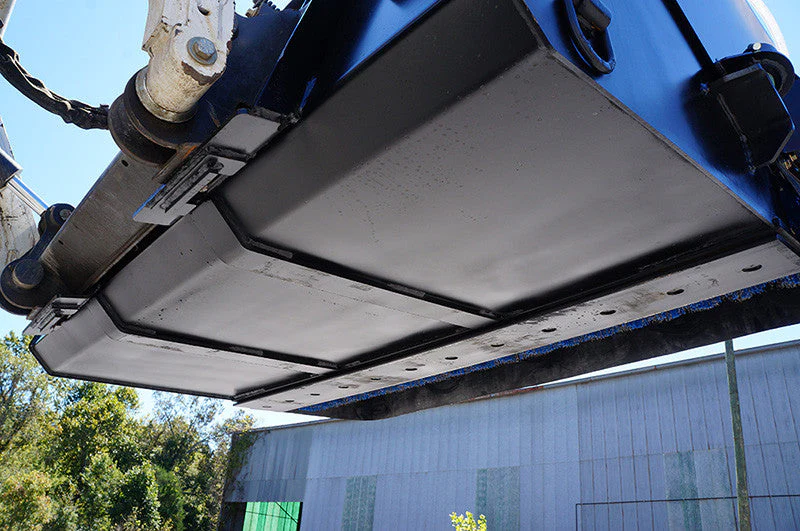

• Edge protection: oversized 8" x 3/4" double bevel edge and wear bars welded to the bucket bottom

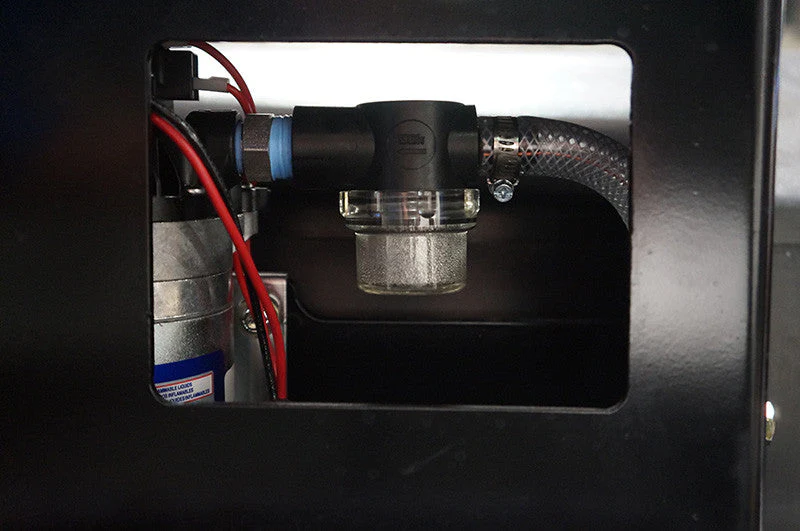

• Predrilled for optional pressurized water system; optional 37 gallon water kit included

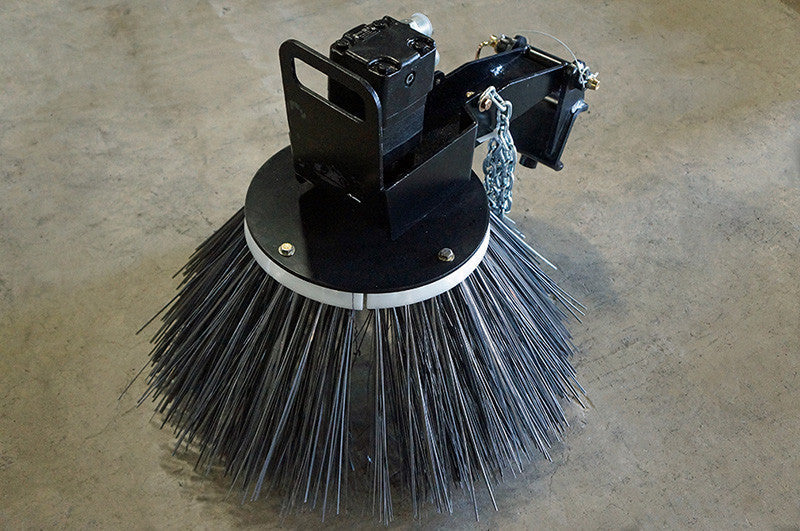

• Optional gutter brush for enhanced debris pickup

Benefits

This pickup broom is built to minimize downtime and maximize debris removal efficiency on tough sites. Key benefits include:

• Improved operator visibility and safer sweeping with a low-profile water tank
• Enhanced durability through reinforced leading edge, wear bars, and oversized bearings
• Flexible sizing to fit a range of skid steer platforms, from compact to large-frame machines
• Reliable water-dusting control via predrilled compatibility and optional high-capacity water kit
• Low-maintenance design with grease points and straightforward pivot components
• Customizable setup: optional gutter brush and water system configurations tailor-made for your site
• Designed for construction, road work, and rental fleets seeking longevity and consistent performance

Specifications by width

• 60" – 995 lbs; 31 total wafers (15 wires / 16 poly); 58 minutes water run time; 15–25 GPM
• 72" – 1125 lbs; 37 total wafers (18 wires / 19 poly); 40 minutes water run time; 15–25 GPM
• 84" – 1300 lbs; 43 total wafers (21 wires / 22 poly); 38 minutes water run time; 15–25 GPM
• 96" – 1450 lbs; 49 total wafers (24 wires / 25 poly); 33 minutes water run time; 15–25 GPM

SIZE	WEIGHT	WIRE/POLY WAFERS	TOTAL WAFERS	WATER RUN TIME	FLOW RANGE
60″	995 lbs	15 wire / 16 poly	31	58 minutes	15-25 GPM
72″	1125 lbs	18 wire / 19 poly	37	40 minutes	15-25 GPM
84″	1300 lbs	21 wire / 22 poly	43	38 minutes	15-25 GPM
96″	1450 lbs	24 wire / 25 poly	49	33 minutes	15-25 GPM
