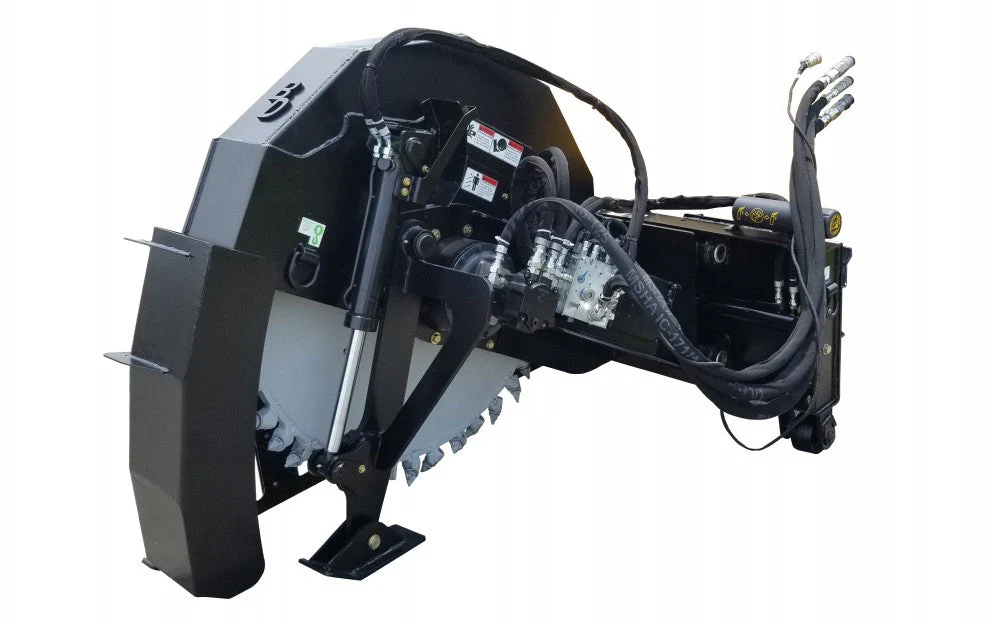

BLUE DIAMOND Road Saw for Skid Steer

Features

• Two cutting depth options: 0 to 10 inches (17" wheel model) or 0 to 18 inches (24" wheel model) to match shallow or deep pavement cuts.
• Ground-engaging frame for precise depth-of-cut control—the wheel moves within a stable frame to maintain a consistent cut.
• Planetary reduction drives deliver maximum cutting torque under load, improving efficiency on asphalt and concrete.
• Hydraulic cutting depth and hydraulic sideshift: 0–10" (or 0–18" on the deep-cut model) with 0–26" of side shift for precise alignment along road features.
• High-flow hydraulics required: minimum 30 GPM at 2,500 PSI for optimal performance.
• Wheel and tooth-plate options tailored to material and task: 17" wheel with 2", 3.25", 4", 5", 6.25", or 8" width tooth plates; 24" wheel with 3.25", 4", 5", 6.25", or 8" width tooth plates.
• Self-propelled skid-steer compatibility designed for efficient roadwork in tight or congested sites.

Benefits

• Increases production on road and pavement projects while keeping operating costs competitive compared with smaller, self-propelled saws.
• Precise depth control minimizes material waste and protects underlying utilities, making trenching and cross-cutting safer and more predictable.
• Adjustable side-shift up to 26 inches enables accurate alignment with curb lines, utilities, or repair zones without repositioning the machine.
• Robust torque from planetary drives helps maintain cutting speed through tough materials, reducing stalling and improving consistency.
• Versatile wheel and tooth-plate configurations let you tailor cutting behavior for asphalt, concrete, or reinforced sections, enhancing efficiency on varied projects.
• Ideal for municipal maintenance, road rehabilitation, utility installation, and other off-road or confined-site tasks where space is limited.

Model	Cutting Wheel & Saw Depth
361120	6" - 17" CUT DEPTH, 2" WIDTH TOOTH PLATE
361121	6" - 17" CUT DEPTH, 3 1/4" WIDTH TOOTH PLATE
361122	6" - 17" CUT DEPTH, 4" WIDTH TOOTH PLATE
361123	6" - 17" CUT DEPTH, 5" WIDTH TOOTH PLATE
361124	6" - 17" CUT DEPTH, 6 1/4" WIDTH TOOTH PLATE
361125	6" - 17" CUT DEPTH, 8" WIDTH TOOTH PLATE
361130	8" - 24" CUT DEPTH, 3 1/4" WIDTH TOOTH PLATE
361131	8" - 24" CUT DEPTH, 4" WIDTH TOOTH PLATE
361132	8" - 24" CUT DEPTH, 5" WIDTH TOOTH PLATE
361133	8" - 24" CUT DEPTH, 6 1/4" WIDTH TOOTH PLATE
361134	8" - 24" CUT DEPTH, 8" WIDTH TOOTH PLATE
