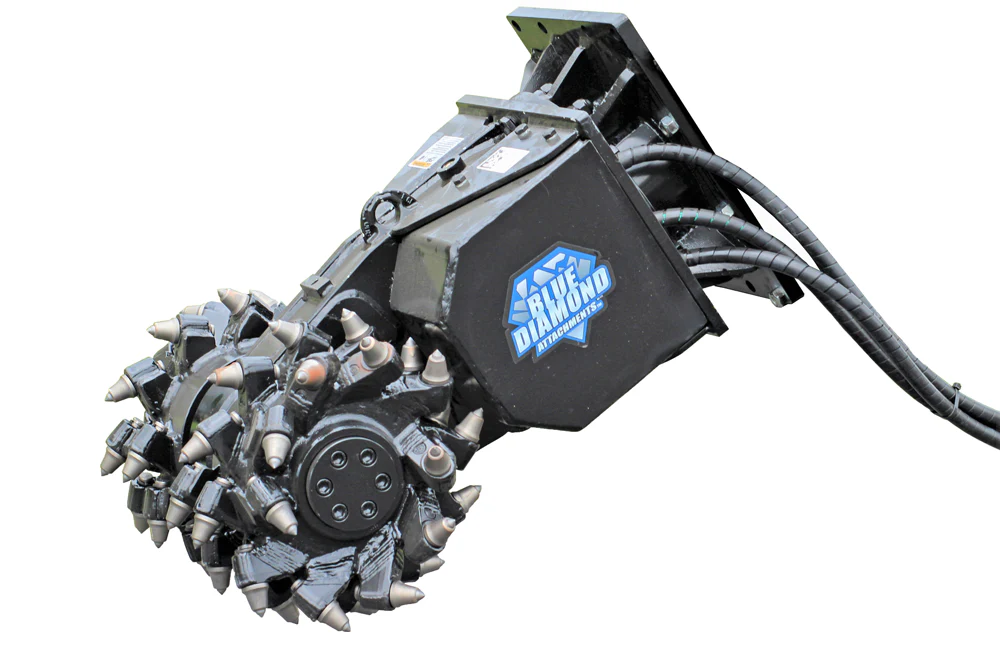

BLUE DIAMOND Rock & Concrete Grinder For Skid Steer
The Blue Diamond Rock & Concrete Grinder for skid steer is designed to tackle rock, concrete, and asphalt with precision and reliability. Built to deliver clean trenches with vertical walls, this grinder attaches seamlessly to most excavators and skid steers via a bolt-on mount and standard hydraulic systems.
Features
- All American-made parts & components for dependable performance and easier field service.
- Powerful high-torque hydraulic motors deliver consistent cutting force through tough materials.
- Robust cutting drums engineered for maximum production and extended life; drums are customizable to suit different applications.
- Durable spur gears & housing designed to withstand daily grinding workloads.
- Bolt-on mount compatible with excavators or skid steers for quick, tool-free installation.
- Multi-model lineup to fit a wide range of machines and hydraulic flows, with head diameters from 9" to 29" and cutting widths from 19" to 40".
- Broad hydraulic compatibility supports a flow range from 5 to 85 GPM and carrier weights from roughly 1,300 to 90,000+ lbs depending on the model.
- High-pressure capability built for demanding jobs, with system pressures ranging from about 5,076 to 14,500 psi.
Benefits
- Efficiently remove rock, concrete, and asphalt while creating trenches with vertical walls—ideal for utilities, drainage, and road repairs.
- Increase on-site productivity with fast material removal and a design that emphasizes long drum life and reliable operation.
- Match the right model to your machine and hydraulic system for optimal performance, whether you’re working with a compact skid steer or a larger excavator.
- Reduce downtime thanks to rugged construction and readily available components made in America.
- Simple installation and serviceability with a bolt-on mount and modular drum design.
- Versatility across applications—perfect for trench prep, foundation work, channeling, and heavy surface demolition—without swapping attachments.
| G1S | G1 | G2 | G3 | G3XL | G4 | |
| Part Number | 159010 | 159015 | 159020 | 159025 | 159030 | 159035 |
| Flow Range Gpm | 5-12 | 8-20 | 12-26 | 30-45 | 34-65 | 50-85 |
| Carrier Weight Lbs. | 1,300-5,000 | 6,900-17,000 | 17,000-30,000 | 22,000-39,000 | 33,000-66,000 | 50,000-90,000 |
| Max Pressure Psi | 5,076 | 5,800 | 7,300 | 9,400 | 11,600 | 14,500 |
| Head Diameter | 9″ | 11″ | 16.5″ | 22″ | 23" | 29" |
| Cutting Width | 19″ | 21″ | 25″ | 31″ | 32" | 40" |
| Max Torque Output Ft/Lbs | 1,196 | 2,625 | 4,370 | 8,740 | ||
| Max Cutting Force Lbs. | 3,348 | 5,717 | 7,028 | 9,545 | ||
| Weight Lbs. | 265 | 635 | 1,035 | 2,045 | 2,290 | 4,125 |
