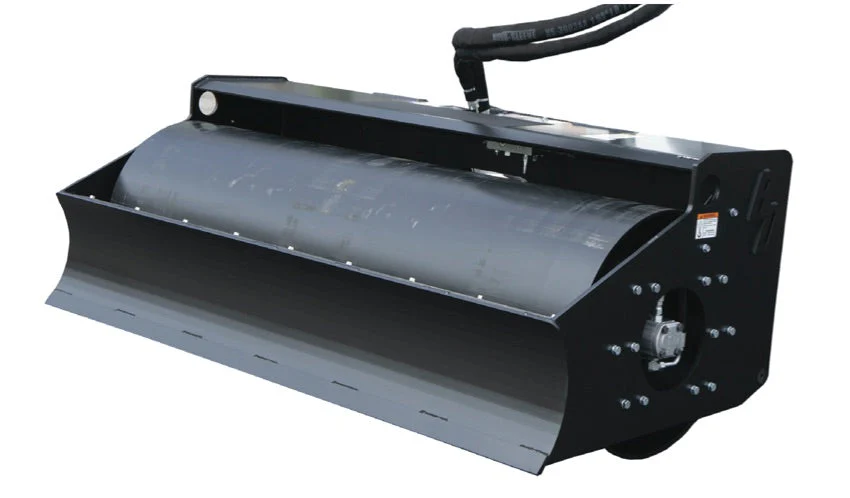

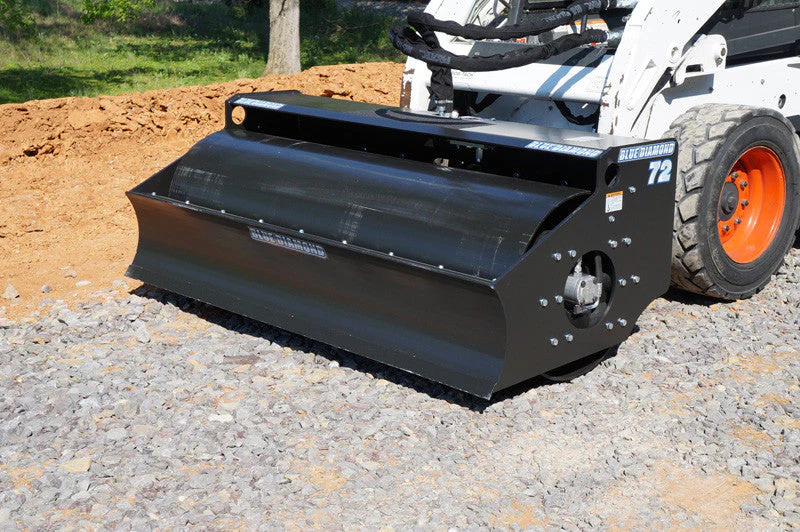

BLUE DIAMOND Vibratory Roller for Skid Steer
Features
- Working widths: 73" and 84" models, available with Smooth or Pad Foot drums (73" Smooth, 73" Pad Foot, 84" Smooth, 84" Pad Foot)
- hydraulically powered exciter systems with oil mist lubrication
- Minimized exciter shaft deflection and lower operating temperatures for extended life
- Industry-leading bearing and seal design to reduce failures
- Integral knockdown blade built into the roller frame
- Vibrating drums isolated from the frame to minimize vibration transmission to the host machine
- Universal quick attach system for fast mounting on compatible skid steers
- Drive motor housed inside a heavy-duty steel frame
- 12 heavy-duty rubber shock mounts for efficient vibration damping
- Control valve block regulates oil flow to prevent over-speeding and over-pressurization of the exciter shaft
- Hydraulic connection: ½" flat
- Model weights: 2050 lb (73" Smooth), 2210 lb (73" Pad Foot), 2300 lb (84" Smooth), 2450 lb (84" Pad Foot)
- Exciter speed: 3000 RPM; Centrifugal force: 8850–9765 lb
- Flow requirements: 10–50 GPM; Pressure: 1500–3000 psi
Benefits
The Blue Diamond Vibratory Roller is designed to deliver efficient, reliable compaction when paired with a skid steer. The oil-mist lubricated exciter system reduces wear and heat buildup, helping you maximize uptime between maintenance. Drum isolation minimizes vibration transmission to the host machine, protecting the skid steer and improving operator comfort on longer jobs.
With a universal quick attach, you can rapidly deploy or swap the roller on compatible skid steers, minimizing downtime on busy sites. The integral knockdown blade supports preliminary grading and edge work, streamlining site prep. The choice of smooth or pad-foot drums lets you tailor the setup to surface conditions: smooth drums for uniform compaction on homogeneous beds, or pad-foot drums for cohesive compaction on granular or uneven substrates.
Ideal for contractors and rental yards, this attachment presents a cost-effective, low-maintenance alternative to larger self-contained rollers. For best results, operate within the listed hydraulic flow and pressure to achieve the target centrifugal force and performance across a range of soils and lift heights. This roller attachment helps you achieve durable base compaction, faster project turnaround, and fewer maintenance interruptions on job sites.
| PART NUMBER | 124010 | 124015 | 124030 | 124035 |
| MODEL | 73” Smooth | 73” Pad Foot | 84" Smooth | 84" Pad Foot |
| LENGTH | 43.3" | 43.3" | 43.3" | 43.3" |
| HEIGHT | 29" | 30" | 29" | 30" |
| WEIGHT (LBS) | 2050 | 2210 | 2300 | 2450 |
| EXCITER SPEED (RPM) | 3000 | 3000 | 3000 | 3000 |
| CENTRIFUGAL FORCE (LBS) | 8850 | 8850 | 9765 | 9765 |
| FLOW REQUIREMENTS (GPM) | 10-50 | 10-50 | 10-50 | 10-50 |
| PRESSURE REQUIREMENTS | 1500-3000 | 1500-3000 | 1500-3000 | 1500-3000 |
| HYDRAULIC CONNECTION | ½" Flat | ½" Flat | ½" Flat | ½" Flat |
