Original: $6,500.00
-65%$6,500.00
$2,275.00The Story

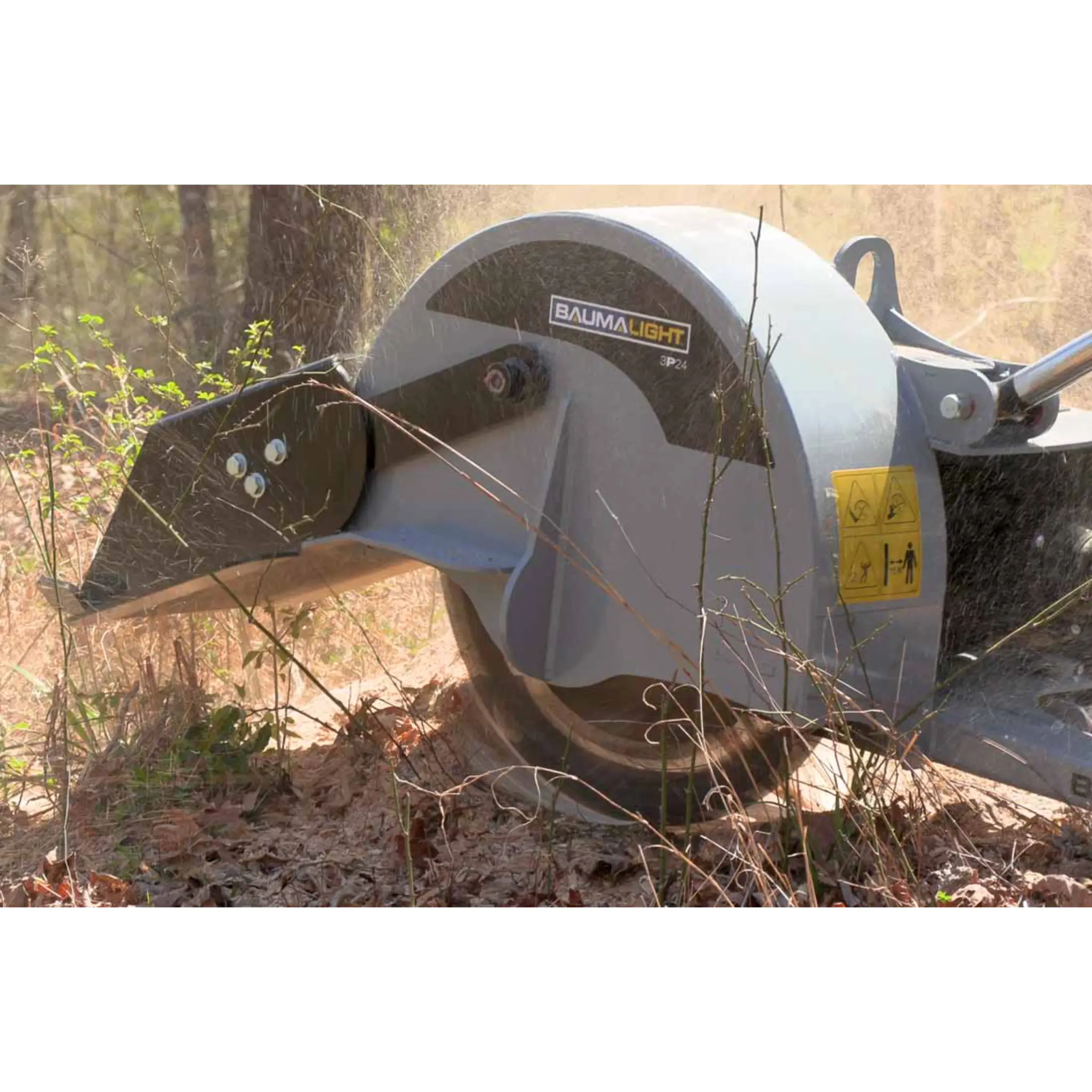

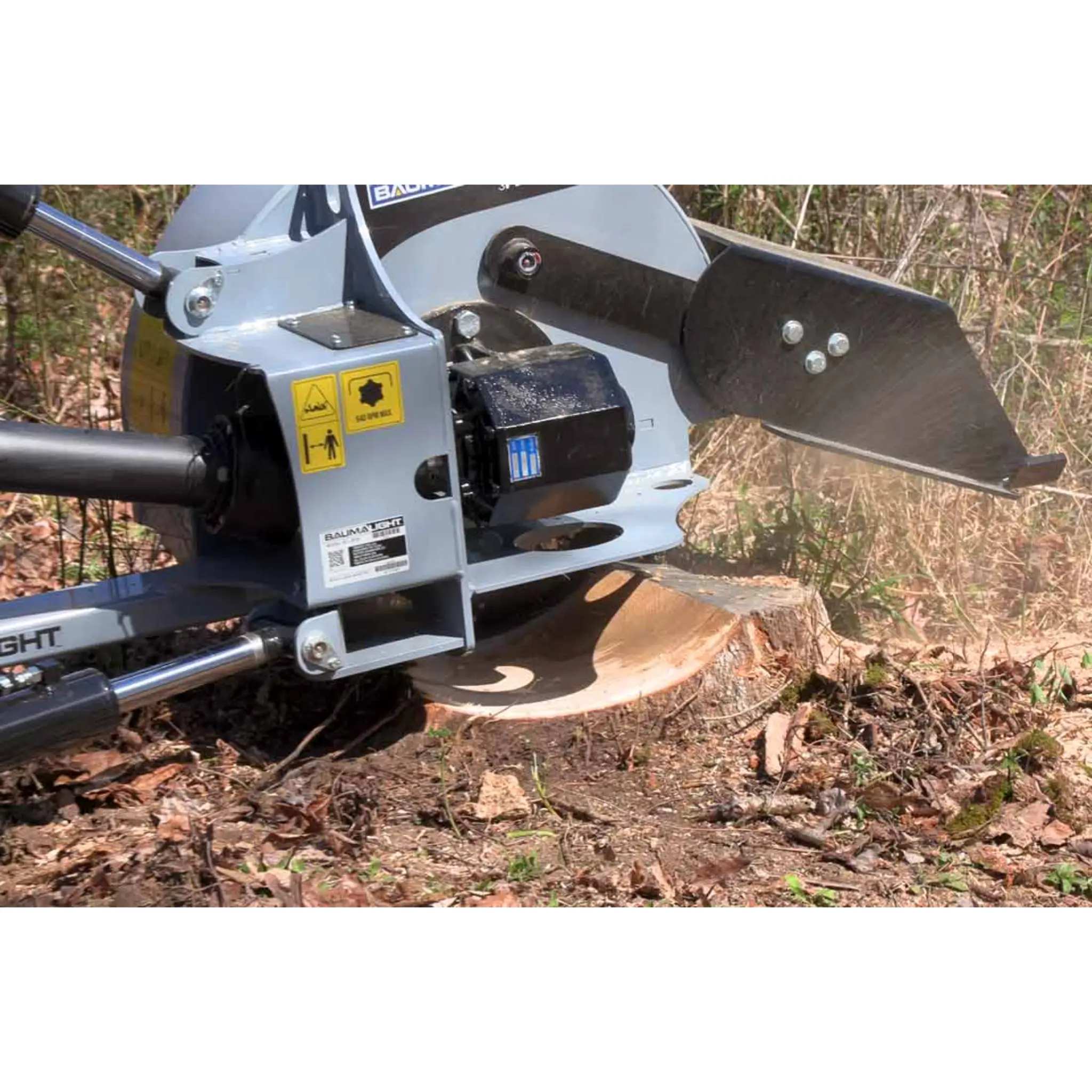

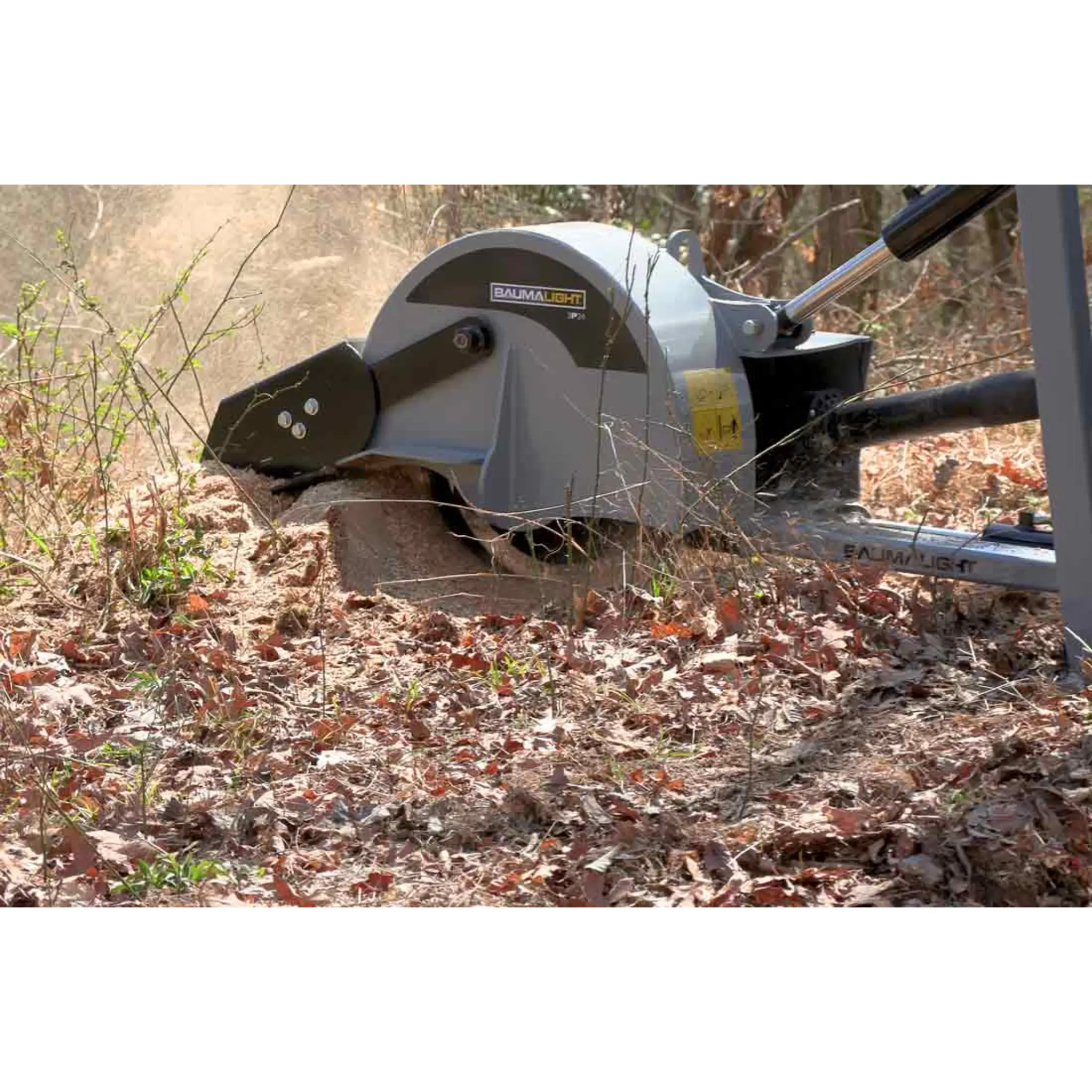

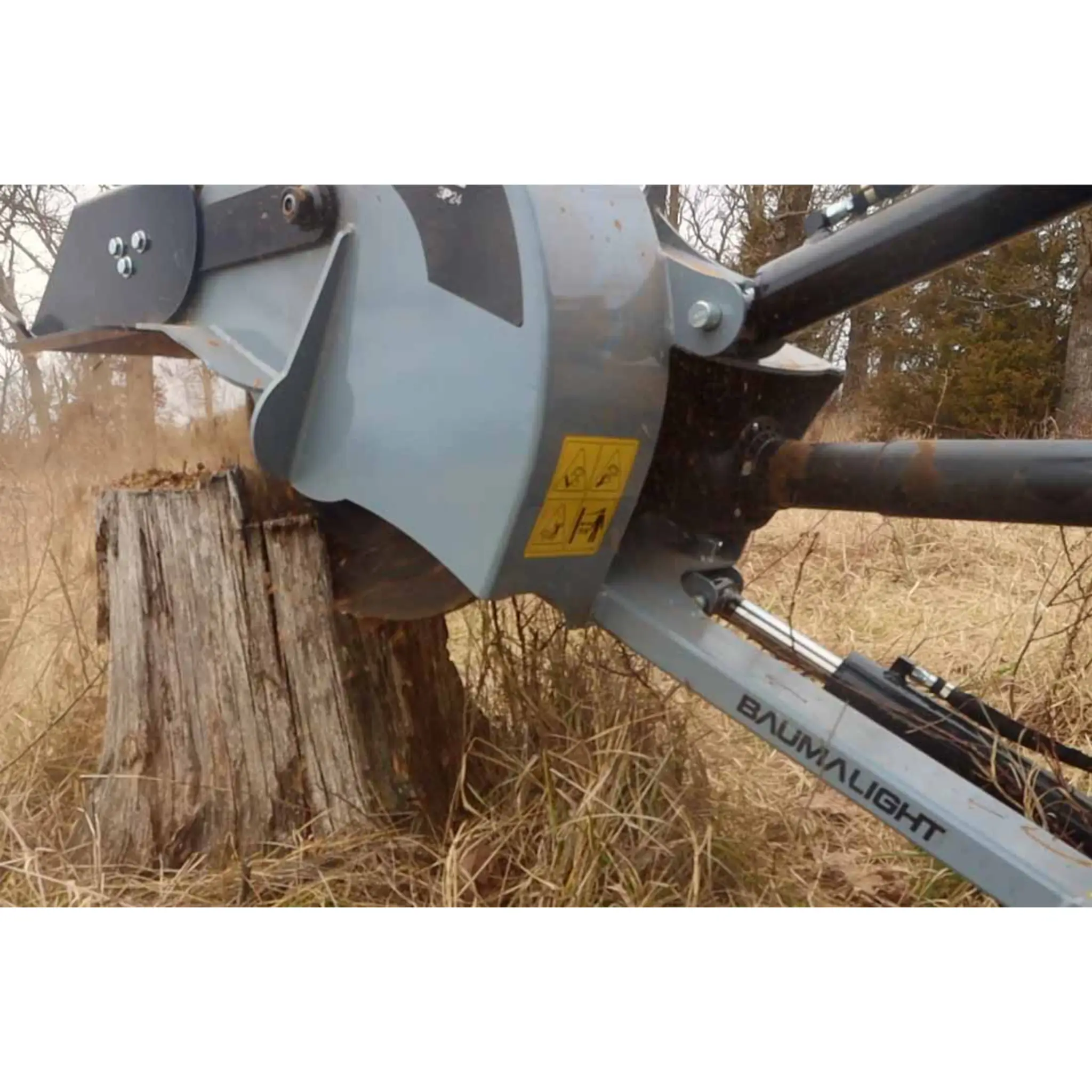

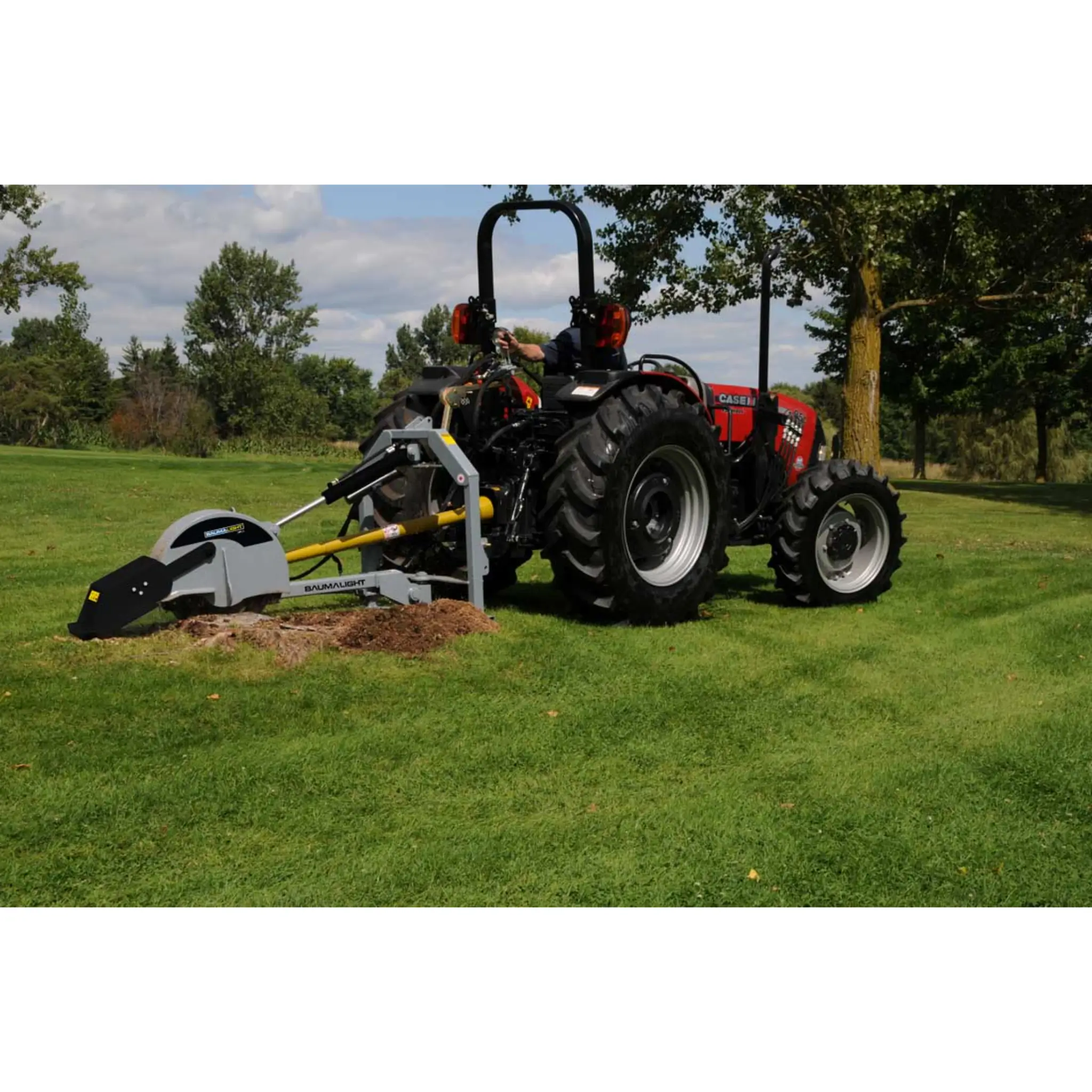

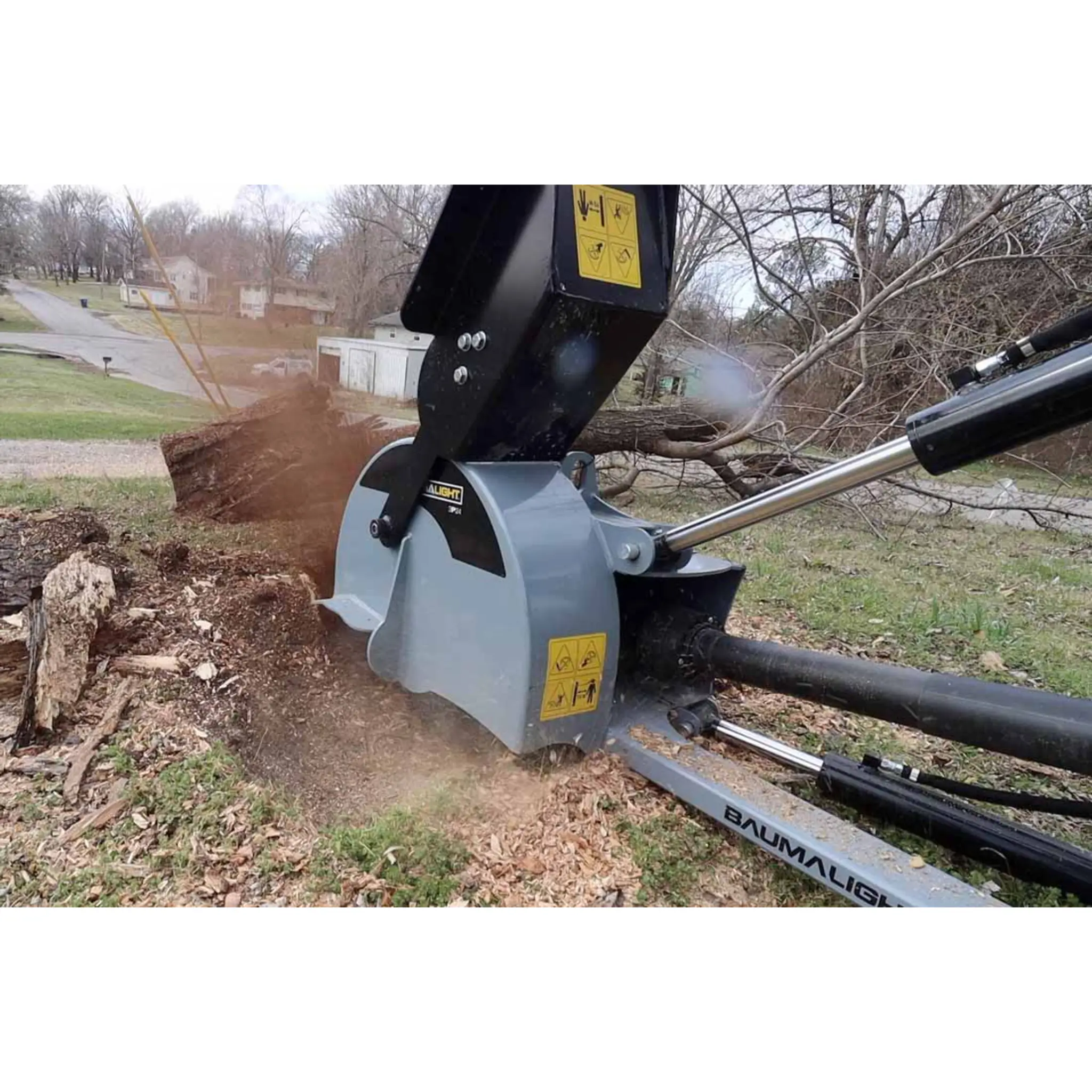

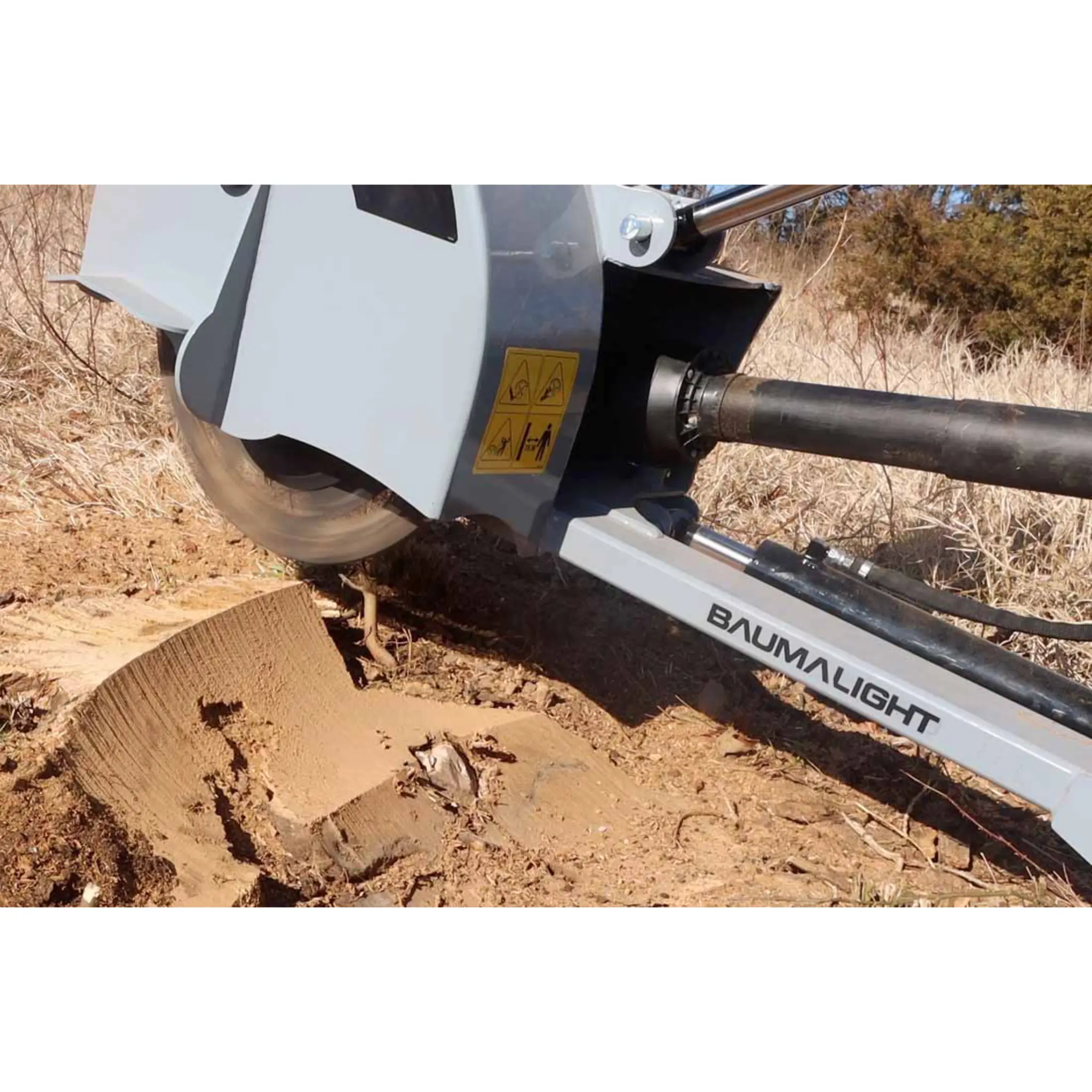

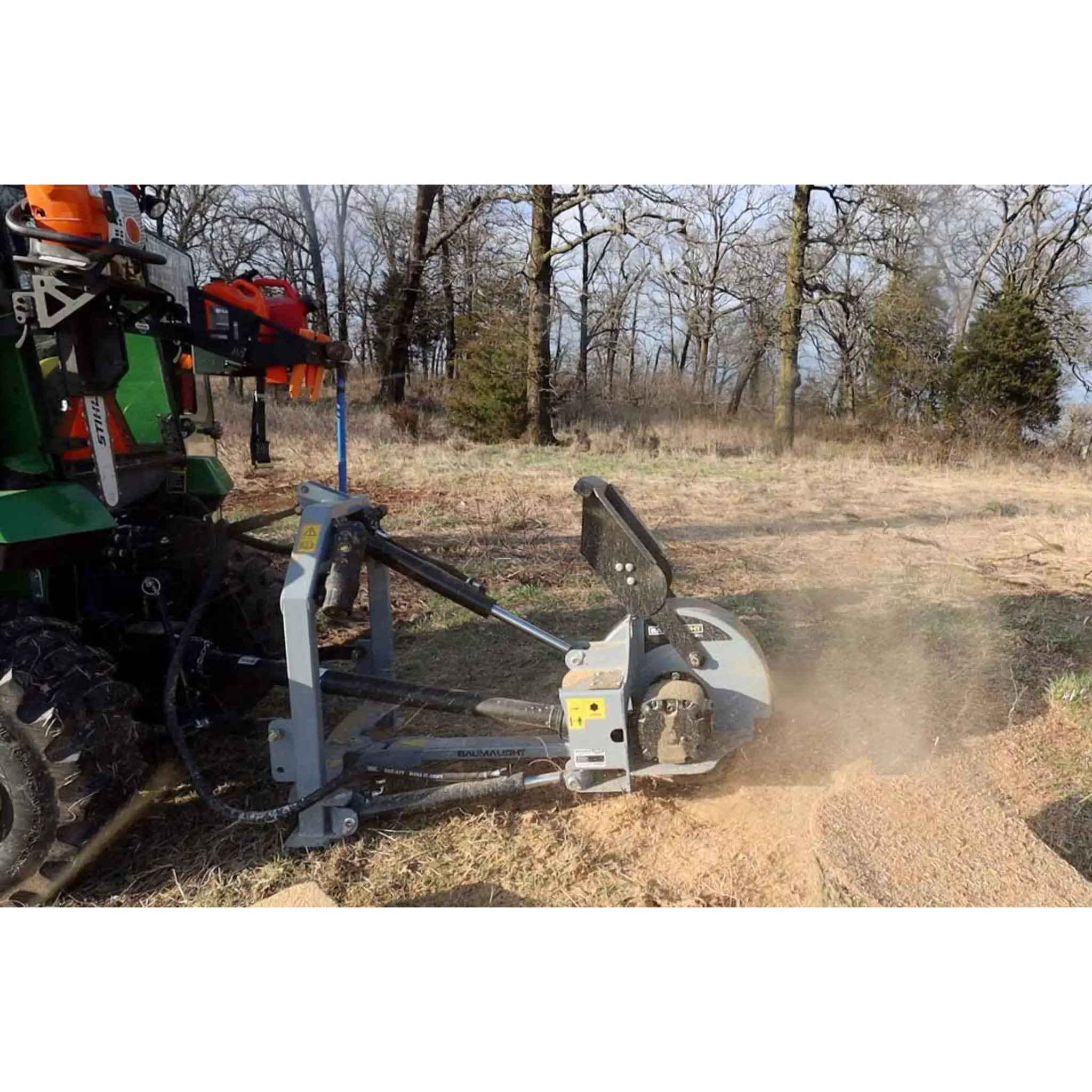

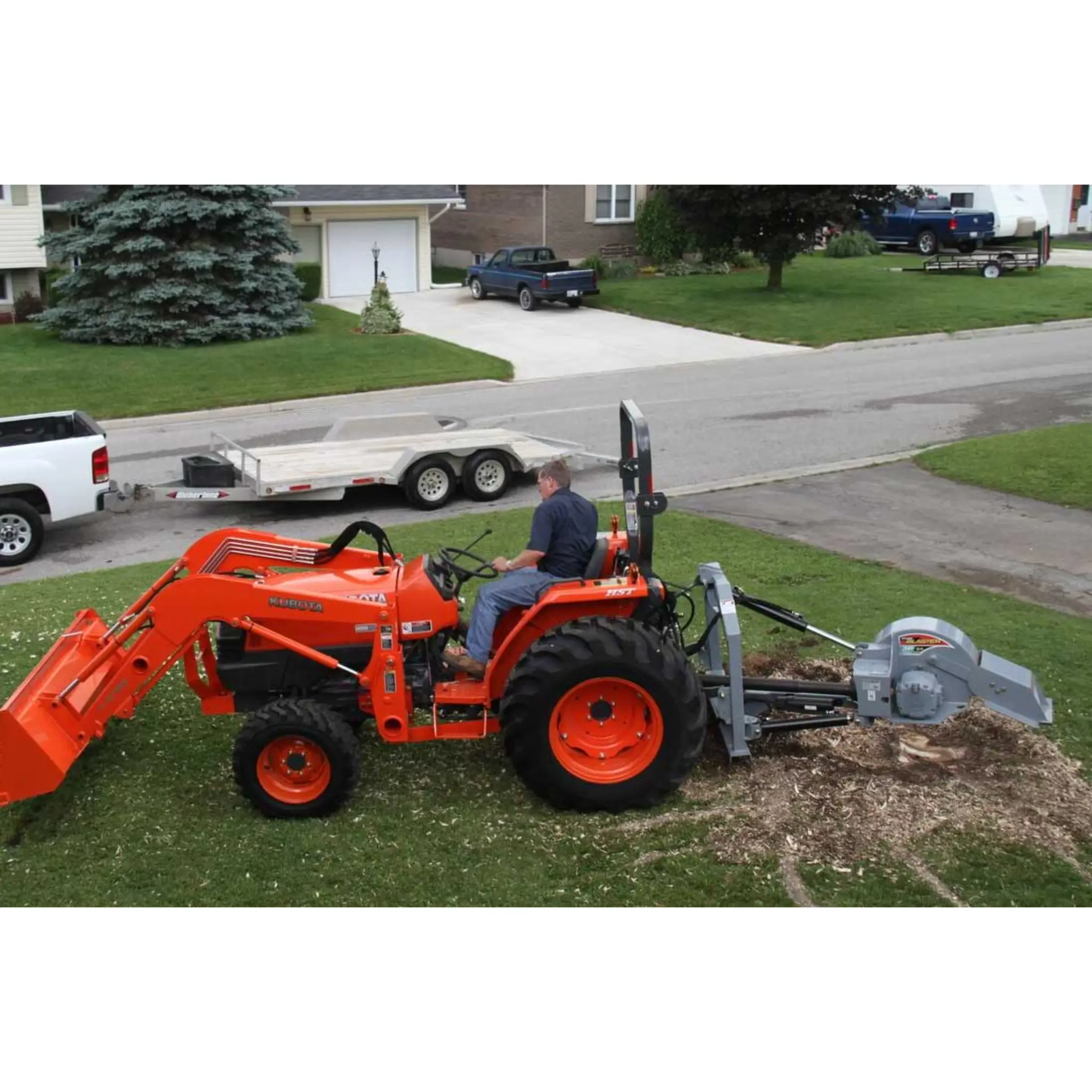

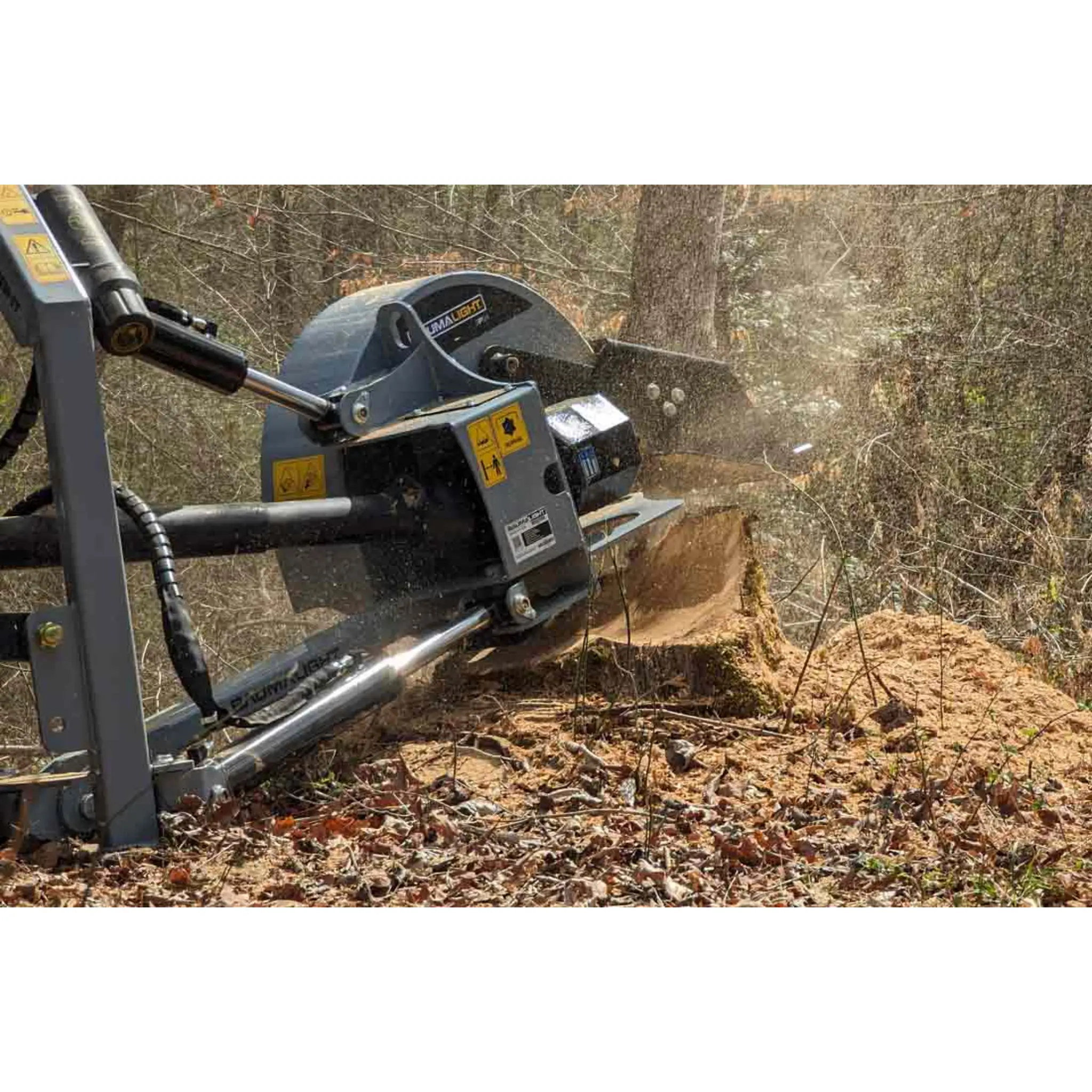

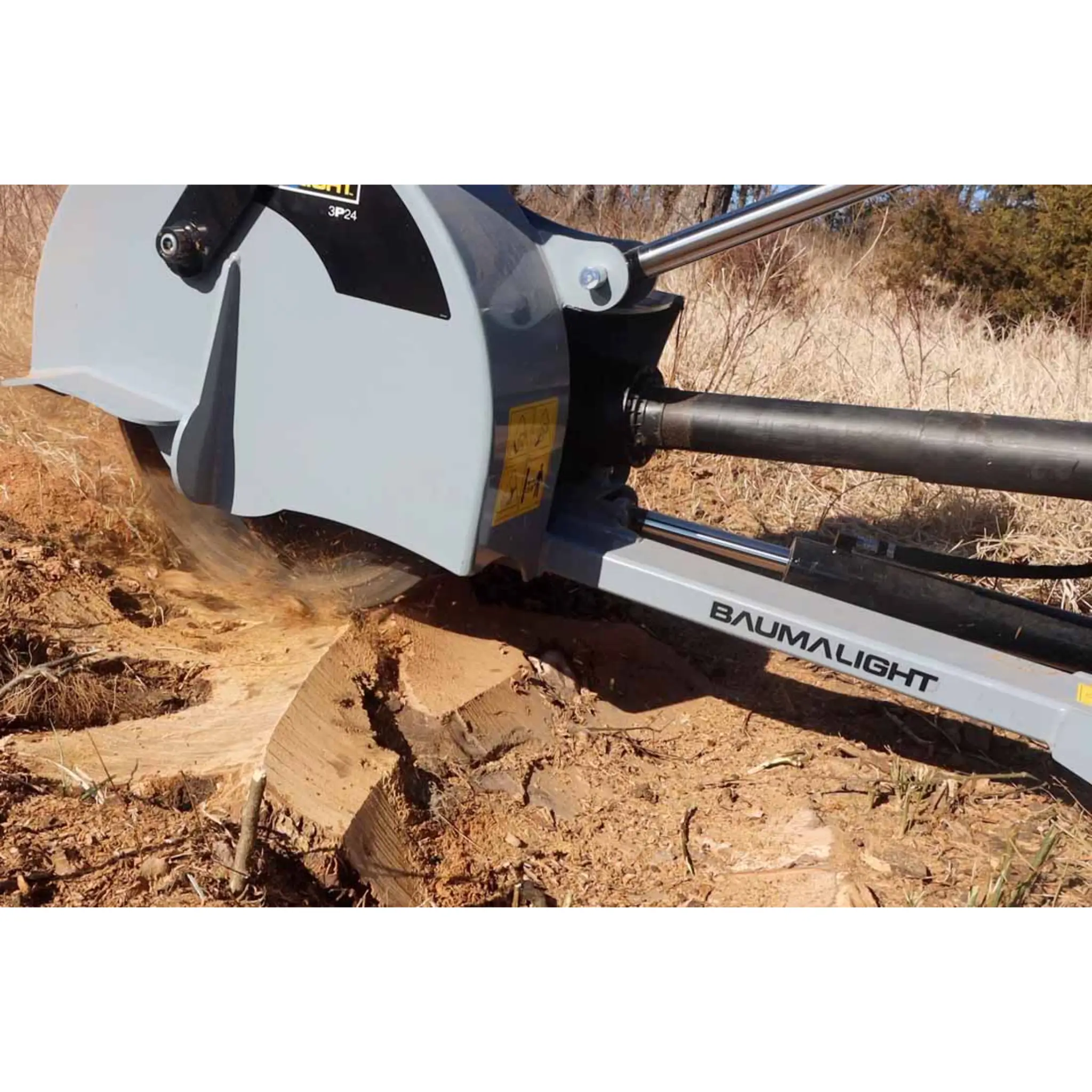

"Efficiency" can be summarized with quickness and power as stumps disappear with the Baumalight 3P24 PTO Stump Grinder. Engineered for tractors with 30-60 HP, this robust grinder features a 24" rotor with 34 carbide teeth for optimal grinding prowess. With a substantial 803 Ft.-Lbs of torque at 810 RPM, and dual hydraulic remote compatibility, it ensures deep, precise cuts—18" above and 8" below ground.
The 3P24 PTO stump grinder is designed for tractors equipped with a 30–50 horse power motor allowing you to grind into stumps with a 24" rotor carrying 34 replaceable carbide teeth.
The cutting and lifting cylinders are powered by your tractor’s hydraulic remotes. Two remote hydraulics are required, if you only have one set then we offer a S1050 valve kit to ship with the stump grinder.
The heavy duty base provides a solid base for grinding, reducing stress on the tractor. The flow control lets you set the optimal grinding sweep speed for the best efficiency. This versatile PTO Stump Grinder has a cutting depth of 18" above ground and 8" below ground.
With direct drive from the engine, all the way through the heavy duty gear box to the teeth, a stump grinder on the PTO of a tractor is the most efficient way to use a stump grinder for lawn care or fence row clearing. The rugged gear box transfers power from the tractor’s PTO to the rotor creating 803 Ft.-Lbs of torque and turning the rotor and hungry teeth at 810 RPM.A rotor of ¾ inch thick steel works as a back bone for the stump blaster cutting system.
Spring bushings made of high grade chrome-vanadium AISI 6150 spring steel are provided on all main pivot points. A stump of 30" width and 12" depth can be ground in 10 mins with a 60HP tractor, with 40HP it takes around 12 mins.
An optional control is mounted on an adjustable arm. The control is great for smaller tractors with limited HP for better cutting control and for tractors with only one remote.
| Stump Grinder |
|
|
|
|
|
| Recommended HP Size | 20-45 | 20-45 | 25-55 | 45-80 | 60-120 |
| Maximum Engine HP | 45 | 50 | 58 | 85 | 125 |
| Maximum PTO HP | 35 | 40 | 50 | 75 | 115 |
| Transmission | Hydrostatic only | Hydrostatic only | Any | Any | Any |
| Hydraulic GPM | -- | -- | 5–20 | 5–20 | 5–20 |
| Rotor Size | 16" | 24" | 24" | 34" | 34" |
| Number of Teeth | 12 | 34 | 34 | 52 | 52 |
| Tooth Part number | H3000 | S1000 | S1000 | S1000 | S1000 |
| Tooth Construction | High speed round tooth | Carbide steel bolt-in | Carbide steel bolt-in | Carbide steel bolt-in | Carbide steel bolt-in |
| Cutting Wheel Speed | 540 RPM | 540 RPM | 810 RPM | 810 RPM | 1000 RPM |
| Cutting Height - Above Ground | 10" | 10" | 18" | 25" | 25" |
| Cutting Depth - Below Ground | 5" | 6" | 8" | 14" | 14" |
| Maximum Cutting Depth - Per Pass | 2" | 5" | 6" | 9" | 9" |
| Maximum Horizontal Cut | 18" | 22" | 22" | 32" | 32" |
| Swing Arc | 0° | 0° | 65° | 65° | 65° |
| Hub Torque | 664 Ft.-Lbs. | 885 Ft.-Lbs. | 885 Ft.-Lbs. | 1475 Ft.-Lbs. | 1327 Ft.-Lbs. |
| Over Torque Protection | Slip clutch | Slip clutch | Slip clutch | Slip clutch | Slip clutch |
| Hitch | Cat I | Cat I | Cat I or II | Cat II | Cat II |
| Quick hitch compatibility | Yes | Yes | No | No | No |
|
|
0 | 0 | 1 or 2 | 1 or 2 | 1 or 2 |
| Requires 12 Volt DC | No | No | No | No | No |
| Input Speed | 540 | 540 | 540 | 540 | 1000 |
| Unit Weight (Shipping) Lbs. | 360 | 450 | 920 | 1231 | 1280 |
| Width (Shipping) | 36" | 36" | 42" | 48" | 48" |
| Length (Shipping) | 30" | 30" | 49" | 54" | 54" |
