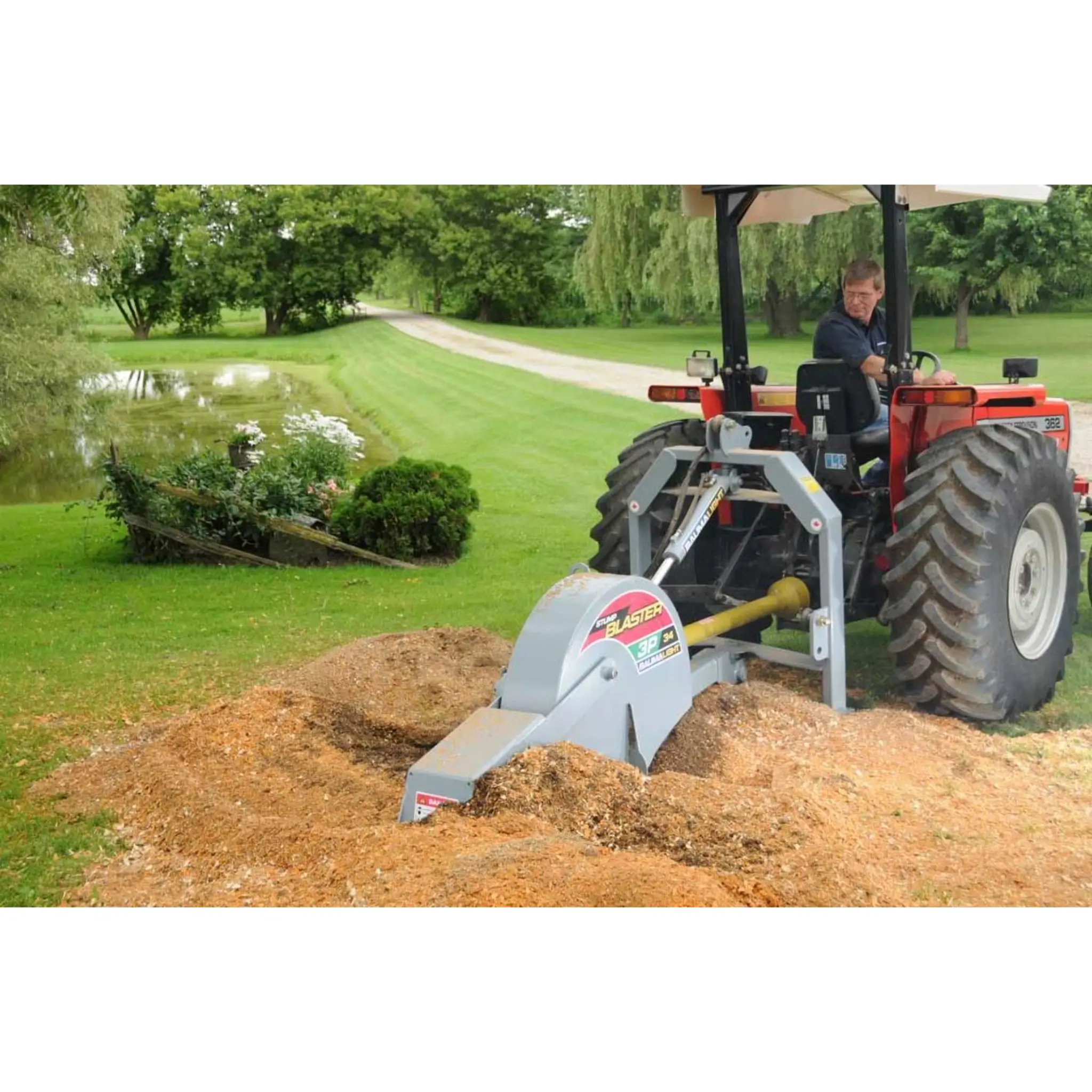

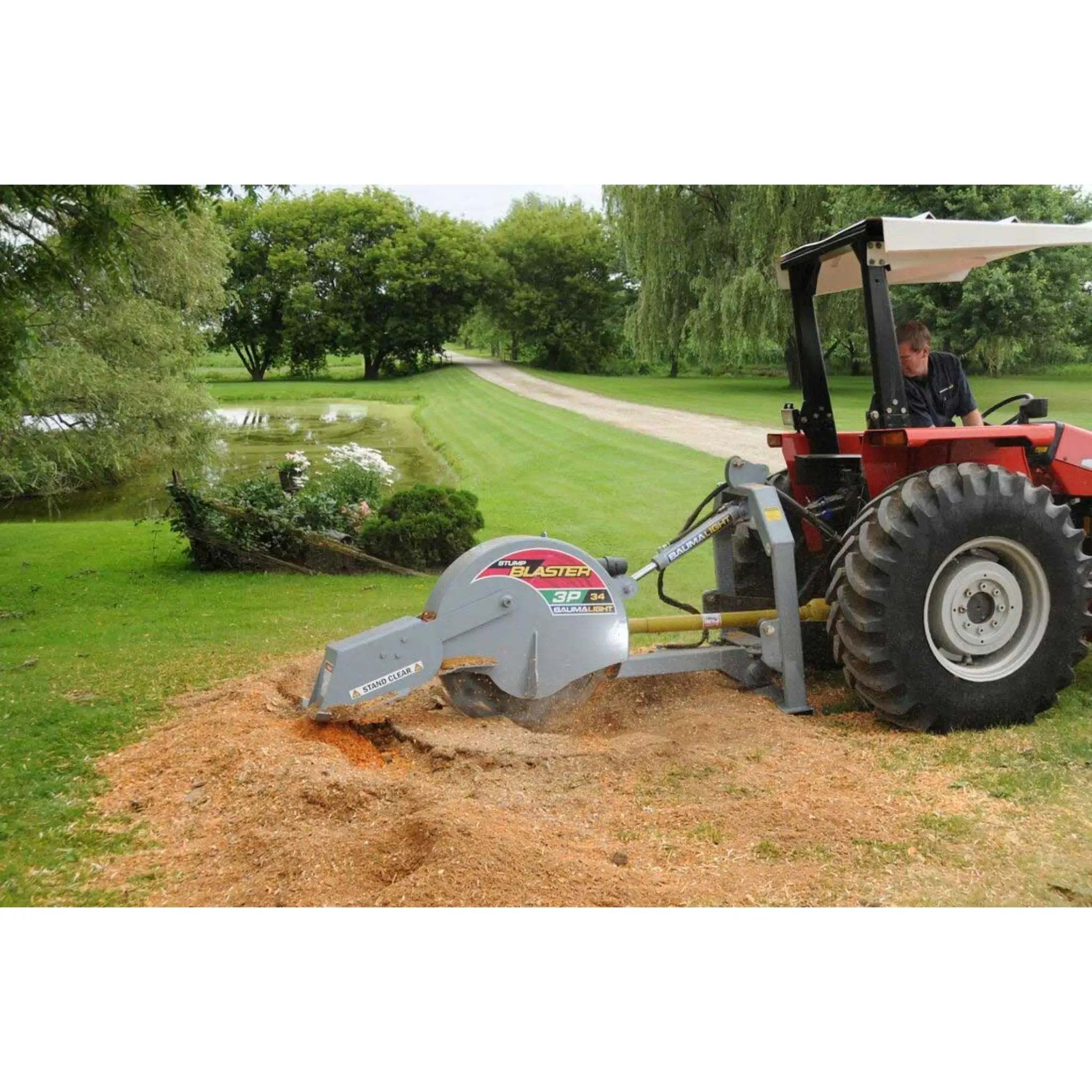

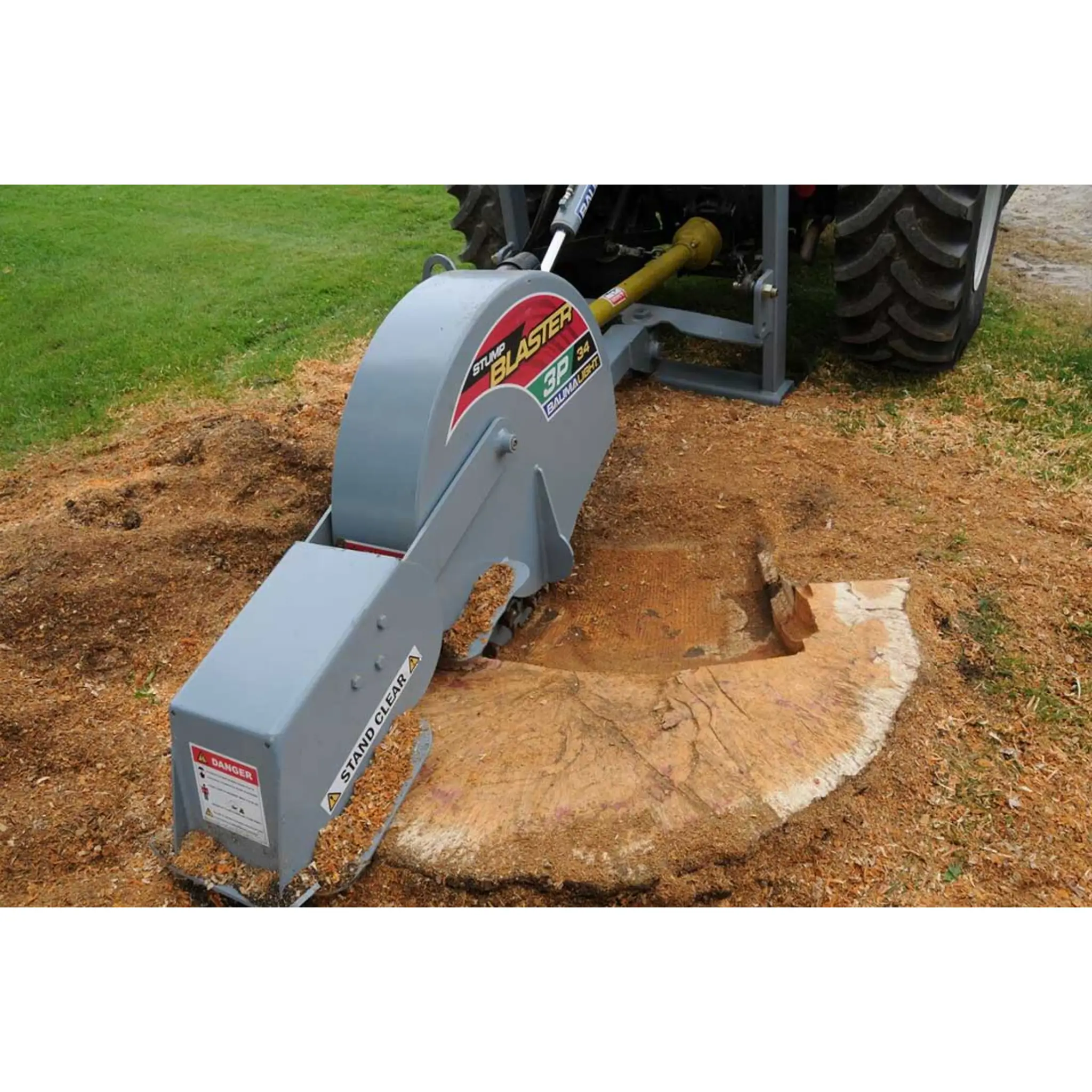

Baumalight 3P34 Stump Grinder For Tractors

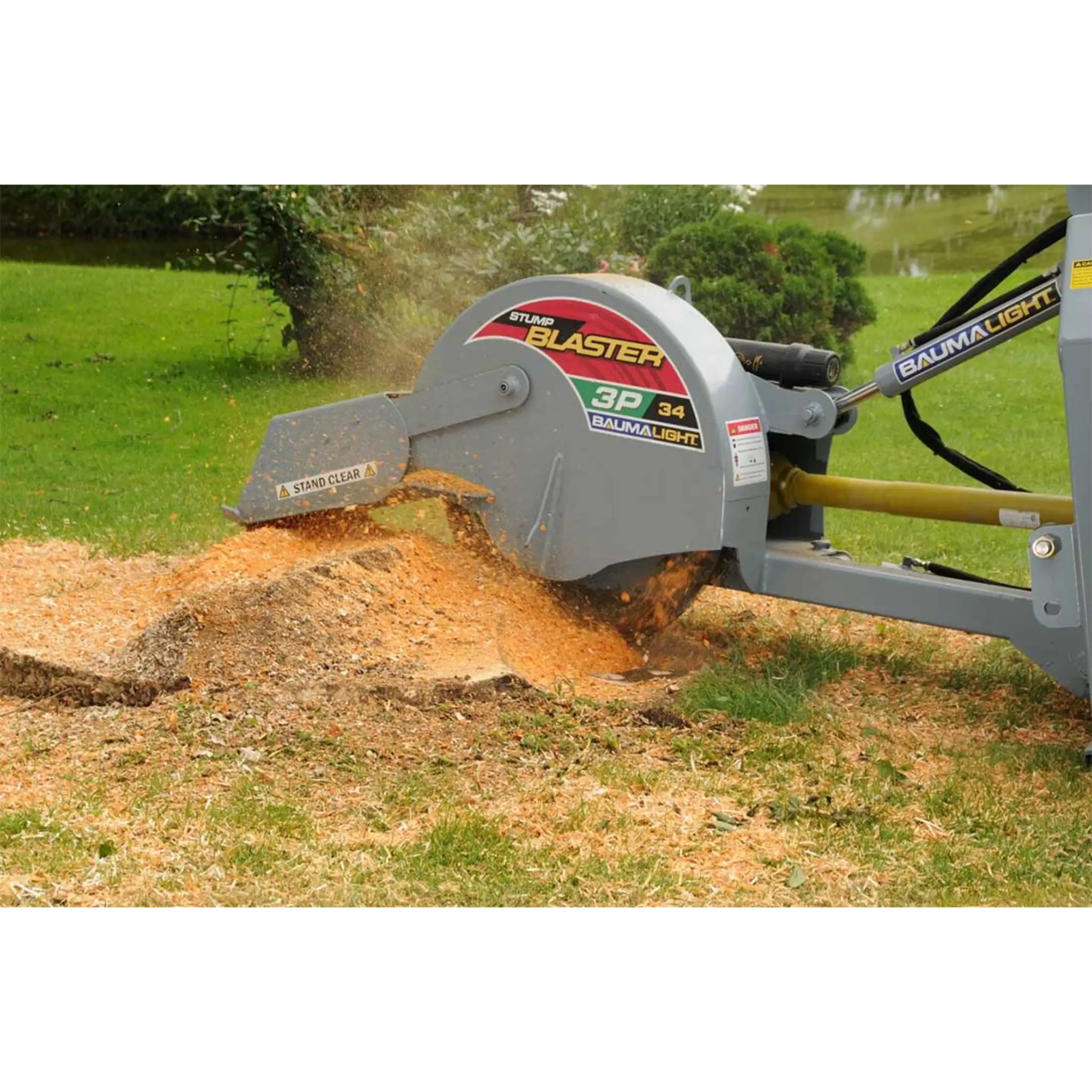

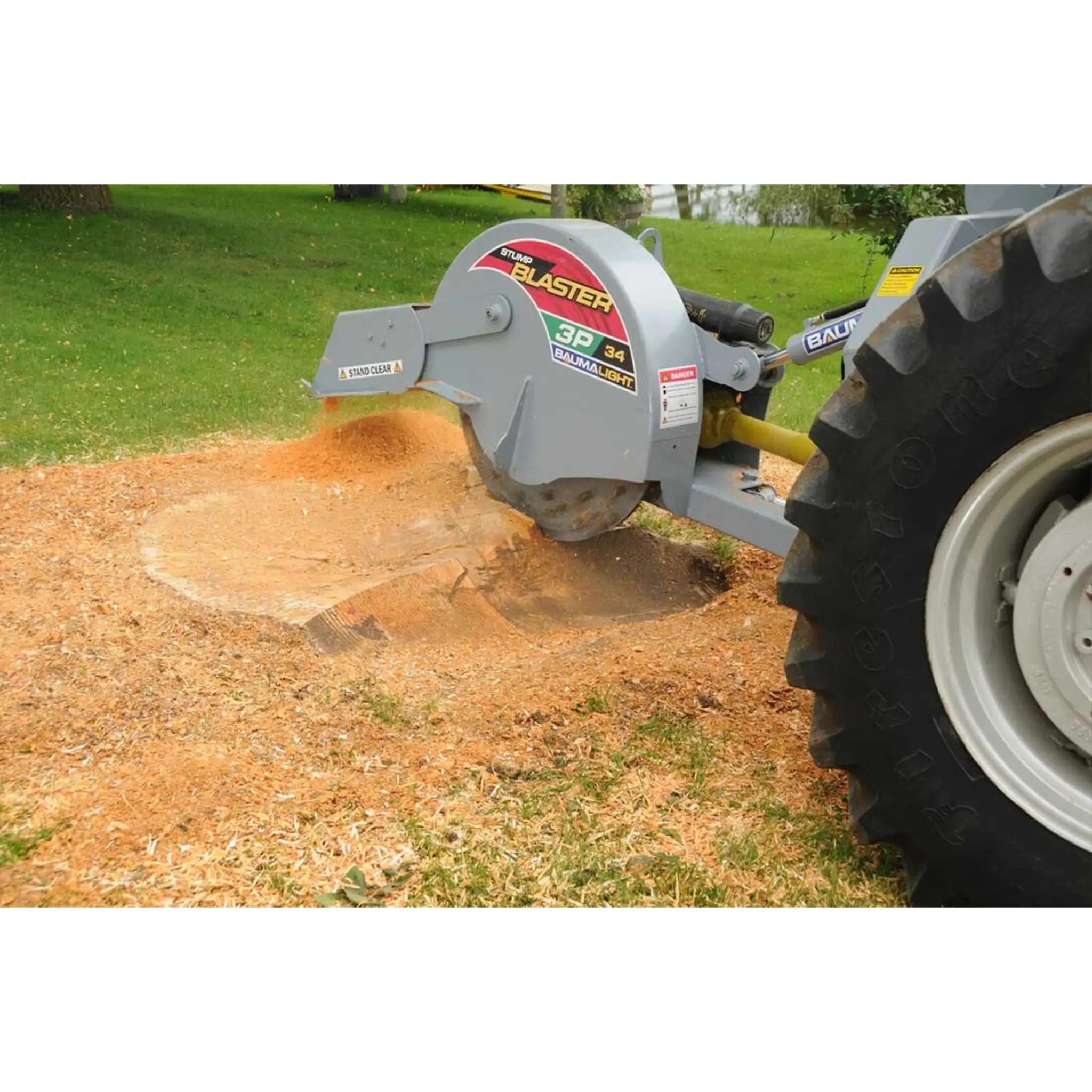

Make stubborn stumps disappear with ease with the Baumalight 3P34 Stump Grinder, designed for tractors with 50–80 HP. Featuring a robust 34" rotor with 54 replaceable carbide teeth, this model grinds through stumps with precision and power. It boasts a rugged gearbox that handles up to 80 HP and delivers 803 ft/lbs of torque, efficiently grinding a 30" stump in just minutes.

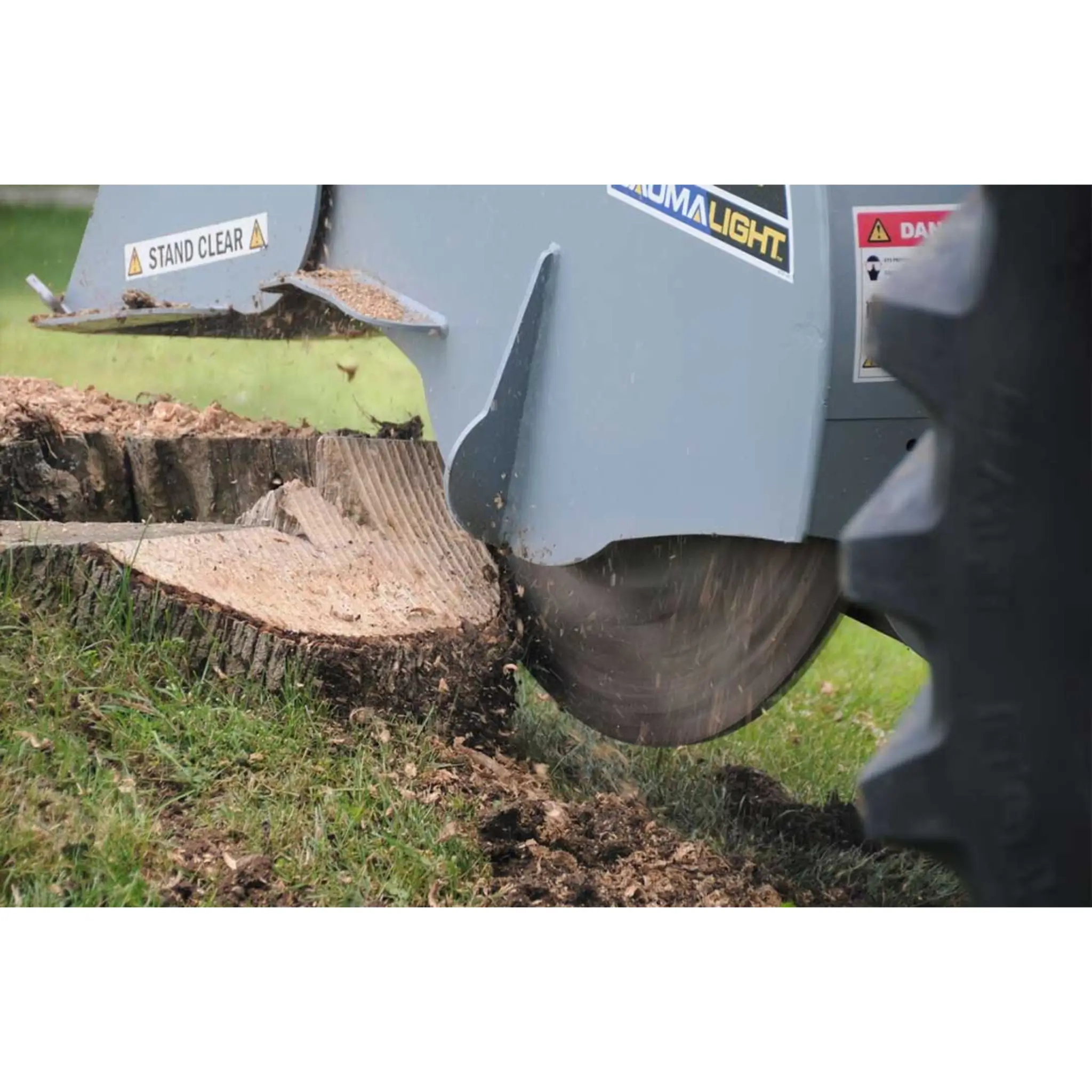

The 3P34 PTO stump grinder is designed for tractors equipped with a 50–80 horse power motor allowing you to grind into stumps with a 34" Rotor carrying 54 replaceable carbide teeth. The Stump Blaster’s carbide teeth extend a full 1-¼ inches from the rotor. This prevents chips and mulch from getting plugged. The rugged gear box takes up to 80 HP and develops 803 ft/lbs of stump destroying torque.

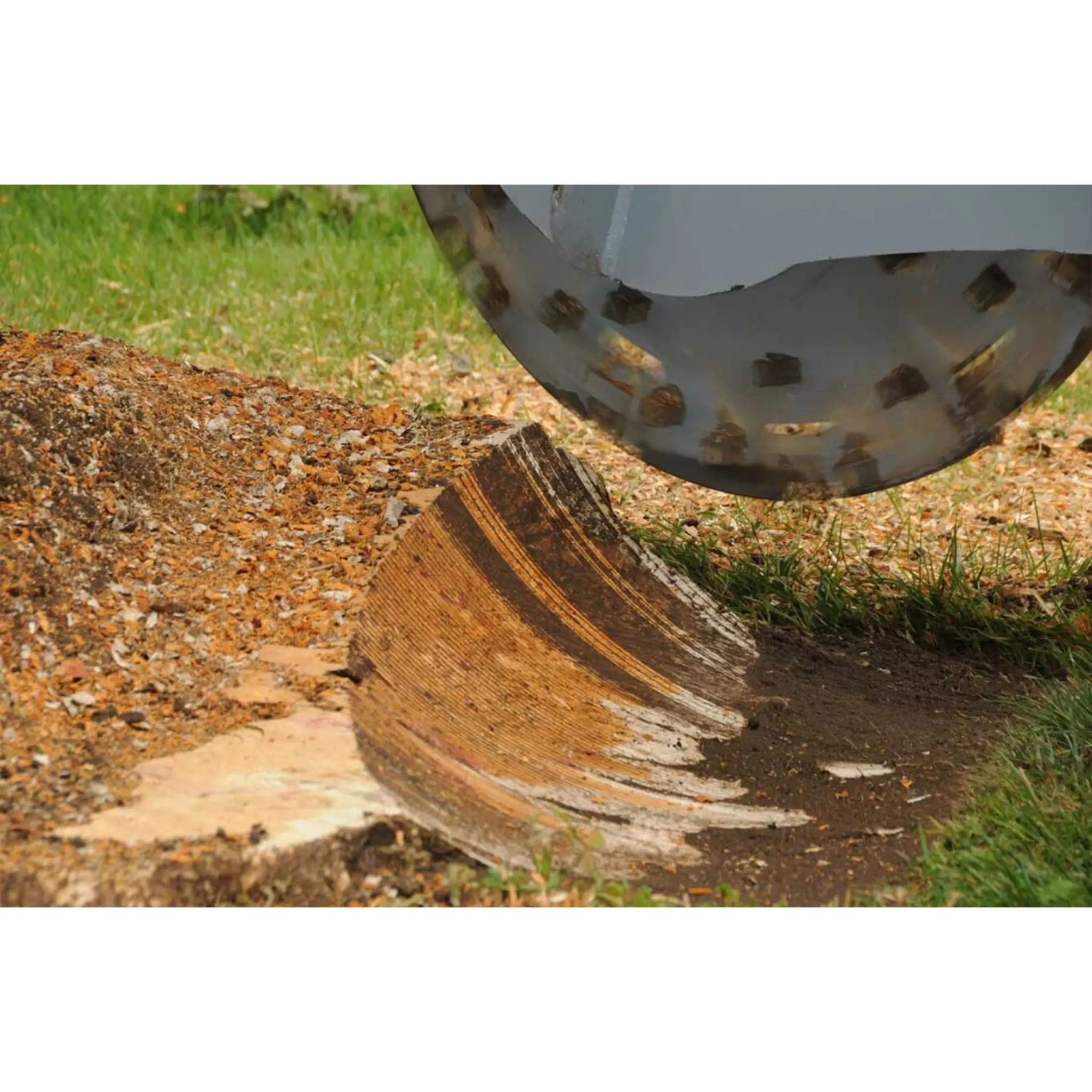

A stump of 30" width and 12" depth can be ground in 4 mins with a 80HP tractor, with 70HP it takes around 5 mins and 60 HP takes 6 mins to finish the work. The massive ¾" thick steel rotor provides the back bone for the Stump Blaster cutting system. It’s the anchor for the carbide tipped teeth. For smooth operation it’s important that the rotor remains solid, with no flexing.

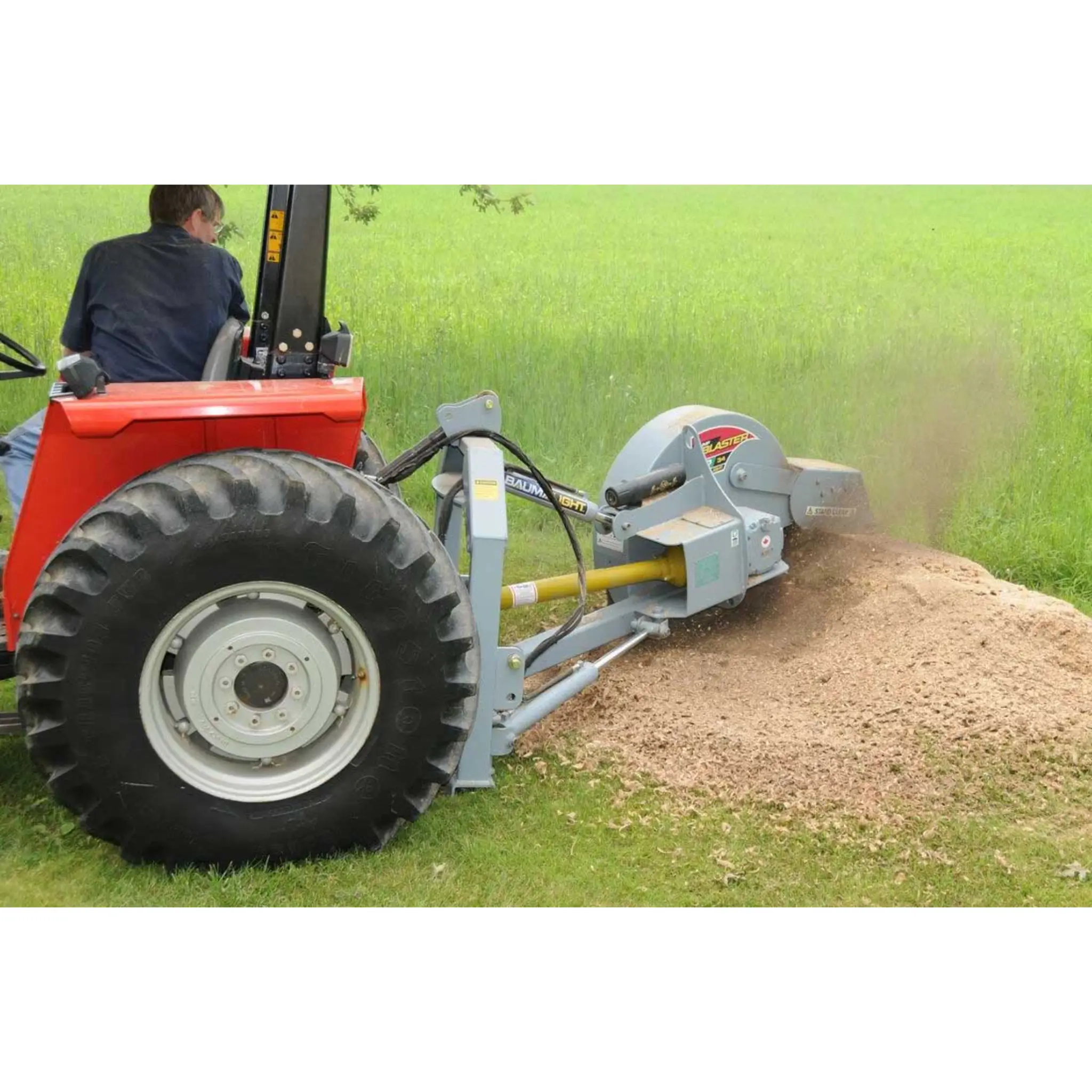

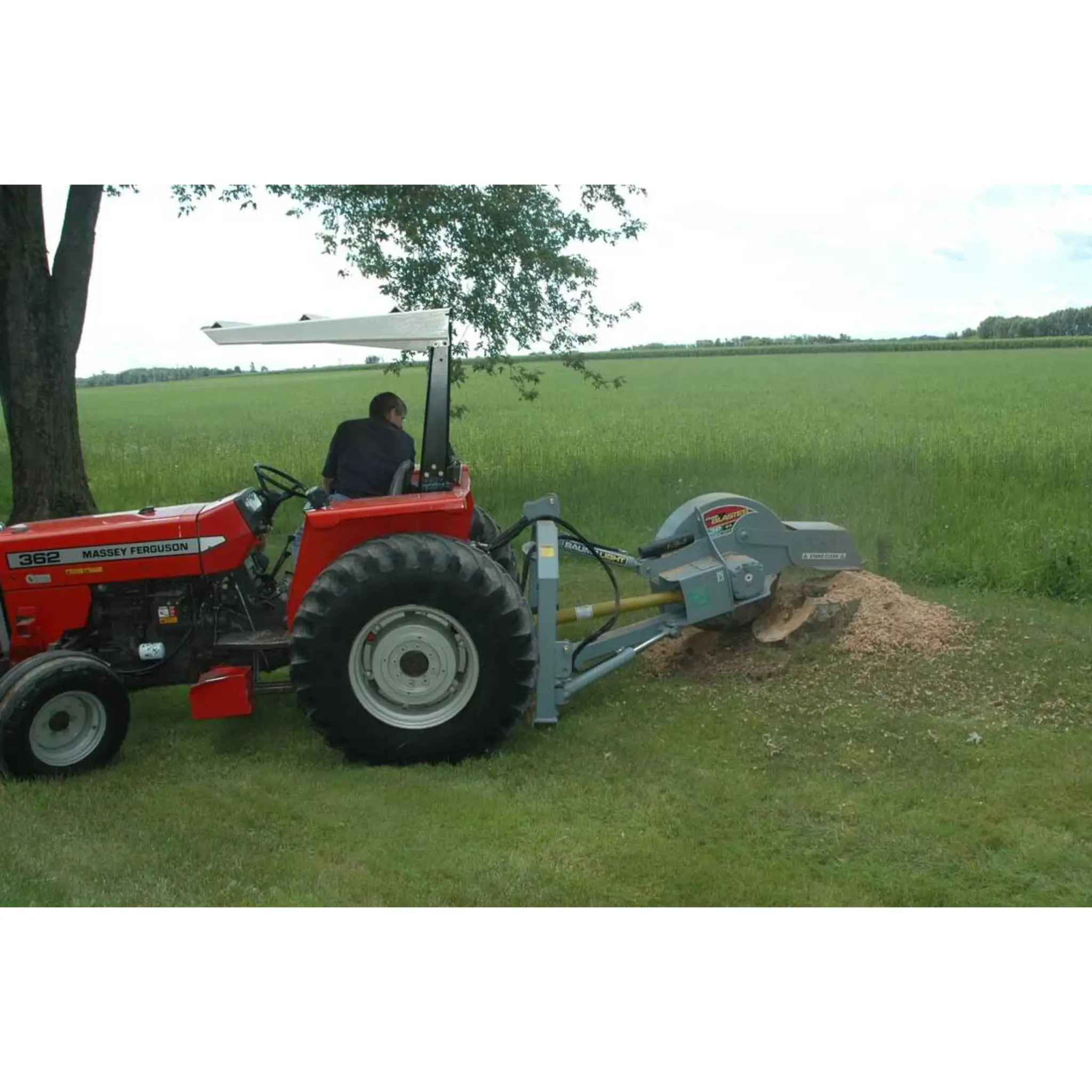

The rugged rotor also provides the Stump Blaster with the extra momentum needed when the grinding is tough, making sure the Stump Blaster can power through the hardest stumps. Designed for Cat 2 3PH and 540 PTO this versatile stump grinder has a cutting depth of 25" above ground and 14" below ground. With direct drive from the engine, all the way through the heavy duty gear box to the teeth, a stump grinder on the PTO of a tractor is the most efficient way to use a stump grinder for lawn care or fence row clearing.

Spring bushings made of high grade chrome-vanadium AISI 6150 spring steel are provided on all main pivot points. The swing cylinder gives the operator a 65 degree grinding range without moving the tractor. The heavy duty base provides a solid base for grinding. This allows for more consistent grinding performance and reduces the stress on your tractor.

Stump Grinder	1P14	1P24	3P24	3P34	3P40
Recommended HP Size	20-45	20-45	25-55	45-80	60-120
Maximum Engine HP	45	50	58	85	125
Maximum PTO HP	35	40	50	75	115
Transmission	Hydrostatic only	Hydrostatic only	Any	Any	Any
Hydraulic GPM	--	--	5–20	5–20	5–20
Rotor Size	16"	24"	24"	34"	34"
Number of Teeth	12	34	34	52	52
Tooth Part number	H3000	S1000	S1000	S1000	S1000
Tooth Construction	High speed round tooth	Carbide steel bolt-in	Carbide steel bolt-in	Carbide steel bolt-in	Carbide steel bolt-in
Cutting Wheel Speed	540 RPM	540 RPM	810 RPM	810 RPM	1000 RPM
Cutting Height - Above Ground	10"	10"	18"	25"	25"
Cutting Depth - Below Ground	5"	6"	8"	14"	14"
Maximum Cutting Depth - Per Pass	2"	5"	6"	9"	9"
Maximum Horizontal Cut	18"	22"	22"	32"	32"
Swing Arc	0°	0°	65°	65°	65°
Hub Torque	664 Ft.-Lbs.	885 Ft.-Lbs.	885 Ft.-Lbs.	1475 Ft.-Lbs.	1327 Ft.-Lbs.
Over Torque Protection	Slip clutch	Slip clutch	Slip clutch	Slip clutch	Slip clutch
Hitch	Cat I	Cat I	Cat I or II	Cat II	Cat II
Quick hitch compatibility	Yes	Yes	No	No	No
No. of Remotes Required - Hydraulic	0	0	1 or 2	1 or 2	1 or 2
Requires 12 Volt DC	No	No	No	No	No
Input Speed	540	540	540	540	1000
Unit Weight (Shipping) Lbs.	360	450	920	1231	1280
Width (Shipping)	36"	36"	42"	48"	48"
Length (Shipping)	30"	30"	49"	54"	54"
